Sears 917.250551 - Manual (Page 43)

REPAIR PARTS

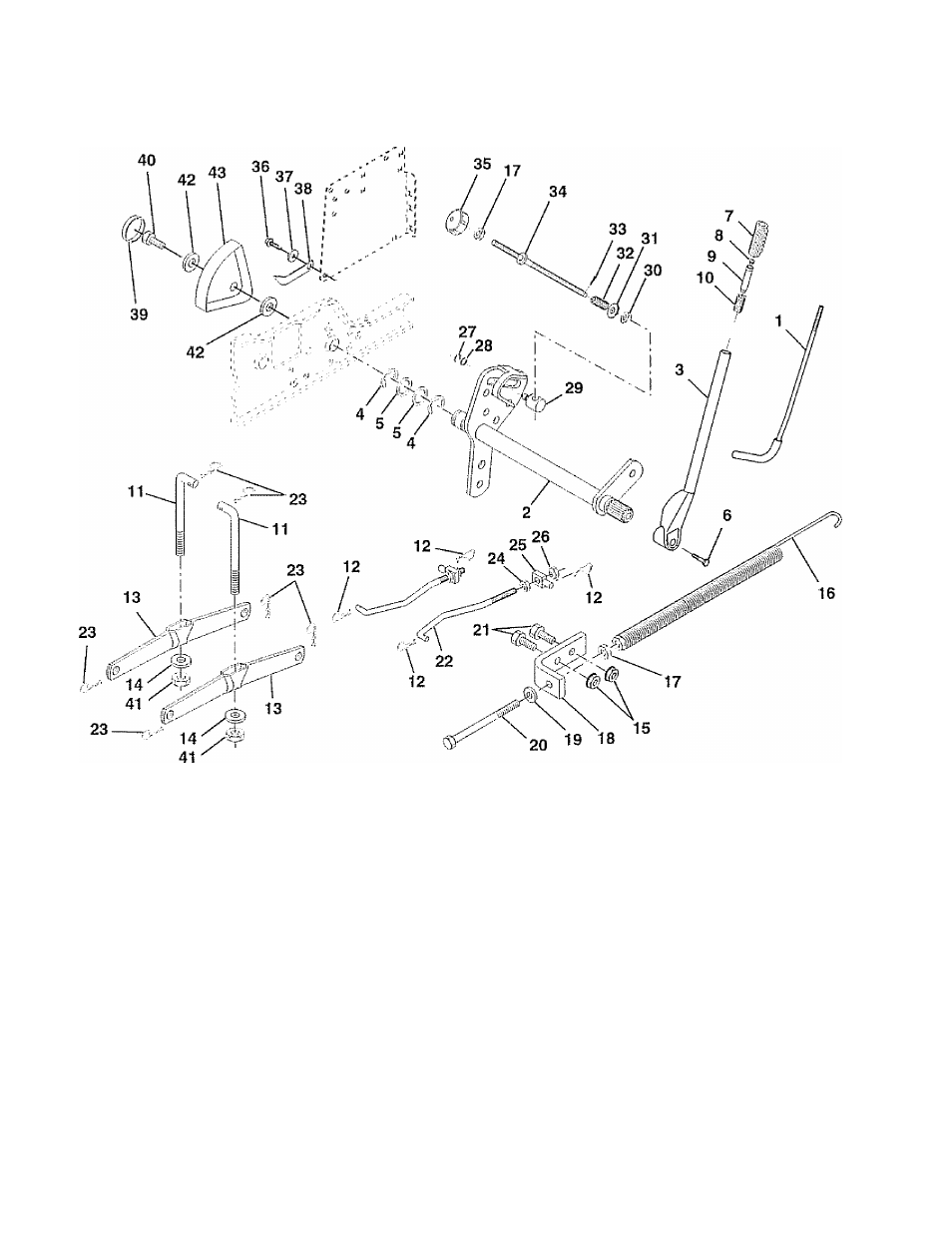

LIFT ASSEMBLY
TRACTOR - MODEL NUMBER 917.250551
KEY PART KEY PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION
1 121006X Rod Asm., Lever 24 73350800 Nut, Jam Hex 1/2-13 Unc
2 145542 Shaft Asm.,, Lift Vgt 25 130171 Trunnion
3 121002X Lever Asm., Lift Rh 26 73800800 Nut, Lock W/Wsh 1/2-13 Unc
4 12000022 E'Ring Truarc #5133-87 27 12000037 Ring, Klip #T5304'37
5 19292016 Washer 29/32 x 1-1/4 x 16 Ga. 28 19151216 Washer 15/32 x 3/4 x 16 Ga.
6 74780624 Bolt, Fin Hex 3/8-16x1-1/2 29 11081 OX Trunnion, Dp Stop Dbl Thds Pit
7 125631X Grip, Handle Fluted 30 110807X Nut, Special
8 122365X Button, Plunger 31 19131016 Washer 13/32 x 5/8 x 16 Ga.
9 122364X Plunger, Lever Lift 32 137150 Spring, Compression Inf Hgt
10 2876H Spring 2-1/8" 33 76020308 Pin, Cotter 3/32 X 1/2
11 146704 Link Lift 34 137167 Rod, Adj Lift
12 3146R Retainer, Spring 35 138057 Knob, Inf 3/8-16 Unc
13 139868 Arm, Suspension Vgt 36 17490612 Screiw, Thdrol 3/8-16 x 3/4
14 140302 Bearing 37 120529X Washer, Nylon
15 73680600 Nut. Crownlock 3/8-16 Unc 38 123933X505 Pointer, Pnt Height Indicator
16 674A247 Spring Asm., Assist Lift 39 123935X Plug, Hole
17 73350600 Nut, Hex Jam 3/8-16 Unc 40 17490512 Screw Hex Wsh 5/16-18 x 3/4
18 143363 Bracket, Spring Assist 41 73540600 Nut, Crownlock 3/8-24
19 19131316 Washer 13/32 x 13/16 x 16 Ga. 42 19112410 Washer 11/32 x 1 -1/2 x 10 Ga
20 5328J Bolt, Adjust Spring Assist 43 123934X Scale, Indicator Height
21 74760616 Bolt, Fin Hex 3/8-16x1
22 127218 Link, Front NOTE: All component dimensions given in U.S. incf
23 4939M Retainer, Spring 1 inch = 25.4 mm
