Sears 917.250551 - Manual (Page 42)

REPAIR PARTS

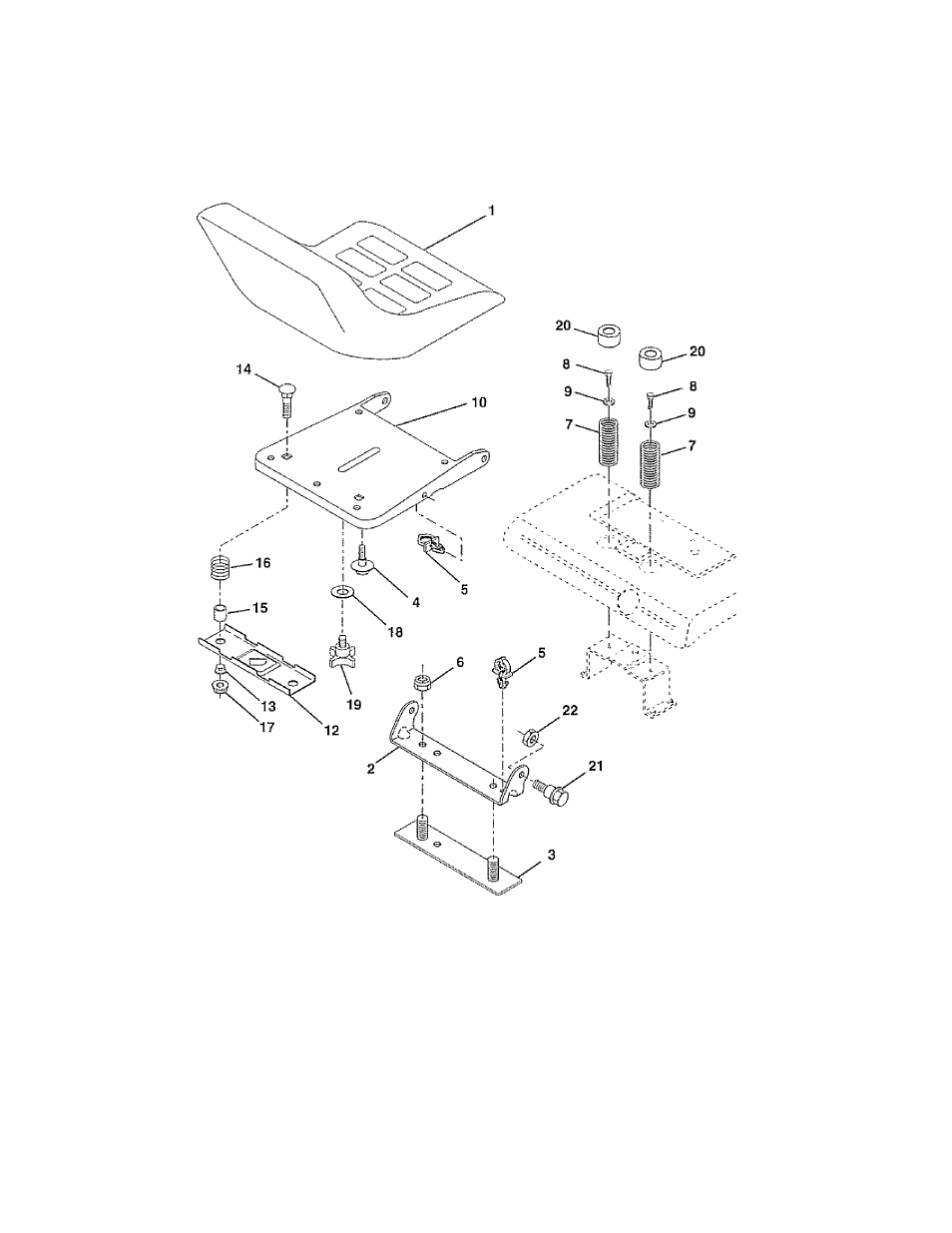

SEAT ASSEMBLY
TRACTOR - - MODEL NUMBER 917.250551
: \
KEY
NO. PART
NO.
DESCRIPTION
KEY
NO. PART
NO.
DESCRIPTION
1 140124 Seat 14 72050411 Bolt, Carriage 1/4-20 X 1-3/8
2 140551 Bracket, Pivot Seat 15 121249X Spacer, Split
3 140675 Strap, Fender 16 123740X Spring, Cprsn
4 127018X Bolt, Shoulder 5/16-18 x.62 17 123976X Nut, Lock 1/4 Lge Fig Gr. 5
5 145006 Clip. Push in, Hinged 18 19171912 Washer 17/32 x 1 -3/16 x 12 Ga.
6 73680600 Nut, Crownlock 3/8-16 Unc 19 120068X Knob, Seat 1/2-13 Unc
7 124181X Spring, Seat Cprsn 20 124238X Cap, Spring Seat
8 17490508 Screw, Thdroi 5/16-18 X 1/2 21 139888 Bolt, Shoulder 5/16-18
9 19131614 Washer 13/32X 1 X14Ga. 2.2. 73680500 Nut, Crownlock 5/16-18 Unc
10 140552 Pan, Seat
12
13
121246X
121248X Bracket, Mounting Switch
Bushing, Snap
NOTE: All component dimensions given in U S. inches
1 inch = 25.4 mm
