Sears 917.250551 - Manual (Page 31)

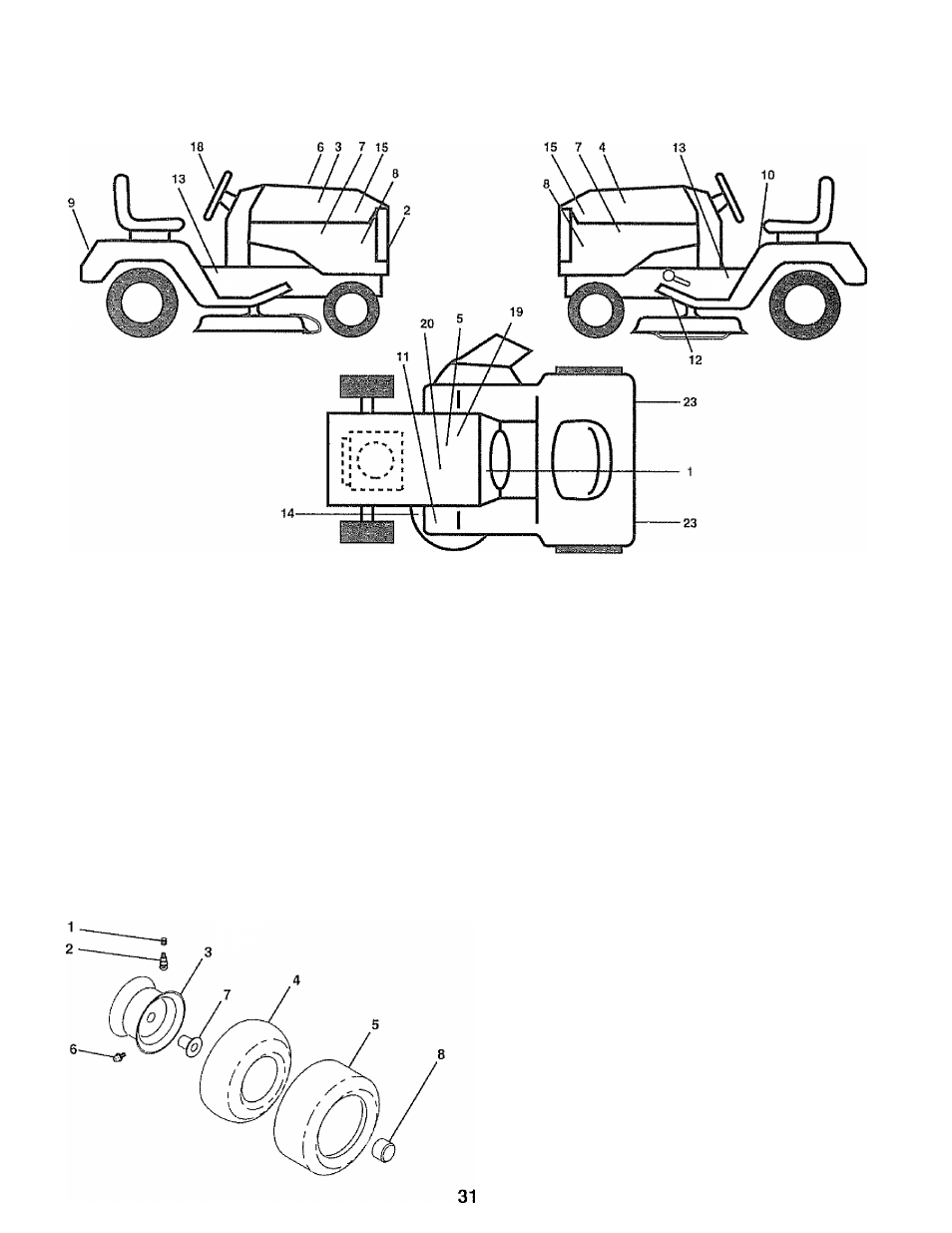

DECALS
REPAIR PARTS
TRACTOR - - MODEL NUMBER 917.250551
KEY PART KEY PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION
1 138955 Decal, Operating instruction 13 148957 Decal, Chassis, 6 Speed/50"
2 146708 Decal, Grill 14 139346 Decal, V-Belt Schematic
3 146705 Decal, Hood, Craftsman, RH 15 148896 Decal Hood Insert
4 146706 Decal, Hood, Craftsman, LH 18 146710 Decal, insert Strg
5 145003 Decal, Battery DNGR/PSN SRS 19 138047 Decal, Battery
ENG 20 146833 Decal, Battery Wet Front
6 133644 Decal, Maintenance 23 106202X Reflector. Taillight
7 138048 Decal, Side Panel . . 138311 Decal, Handle Lft Height Adjust
8 142241 Decal, Side Panel (Lift Handle)
9 146709 Decal, Fender, Craftsman
- - 145245 Pad, Footrest
10 137537 Decal, Caution 145247 Fastener, Pop-ln Footrest
11 4900J Decal, Clutch/Brake 148894 Manual, Owner's (Eng)
12 146047 Decal, V-Beit Drive Schematic 148895 Manual, Owner's (Span)
WHEELS & TIRES KEY PART
NO. NO.
1 59192
2 65139
3
148736X427
148738X427
4 8134H
7154J
5 148741
148739
6 278H
6856M
7 9040H
8 104757X
-- 144334
DESCRIPTION
Cap, Valve, Tire
Stem, Valve
Rim Assembly, Front
Rim Assembly, Rear
Tube, Front (Service Item Only)
Tube, Rear (Service Item Only)
Tire, Front
Tire, Rear
Fitting, Grease (Front Wheel Only)
Fitting, Grease
Bearing, Flange (Front Wheel Only)
Cap, Axle (Front Wheel Only)
Sealant, Tire (10 oz. Tube)
NOTE: Ail component dimensions given in U.S.. inches
1 inch = 25.4 mm
