SEARS CRAFTSMAN 9 H.P. ENGINE MODEL NO. 143.959001
Repair Parts

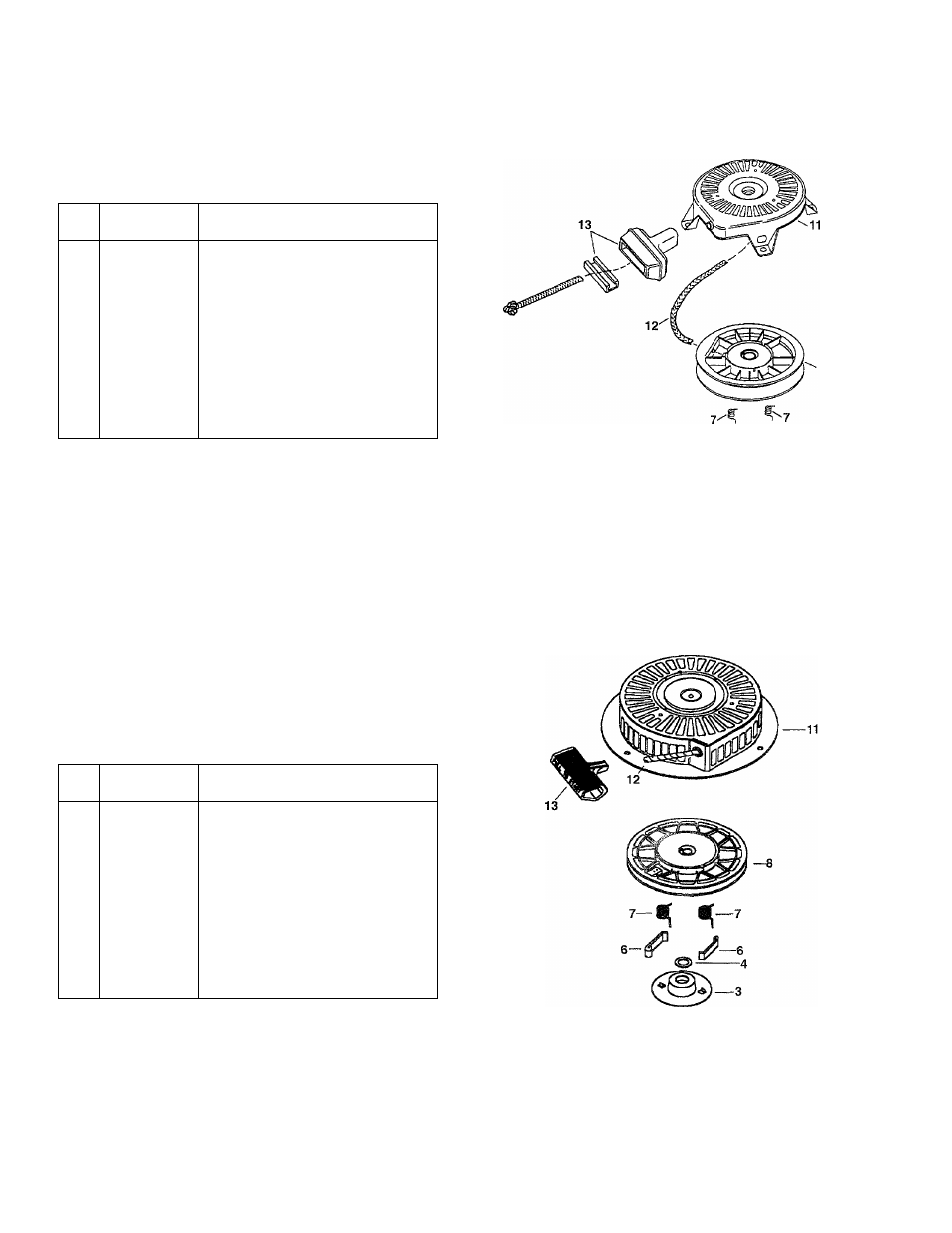

PARTS LIST FOR RECOIL STARTER
KEY
NO.
PART
NO.
DESCRIPTION
—
590671
Recoil Starter
1
590599A
Spring Pin (Incl. 4)
2
590600
Washer
3
590679
Retainer
4
590601
Washer
5
590678
Brake Spring
6
590680
Starter Dog
7
590412
Dog Spring
8
590681
Pulley & Rewind Spring Ass’y.
11
590683
Starter Housing Ass’y.
12
590456
Starter Rope (114" x 11/64" Dia.)
13
590387
Starter Handle
'-6
4
'3
'^2
''1
PARTS LIST FOR RECOIL STARTER (OPTIONAL)
KEY
NO.
PART
NO.
DESCRIPTION
—
590704
Recoil Starter
1
590599A
Spring Pin (Incl. 4)
2
590600
Washer
3
590696
Retainer
4
590601
Washer
5
590697
Brake Spring
6
590698
Starter Dog
7
590699
Dog Spring
8
590700
Pulley & Rewind Spring Ass’y.
11
590705
Starter Housing Ass’y.
12
590535
Starter Rope (98" x 9/64" Dia.)
13
590701
Starter Handle
O-------- 2
----1
