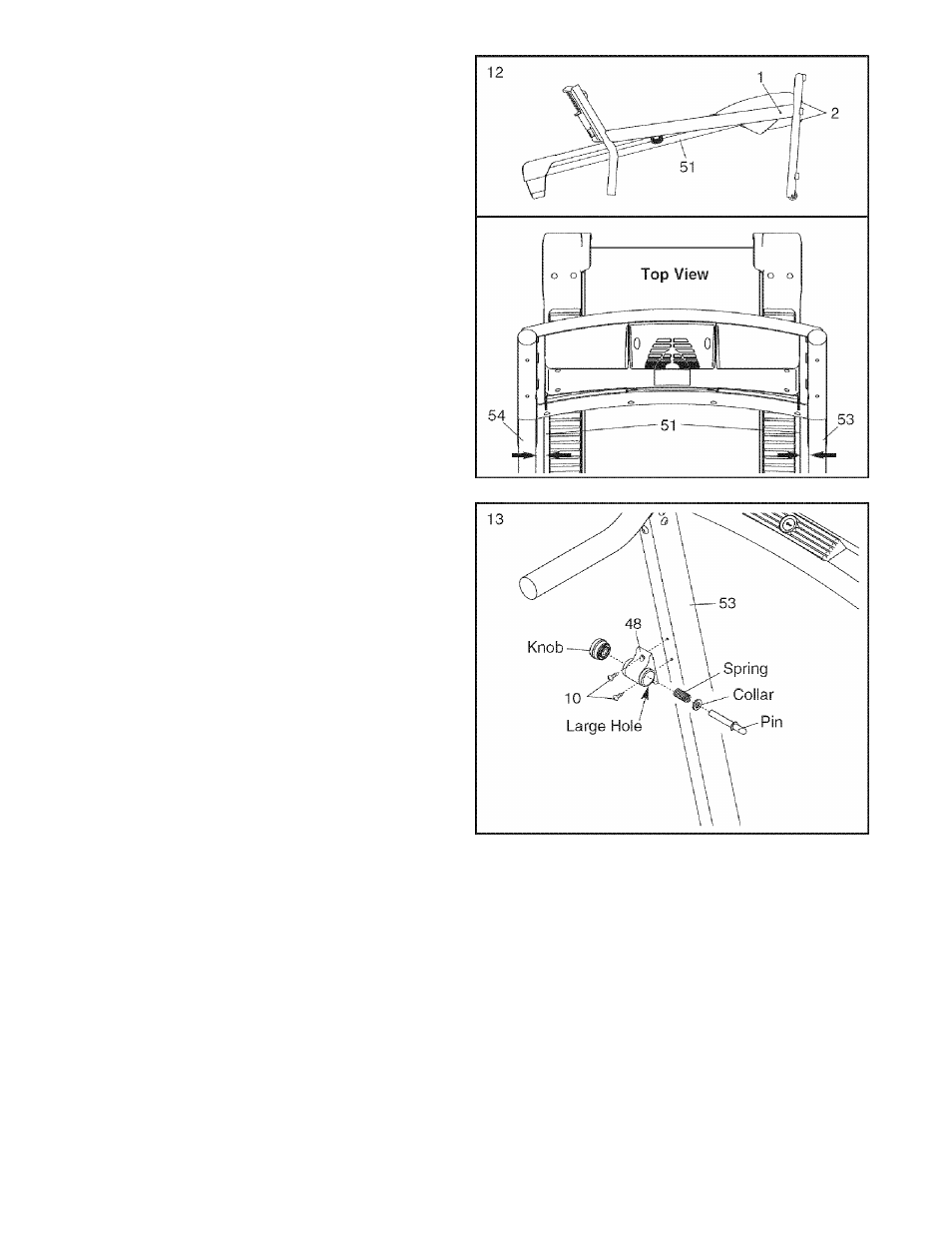

12. See the lower drawing. Position the Uprights

(53, 54) so that the Frame (51) is centered be
tween them.

Firmly tighten the two Ml 0 x 60mm Bolts (1)

and the four MIO x 75mm Bolts (2). Be careful

not to overtighten the MIO x 60mm Bolts.

13. Attach the Latch Flousing (48) to the Left

Upright (53) with two M4.2 x 19mm Screws (10);

start both Screws before tightening them.
Make sure that the large hole in the Latch

Housing is on the indicated side.

Remove the knob from the pin. Make sure that

the collar and the spring are on the pin. (Note: If
there are two collars, place one on each side of
the spring.) Insert the pin into the Latch Housing
(48). Then, tighten the knob onto the pin.

14. Make sure that all parts are properly tightened before you use the treadmill. Keep the included hex keys

in a secure place. One hex key is used to adjust the walking belt (see page 20). To protect the floor or carpet,
place a mat under the treadmill.
