CONTENTS OF HARDWARE PACK

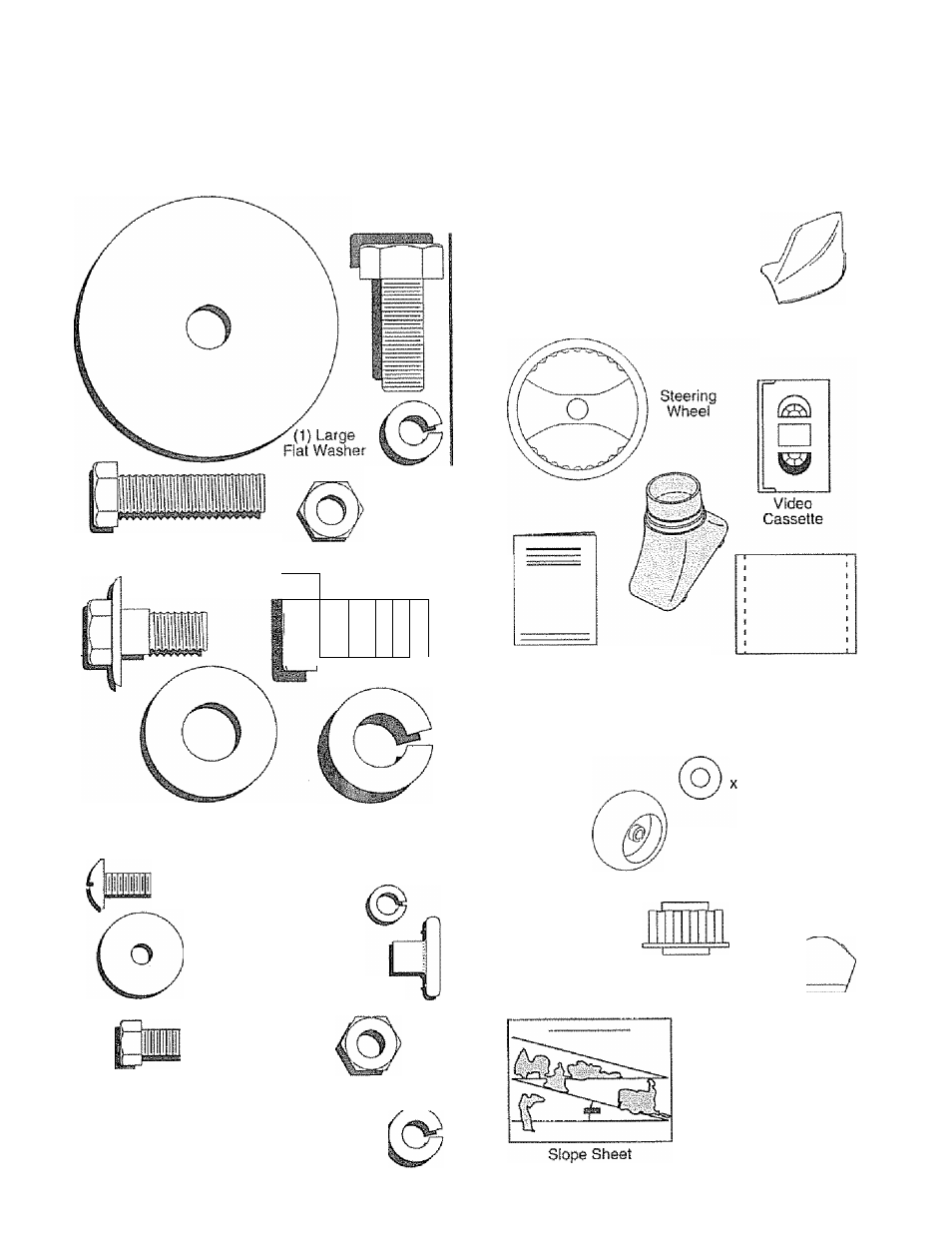

Parts Bag contents shown full size
(1) Hex Bolt
3/8-16x1
(1) Hex Bolt 5/16-18
X
1-1/4
(1) Lock
washer 3/8
(1) Locknut
5/16-18
(1) Shoulder
Boll 5/16-18
'1/2-13
X l
1 III 1 1
(1) Washer 17/32x
1-3/16 X 12 Gauge
{1 ) Lock
Washer 1/2
Д (2) Screws #10x5/8
(2) Lock Washers #10
(2) Washers
3/16
X
3/4
X
16 Gauge
(2) Weld Nuts #10
(2) Hex Bolts 1/4-20x3/4
(2) Hex Nuts 1/4-20
5
3auge j
(2) Lock Washers 1/4
(2) Washers
9/32 X 5/8x16 Gauge
Parts packed separately in carton
'
¡ffs
-j •
s
-JÍ
j
s
'
í
S"" «i *-''4» V
a
:
л
I.
“"SI
M
Seat
Mulcher
Plate
Manual
Steering
Boot
Parts Bag
Parts bag contents not shown full size
{2) Shoulder
Bolts
В
О
(2) Washers 3/8
7/8x14 Gauge
(2) Center-
vr/ lock Nuts
(2) Gauge
Wheels
Steering
Extension
Shaft
(2) Keys
Steering Wheel
Adapter
Steering
Wheel
insert
Ц]
(2) Latch Hook
Assemblys
