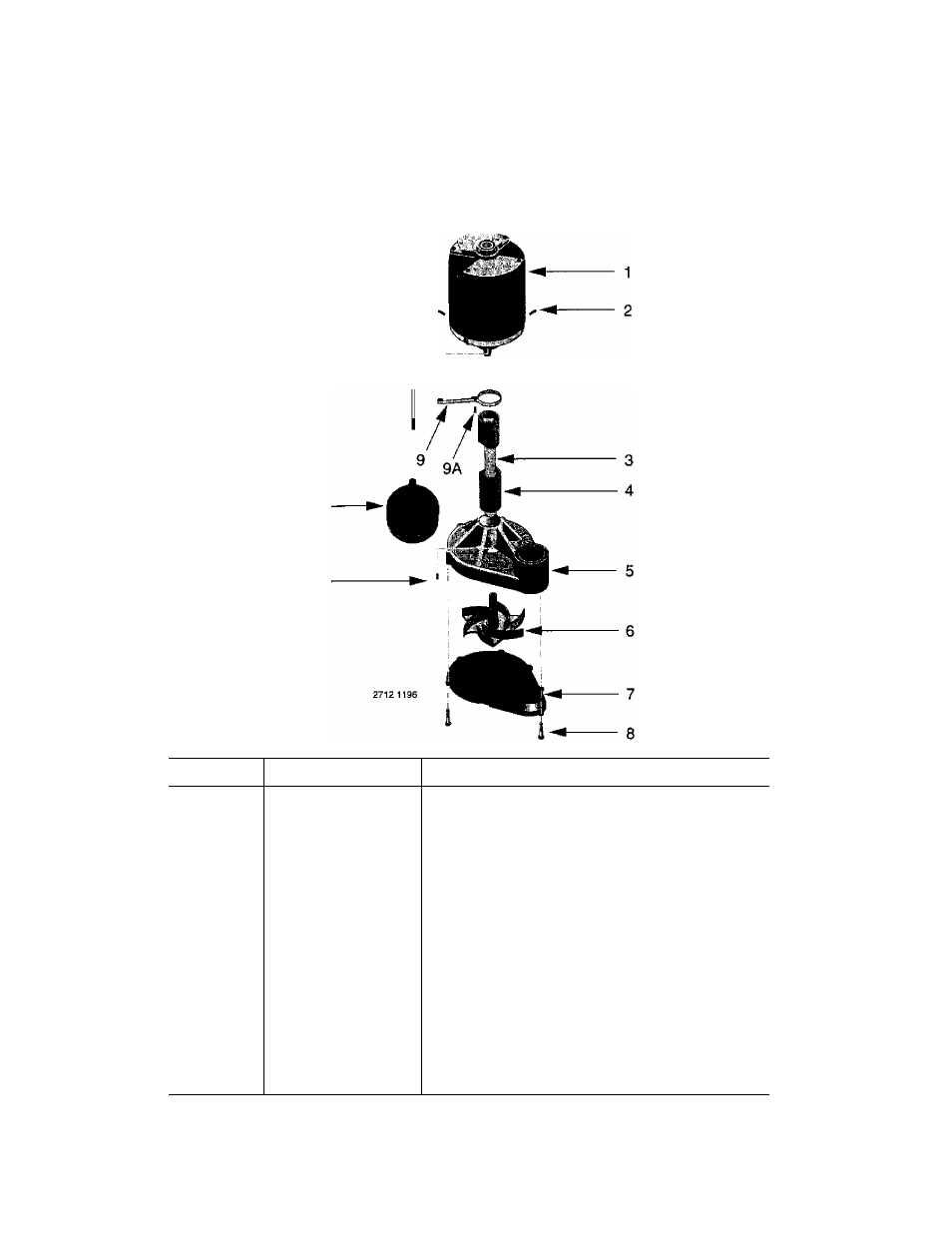

Craftsman Professional
Model 390.303491
To onder
parts, call:
Sears Pinpduct; Service
1-800-366^7278
13
10
"A
12
11
Key No.
Part Number
Description
1
Motor with Cord and Switch
2
U30-946PH
Set Screw (4 Required)
3
RP0005257
Shaft
4
S15-37SS
Column
5
S1-32B
Volute
6
S5-13P
impeller
7
PS4-17P
Base Plate
8
U30-571BT
Screw #8-32 x 1/2 Hex Head (8 Required)
9
RP0005249
Rod Guide
9A
U30-929ZP
Screw #8x1” Phillips Head
10
RP0005248
Rod Bushing (2 Required)
11
FT0013-63
Float
12
RP005168S
Rod
13
2773
Switch
•
U17-318
Cord and Plug
•
U78-130P*
1-1/2” X 1-1/4” Reducer Bushing
' Not illustrated
May be purchased locally.
* If motor fails, replace entire pump.
