7b orrfw
parts, coil: ,
Sears (TroducX S^ce^
lr800r366-7278
‘
Craftsman
Model 390.303302
659 0594

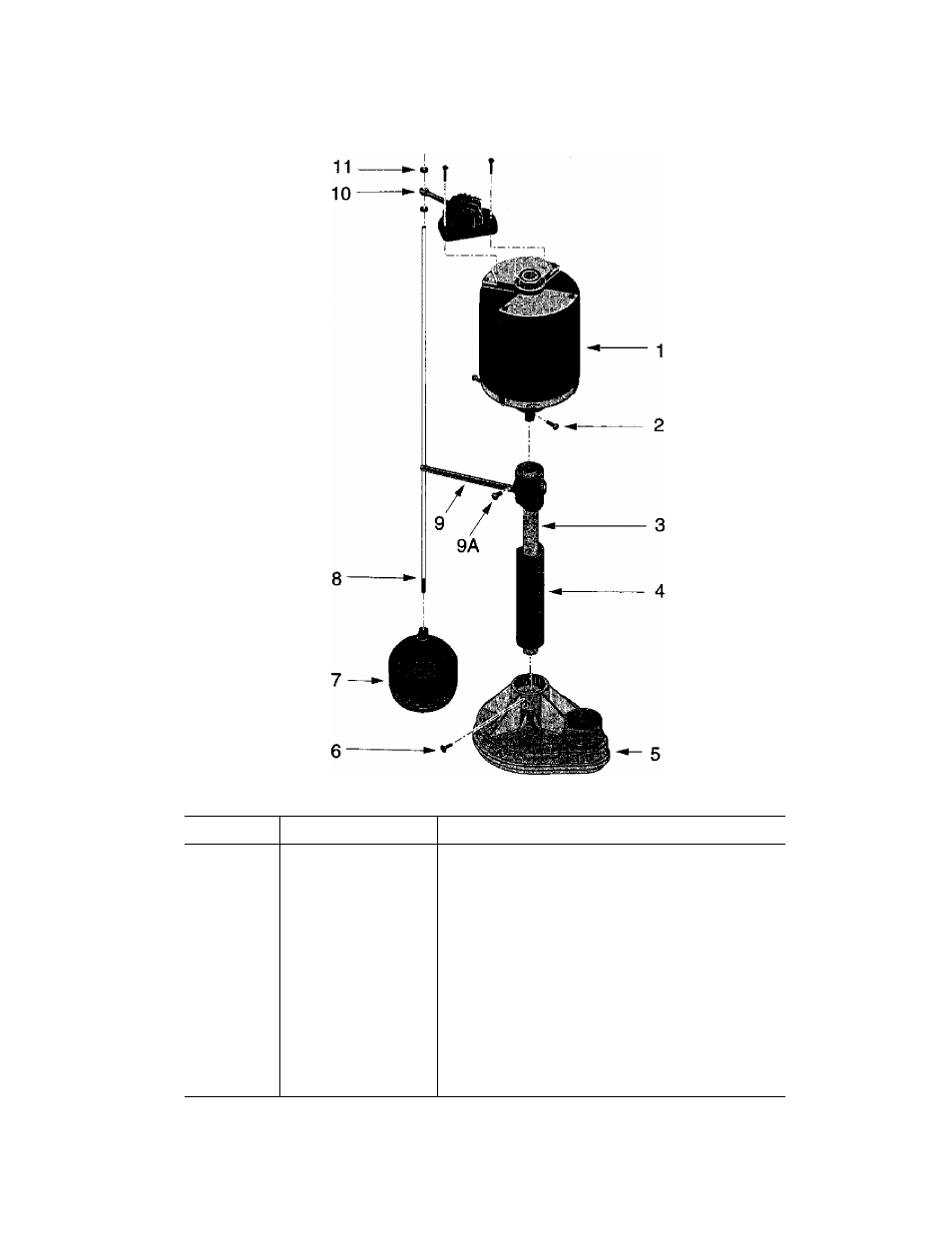

Key No.
Part Number
Description
1
«*
Motor with Cord and Switch
2
U30-932ZP
Screw #8 X 1/2” Hex Head (2 Required)
3
RP0005257
Shaft
4
RP0005246A
Column
5
S101-33P
Impeller Assembly
6
SC004-116
Screw #8-18 X 3/8 Self Tap
7
FT0013-63
Float
8
RP005168S
Rod
9
RP0005249
Rod Guide
9A
U30-929ZP
Screw # 8 x 1 " Phillips Head
10
2773
Switch
11
RP0005248
Float Stop (2 Required)
•
U17-318
Cord and Piug
Not illustrated.
* If motor fails, replace entire pump.
