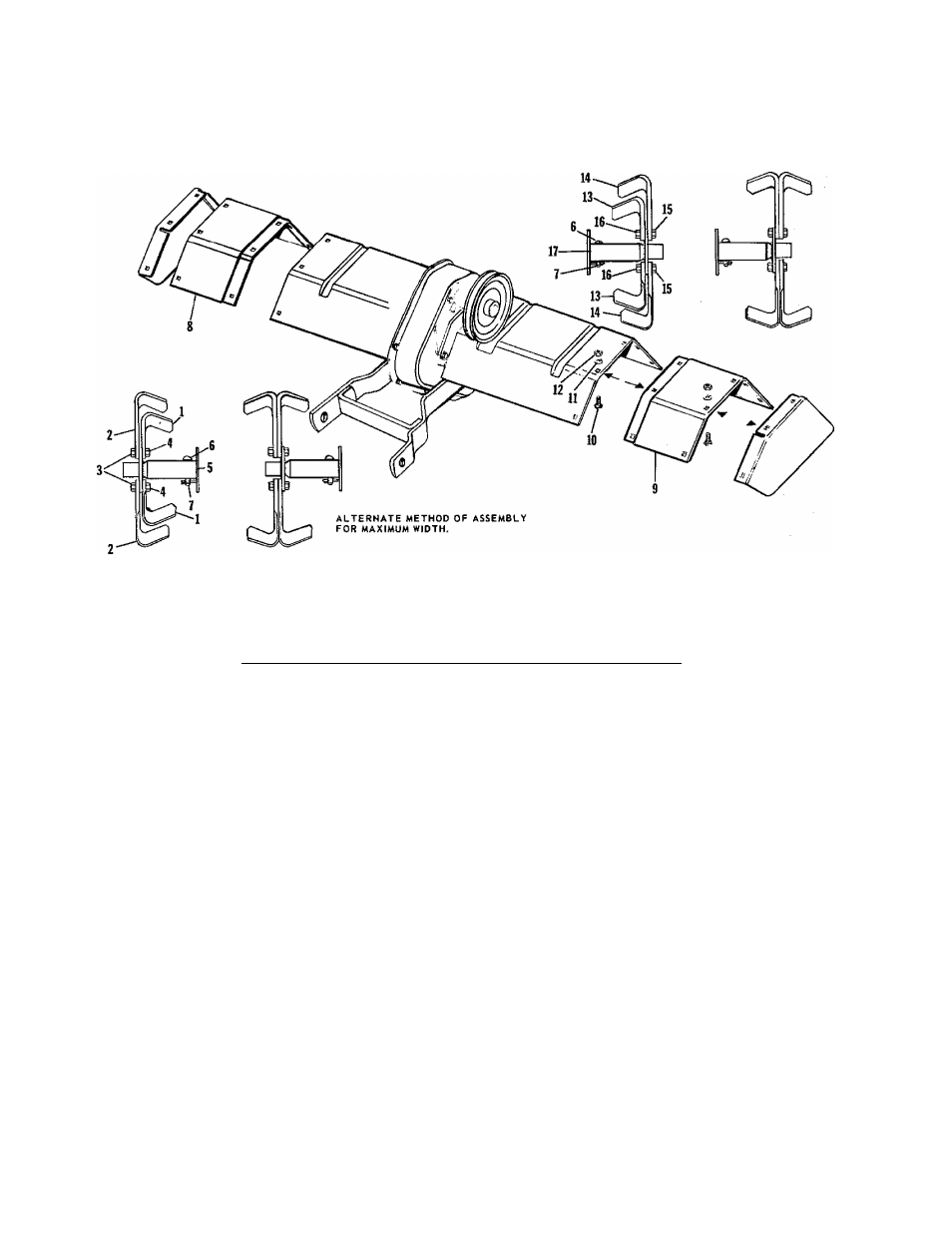

TINE EXTENSION GROUP
ALTERNATE METHOD OF ASSEMBLY
FOR MAXIMUM WIDTH.
No.
Description
Part No.
Qtj
BLADE ASSEMBLY (L. H.)
Includes:
LM-01052-22
1
1
TINE-blade (left hand)
LM-81520-01
2
2
TINE-blade (right hand)
LM-81520-02
2
3
SCREW-hex cap, 7/16-20 x 1-1/4
LM-09204-88
4
4
NUT-hex lock, 7/16-20
LM-09148-80
4
5
PLATE ASSEMBLY-tine ext.
LM-01052-21
1
6
PIN
LM-01180-53
2
7
CLIP-spring
LM-S1610-45
2
8
DEFLECTOR-extension(right hand)
LM-01052-75
1
9
DEFLECTOR-extension (left hand)
LM-01052-76
1
10
BOLT-carriage, 5/16-18 x 1/2
LM-09237-00
10
11
WASHER-lock, 5/16
LM-09173-56
10
12
NUT-hex, 5/16-18
LM-09173-72
10
BLADE ASSEMBLY (R. H.)
Includes:
LM-01052-23
1
13
TINE-blade (left hand)
LM-81520-01
2
14
TINE-blade (right hand)
LM-81520-02
2
15
SCREW-hex cap, 7/16-20 x 1-1/4
LM-09204-88
4
16
NUT-hex lock, 7/16-20
LM-09148-80
4
17
PLATE ASSEMBLY-tine ext.
LM-01052-21
1
10
ALWAYS FURNISH MODEL AND SERIAL NUMBER WHEN ORDERING PARTS.
