USER MANUAL

Optima Rack 1-3K

___________________________________________________________________________________________________________________________________

(120217_EN) OPTIMA-RACK 1K-3K

- 15


8. UPS CONFIGURATION


















* Configuration menu is activated by selecting SELECT push button at front panel during 5 seconds or longer. UPS
must be connected to input AC source but in stand-by mode (powered off).
* “OFF/Enter” button is used as confirmation key (Enter)
* “ON/Mute” is used to select upper option in menu.
* “SELECT” is used to select bottom option in menu.


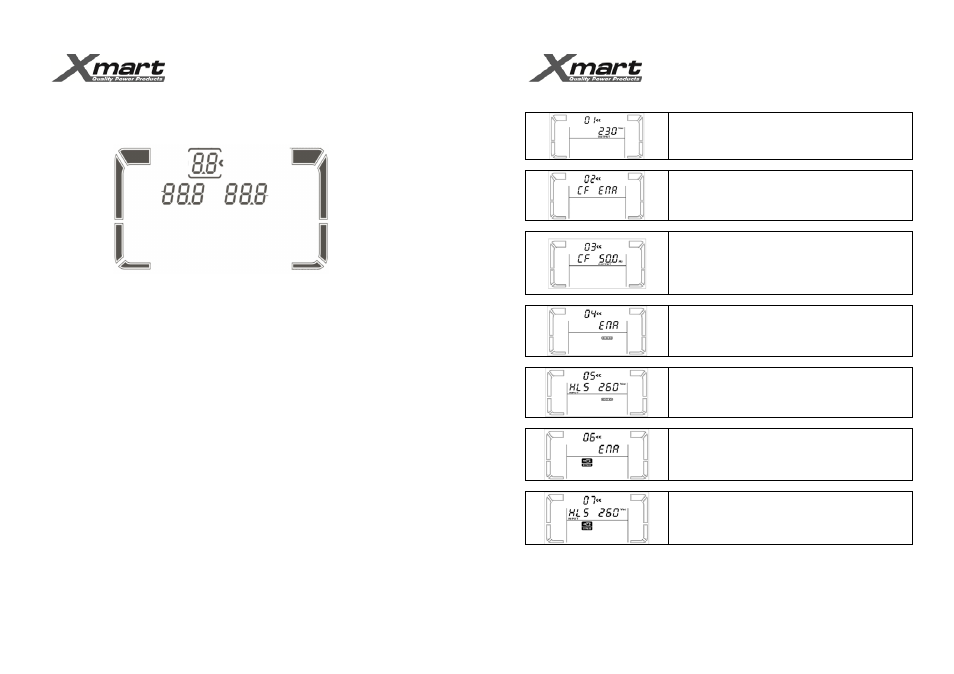

Configuration Menu:


00: Initial Menu, Quit option
01: Output Voltage
02: CF Frequency Conversion Mode (to able or disable)
03: CF for configuring frequency value in Hz
04: ECO: to Able or Disable ECO Mode
05: ECO: To configure acceptable input voltage range in ECO mode.
06: By Pass: To able or disable by-pass function
07: By Pass: To configure acceptable input voltage range.
08: Programmable Outlets: To able or disable programmable outlets function
09: Programmable: To configure timer value in minutes for programmable outlets.

USER MANUAL

Optima Rack 1-3K

___________________________________________________________________________________________________________________________________

(120217_EN) OPTIMA-RACK 1K-3K

- 16


01: Output Voltage Configuration

Output voltage value can be selected from 4 available values

02: CF: Enable or Disable

CF ENA: CF function enable
CF DIS: CF function disable

03: CF: Frequency value in Hz

Output frequency can be configured for battery mode:
BAT 50: 50Hz
BAT 60: 60Hz
If CF function is enable output frequency can be set in normal mode:
CF 50: 50Hz
CF 60: 60Hz

04: ECO: Enable or Disable

ENA: ECO enable (ON)
DIS: ECO disable (OFF)

05: ECO: Input Range Configuration

By Selecting UP/DOWN (“on/mute” y “select”) keys for selecting hi
limit HLS and low limit LLS of input range in ECO mode.

06: By Pass: Enable or Disable

ENA: Bypass enable
DIS: Bypass disable

07: By Pass: Input Range Configuration

By Selecting UP/DOWN (“on/mute” y “select”) keys for selecting hi
limit HLS and low limit LLS of input range in By-Pass mode.
