USER MANUAL

Optima Rack 1-3K

___________________________________________________________________________________________________________________________________

(120217_EN) OPTIMA-RACK 1K-3K

- 13

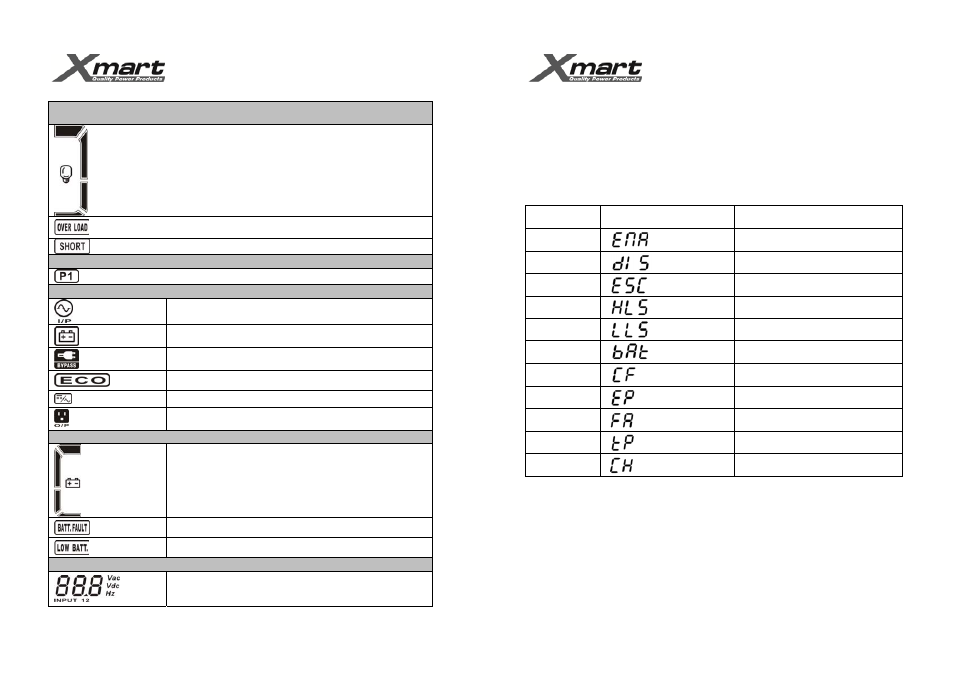

Power consumption
(connected to UPS outlets)I

Indicates power output supplied by UPS:
0-25%,
26-50%,
51-75% y
76-100%.

Indicates overload at UPS output. Devices connected in UPS outlets load
UPS above UPS capacity.

Indicates short circuit at UPS output.

Programmable Outputs

Indicates programmable function is activated.

Operation Mode

Indicates UPS is connected to input AC source under normal range..

Indicates UPS is in battery mode.

Indicates UPS is in BYPASS mode.

Indicates ECO Mode is active

Indicates UPS inverter is running.

Indicates UPS outlets are powered.

Battery Information

Indicates battery charging level:
0-25%,
26-50%,
51-75% y
76-100%.

Indicates battery failure

Indicates low battery level

Input Information

Indicates input voltage, input frequency and DC battery voltage
Vac: Input voltage, Vdc: battery voltage, Hz: input frequency

USER MANUAL

Optima Rack 1-3K

___________________________________________________________________________________________________________________________________

(120217_EN) OPTIMA-RACK 1K-3K

- 14



BEEP ALARM
Battery Mode:

1 “Beep” every 4 seconds

Battery Low:

1 “Beep” per second

Output Overload:

2 “Beeps” per second

UPS Failure:

Continuous Beep

By-Pass Mode:

1 Beep every 10 seconds.


7. LCD TEXT MESSAGES

TEXT LCD

TEXT

Meaning

ENA

Enable (Habilitado)

DIS

Disable (Des-habilitado)

ESC

Escape (Salir)

HLS

High Limit for Baypass (Límite Alto para
Bypass)

LLS

Low Limit for Baypass (Límite Bajo para

Bypass)

BAT

Battery (Batería)

CF

Converter (Convertidor de Frecuencia)

EP

EPO (Emergency Power Off)

FA

Fan (Ventilador)

TP

Temperature (Temperatura)

CH

Charger (Cargador de Baterías)
