STEP 6

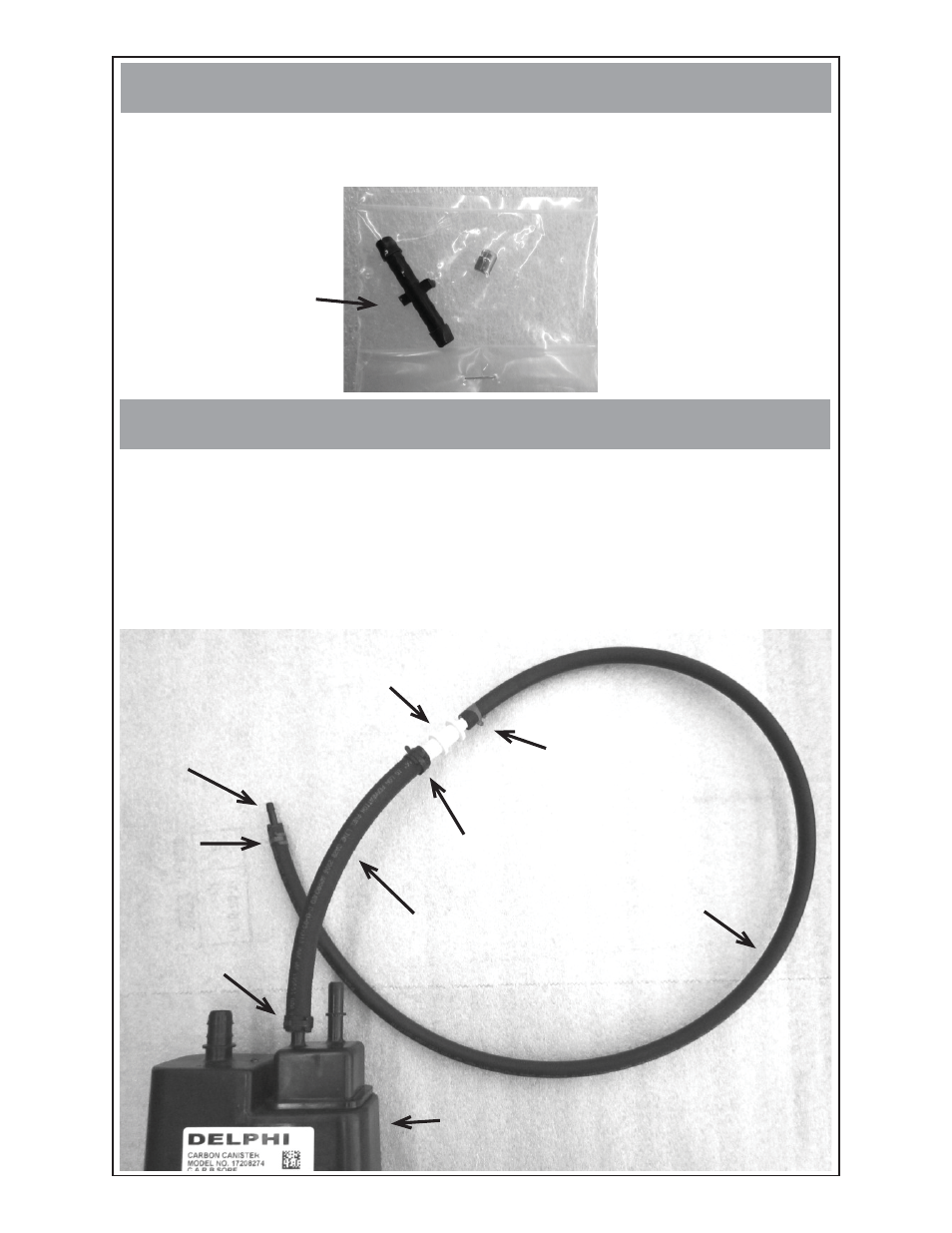

Locate the small plastic bag that came with the Briggs & Stratton engine operators
manual. You will use the plastic connector (ref. B) in step 6. You can discard the
other part as it is not needed in this application. •
7
8
B
10
8
14
10
2
15
STEP 7
Slide black hose clamps (ref. 8) onto 5/16” fuel hose (ref. 15) by compressing
them with a pliers. Push hose (ref. 8) onto carbon canister nipple marked PURGE
and move the clamp into position at the end of the hose.
Twist and push hose reducer (ref. 14) onto hose (ref. 15) and move clamp into
position at the end of the hose. NOTE: You can use a small amount of vegetable
oil on the hoses to ease in their connection.
Repeat process for 3/16” hose (ref. 7). This will connect to the engine hose in step
8. •
•
•
