STEP 4
STEP 5
Below is your fuel supply connection point on the engine. Fuel fi lter (ref. A) is
where you connect the fuel line (ref. 6) from Step 4.
NOTE: Each installation may vary. Your fuel line lengths may vary depending on
your installation requirements.
DANGER: Do not allow fuel lines to lay directly on “HOT” surfaces! This
may cause a fi re. •
•
•

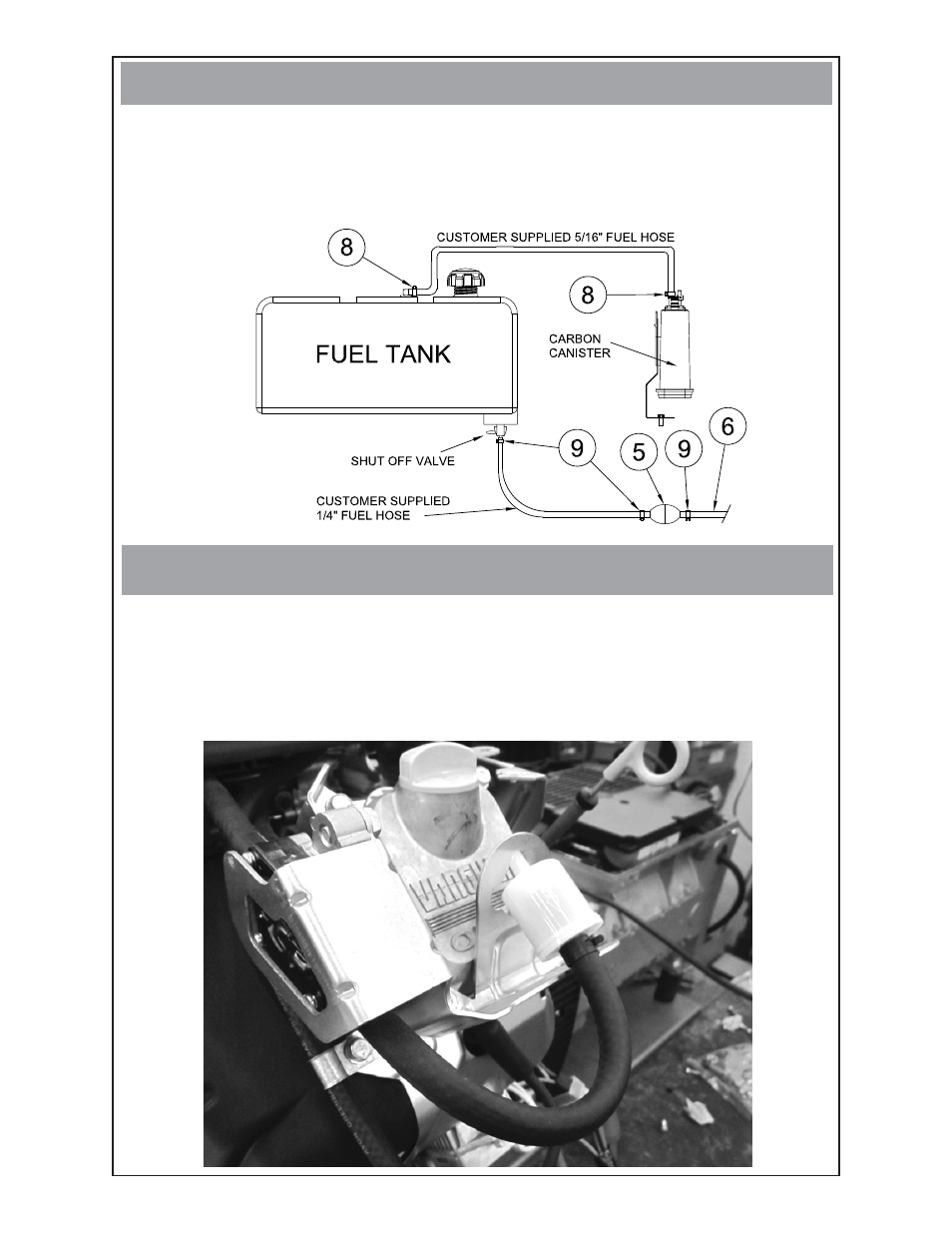

Route customer supplied 1/4” fuel line from fuel tank to engine and attach the fuel
line to the primer bulb (ref. 5) with red hose clamps. Attach 1/4” fuel hose (ref. 6)
to the other side of the primer bulb (ref. 5) with red hose clamp (ref. 9) and route to
the fuel fi lter (ref. A) on the engine. See step 5 below.
Attach 1/4” fuel hose (ref. 6) to the fuel fi lter (ref. A) on the engine using red hose
clamp (ref. 9). •
•
A
