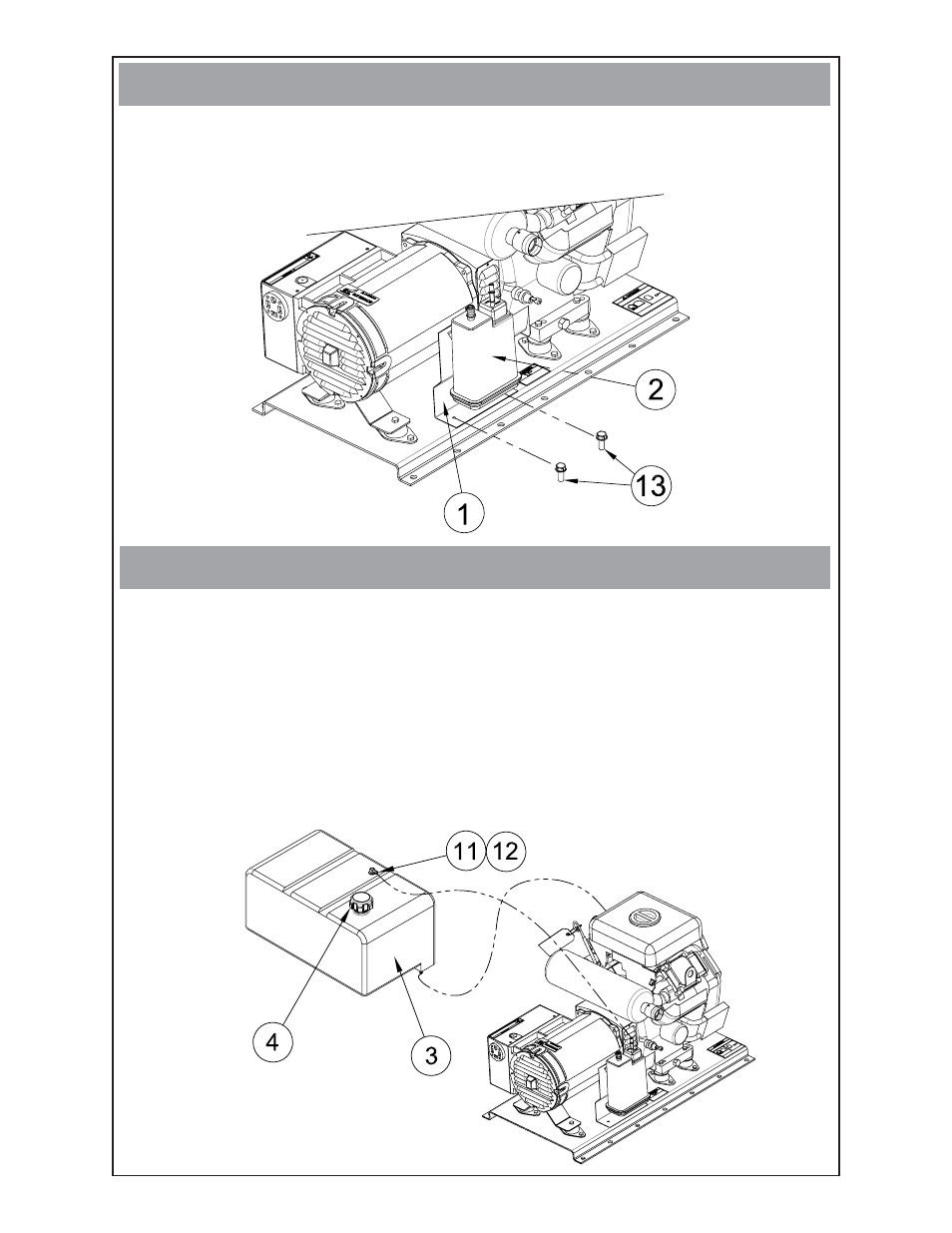

Mount fuel tank (ref. 3) in a suitable location to ensure proper fl ow of fuel. The
fuel tank must be mounted to a bracket to allow access to the shut-off valve. Bolt
holes are provided on the bottom of the fuel tank for mounting to a stable struc-
ture. Use 3/8-16 X ? bolts. The length will vary depending on the mounting struc-
ture. NOTE: When mounting the fuel tank below the level of the engine an addi-
tional fuel pump may be required for a lift of 3 feet or more from the bottom of the
fuel tank to the fuel pump on the engine. Hose lengths may have to be adjusted
for your application.
Install bushing (ref. 12) and hose fi tting elbow (ref. 11) into the top of the fuel tank.
Install fuel cap with gauge (ref.4) on top of the fuel tank. •
•
•
STEP 2
STEP 3
Attach the carbon canister bracket (ref. 1) using the two self-tapping screws
(ref.13)
Slide the carbon canister (ref. 2) up into the carbon canister bracket (ref.1) and
then slide it down until it is locked in place. •
•
