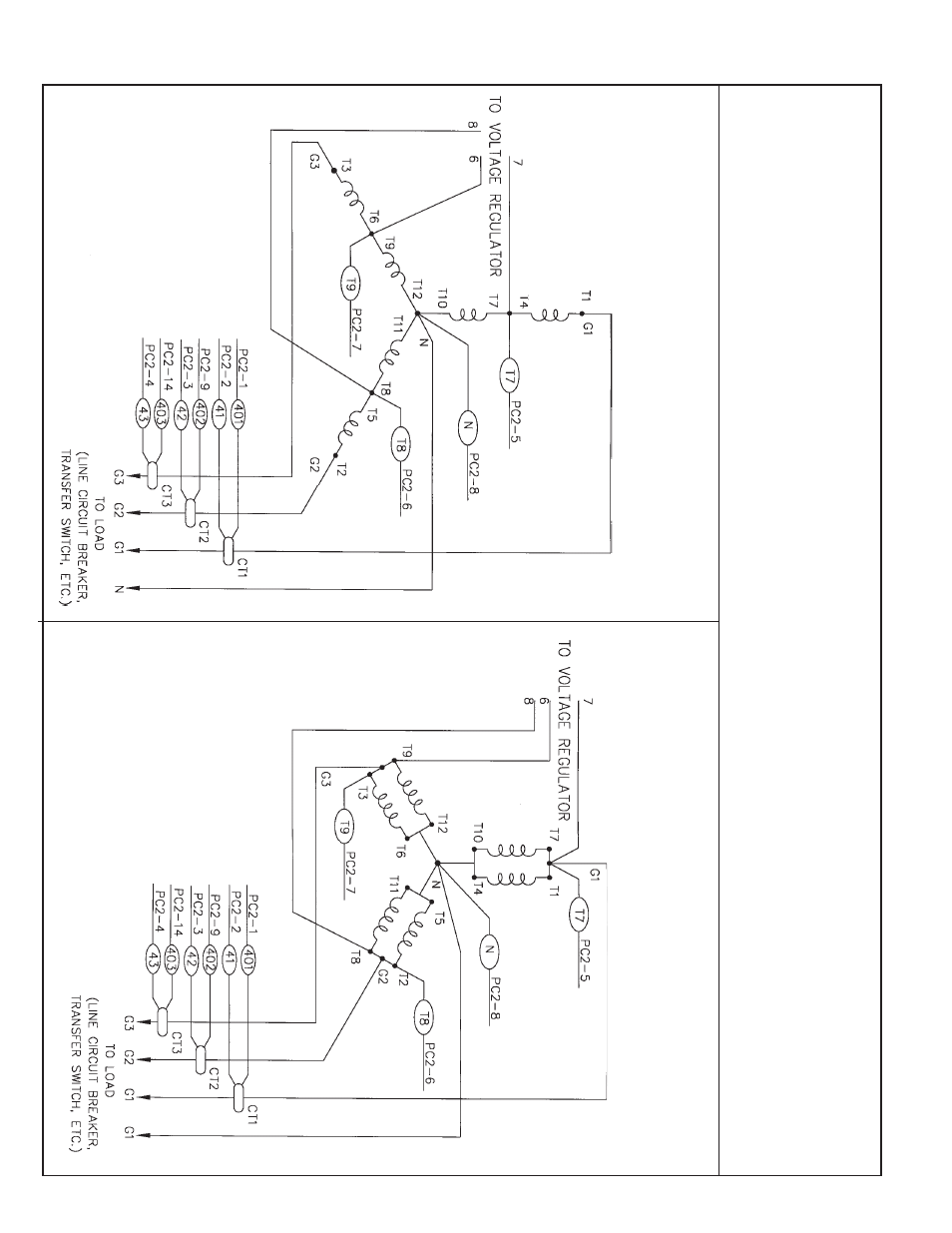

THREE PHASE AC WIRING HIGH AND LOW WYE
THREE PHASE-LOW WYE 120/208 VOLTS
THREE PHASE-HIGH WYE 277/480 VOLTS
Lead Cross
Ref. U =L1 V =L2 W =L3 N = N
U1 - T1 U2 - T4 U5 - T7
U6 - T10
V1 - T2 V2 - T5 V5 - T8 V6- T11 W1- T3 W2 - T6 W5 - T9 W6 - T12
Lead Cross
Ref. U =L1 V =L2 W =L3 N = N
U1 - T1 U2 - T4 U5 - T7
U6 - T10
V1 - T2 V2 - T5 V5 - T8 V6- T11 W1- T3 W2 - T6 W5 - T9
W6 - T12
