DEFENDER™
Vogelzang International Corp.
TR001B | 20120125.0

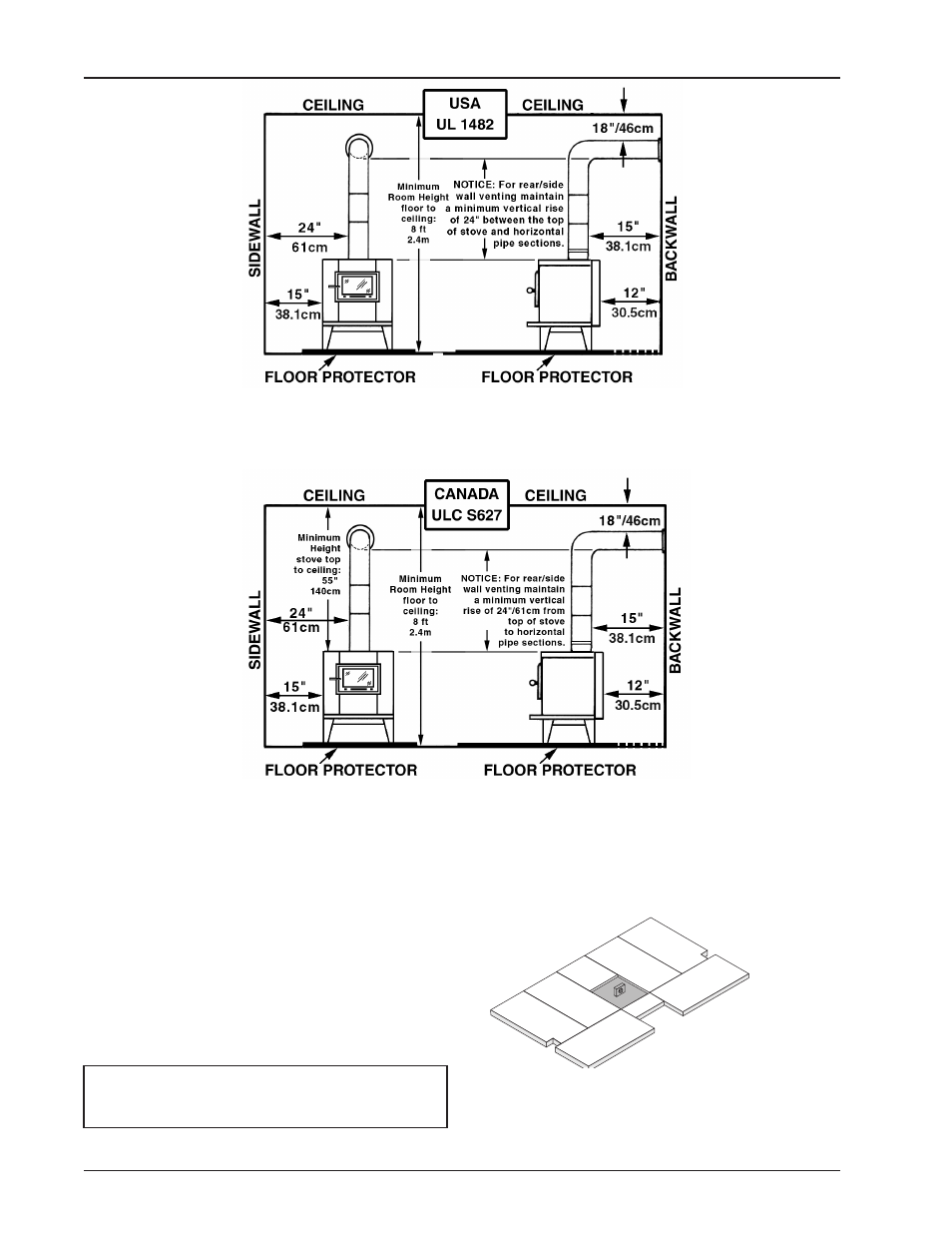

Fig. 8d – Side View
Minimum Clearance
Dimensions
from Combustible Surfaces
Fig. 8c – Front View
Minimum Clearance
Dimensions
from Combustible Surfaces
Fig. 8b – Side View
Minimum Clearance
Dimensions
from Combustible Surfaces
Fig. 8a – Front View
Minimum Clearance
Dimensions
from Combustible Surfaces
FIREBRICK ASSEMBLY
Firebrick extends the life of your stove and radiates
heat more evenly. Check to see that all firebricks are in
their correct positions and have not become misaligned
during shipping or assembly. If removed for ease of
locating stove, firebrick and ash dump cover must be
replaced before firing. See diagrams, fig. 9a – 9c, for
proper positioning.
CAUTION: NEVER OPERATE STOVE WITH
MISSING OR CRACKED FIRE BRICKS!
Fig. 9a– Step 1, Bottom Firebrick Installation
Two (2) FF-Size; Two (2) T-Size; Two (2) X -Size;
One (1) Y-Size; One (1) Z-Size
X
T
FF
Y T
X
FF
Z
