CONNECTOR PIPE INSTALLATION

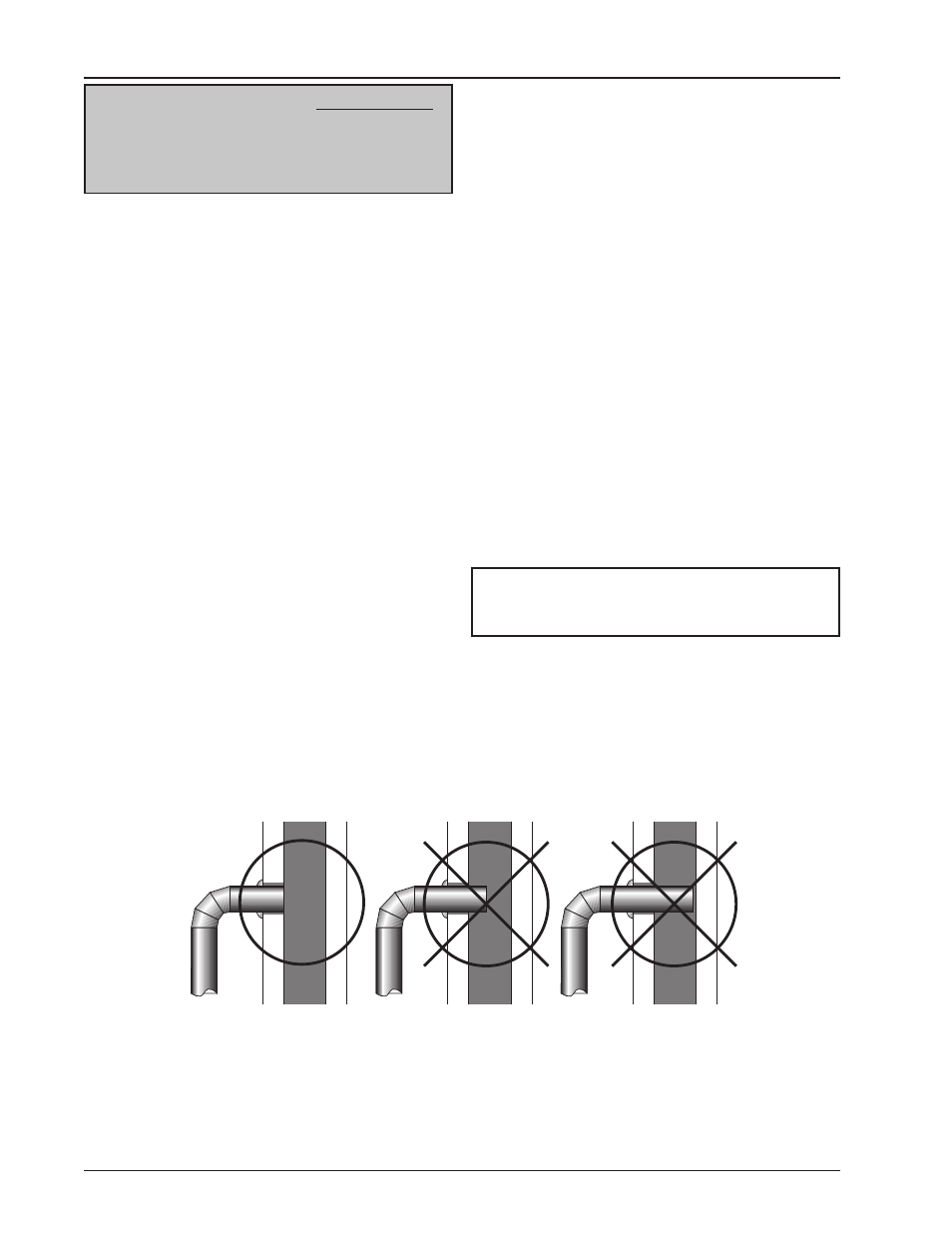

Figure 4 – Stovepipe/Flue Connections
CORRECT WRONG WRONG
Connector pipe is used to make the connection
from the final positioning of your stove to an approved
chimney. Connector pipe is
NOT included as part of
the stove. Connector pipe must be 6˝/152mm diameter
minimum of 24 MSG (minimum standard gauge) black
or 26 MSG blue steel stove pipe. Any connector pipe
used must be in good condition. Replace if necessary
before using stove. Connector pipe is not rated to pro-
vide close contact to combustible materials and must
have proper clearance from combustible materials
as shown in the clearance diagrams on the previous
pages. Connector pipe should never be used in place
of a chimney. If proper clearances are not observed a
house fire could result.
Installation Instructions
1. The smooth end of the stovepipe fits over the stove
flue collar. Secure with three (3) sheet metal screws.
The first section of connector pipe must be single
walled to properly attach to the stove collar. Install
additional pipe and elbow with the crimped end
towards the stove. This will allow any condensation
in the flue to run back into the firebox.
2. Horizontal pipe runs must slope upwards towards
the chimney at least 1/4˝(6.4mm) per foot of hori-
zontal run.
3. You must have at least 18˝/457mm of clearance
between any horizontal piping and the ceiling.
4. The pipe cannot extend into the chimney flue
(figure 4).
5. Secure pipe/elbow sections with three sheet metal
screws at each joint to make the piping rigid. Screws
may be no more than a maximum of 3˝/76mm apart.
6. It is recommended that no more than two (2) 90°
bends be used in the stovepipe installation. The
use of more than two 90° bends may decrease the
amount of draw and possibly cause smoke spillage.
Where possible, use only corrugated (non adjust-
able) elbows. These provide a better seal.
7. The connector pipe must not pass through an attic
or roof space, trusses, closet, or any concealed
space, floor, ceiling, wall, or combustible construc-
tion. (See Chimney Connector Systems & Clear-
ances, page 17.) A manufactured chimney system
listed to UL 103 HT must be used from the first
penetration of ceiling or wall to the chimney cap.
WARNING: DO NOT USE SINGLE WALL CON-
NECTOR PIPE AS A CHIMNEY - A HOUSE FIRE
COULD RESULT.
NOTE: CONNECTOR PIPE IS NOT INCLUDED.
TO PURCHASE, VISIT YOUR LOCAL HARD-
WARE, HOME, OR BUILDING CENTER.
SEE “LOCATING STOVE” PAGE 6 & 7 FOR
ADDITIONAL SPECIFICATIONS.
