ORDERING PARTS - BX26E BOXWOOD STOVE
When ordering missing or replacement parts, always give the Model Number of the stove,

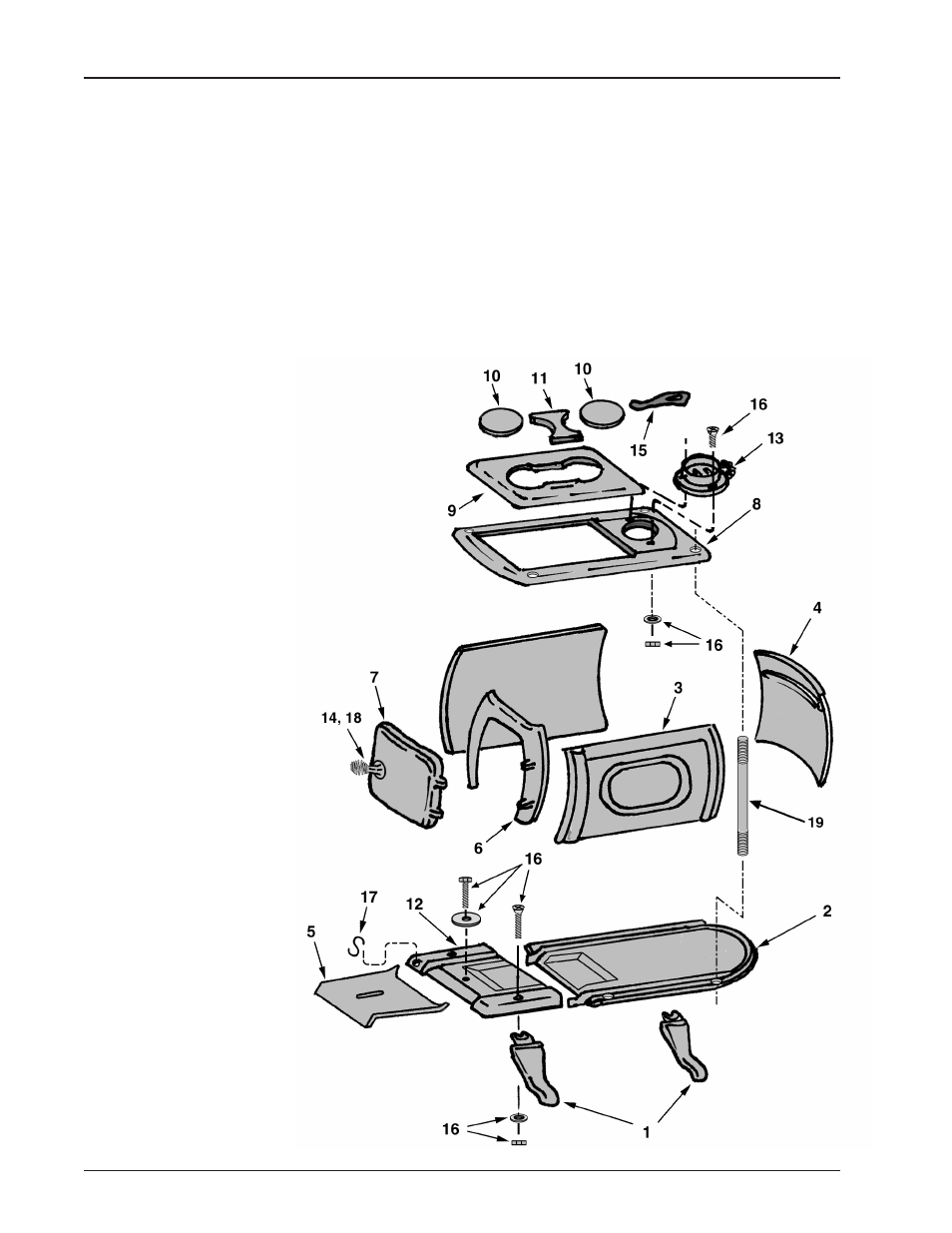

Part Number, and Part Description. Use the illustration and parts list provided to identify parts.
Part No. Description Qty.
1 Leg ............................................................... 4
2 Bottom ......................................................... 1
3 Side ............................................................. 2
4 Back ............................................................. 1
5
Slide Draft Damper ...................................... 1
6 Front ............................................................ 1
7
Feed Door .................................................... 1
8 Top ............................................................... 1
9
Swing Top .................................................... 1
10 Lid ................................................................ 2
11
Lid Support .................................................. 1
12 Hearth .......................................................... 1
13
Damper Collar Assembly ............................. 1
14 Door Handle Assembly ............................... 1
15 Lid Lifter (L-1) .............................................. 1
16 Hardware Pack, Complete .......................... 1
17 S-Hook (used to hang lid lifter) .................... 1
18 Door Latch ................................................... 1
19 Retainer Bolts .............................................. 4
