Figure 3 – Top View
Minimum Corner Clearances from
Combustible Surfaces
LOCATING STOVE continued…

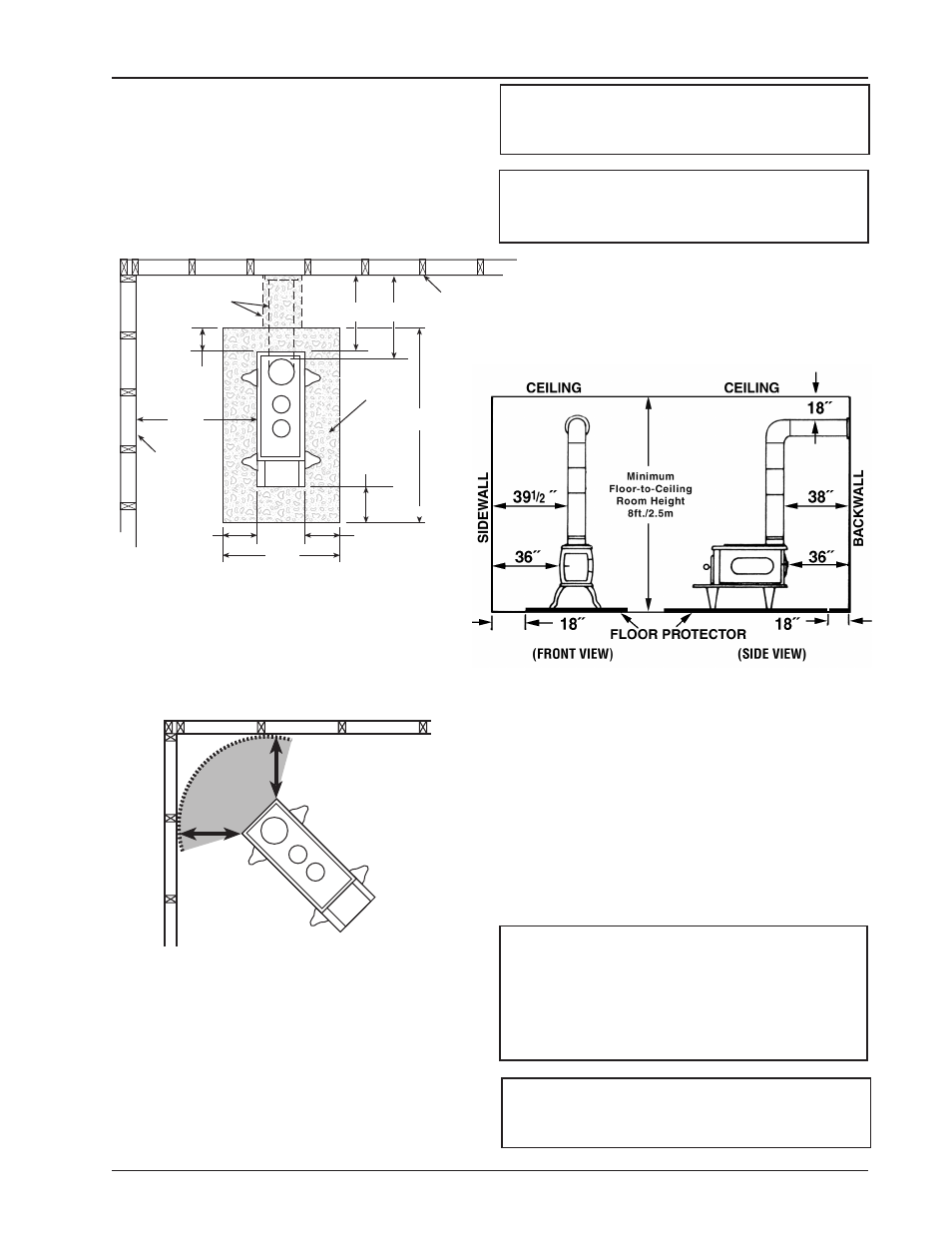

Figure 2 – Minimum Clearance Dimensions
from Combustible Surfaces
Figure 1 – Top View Minimum Clearance
Dimensions from Combustible Surfaces
WARNING: DO NOT USE SINGLE WALL CON-
NECTOR PIPE AS A CHIMNEY - A HOUSE FIRE
COULD RESULT.
MINIMUM CLEARANCES
TO COMBUSTIBLE SURFACES
Unit to Sidewall ......................................36 inches
Unit to Backwall .....................................36 inches
Unit Corner to Wall ................................36 inches
Pipe Connector to Backwall..................38 inches
Pipe Connector to Ceiling .....................18 inches
Failure to follow these minimum clear-
ance requirements may result in an unsafe
installation and could cause a fire.
8. This stove is NOT a UL listed stove.
CAUTION: KEEP FURNISHINGS AND OTHER
COMBUSTIBLE MATERIALS AWAY FROM THE
STOVE.
CAUTION: KEEP FURNISHINGS AND OTHER
COMBUSTIBLE MATERIALS AWAY FROM THE
STOVE.
COMBUSTIBLE
CONSTRUCTION
PER NFPA 211
FLOOR
PROTECTOR
DASHED LINE SHOWS
HORIZONTAL CHIMNEY
CONNECTOR AND
ADDITIONAL FLOOR
PROTECTION REQUIRED
BACKWALL
48"
36"
18"
18"
18"
38"
36"
70"
18"
SIDEWALL
COMBUSTIBLE
CONSTRUCTION
PER NFPA 211
36"
36"
CORNER CLEARANCES
