This guide shows you how to install the ZigBee Pro

wireless module with a VT8000 Series Room Controller.

1. Remove security screw on bottom of Room Controller

cover.

2. Open unit by pulling on bottom of Room Controller

(Figure 1).

3. Carefully remove Room Controllers Motherboard from

casing and turn over.

4. Locate gap in upper-right corner of Room Controllers

Motherboard and locate holes to insert ZigBee Pro

module to Motherboard (Figure 2).

5. Align connector pins on ZigBee Pro module with holes

on Motherboard.

NOTE

:

ensure alignment of pins is correct so as to not

damage ZigBee Pro module.

6. Gently press ZigBee Pro module into Room Controllers

Motherboard until it fits snugly in place.

NOTE

:

do not press too hard to avoid damage to ZigBee

Pro module.

7. Gently replace Room Controllers Motherboard into

casing.

8. Gently align cover to top of base and snap in place

from bottom (Figure 3).

9. Install security screw.

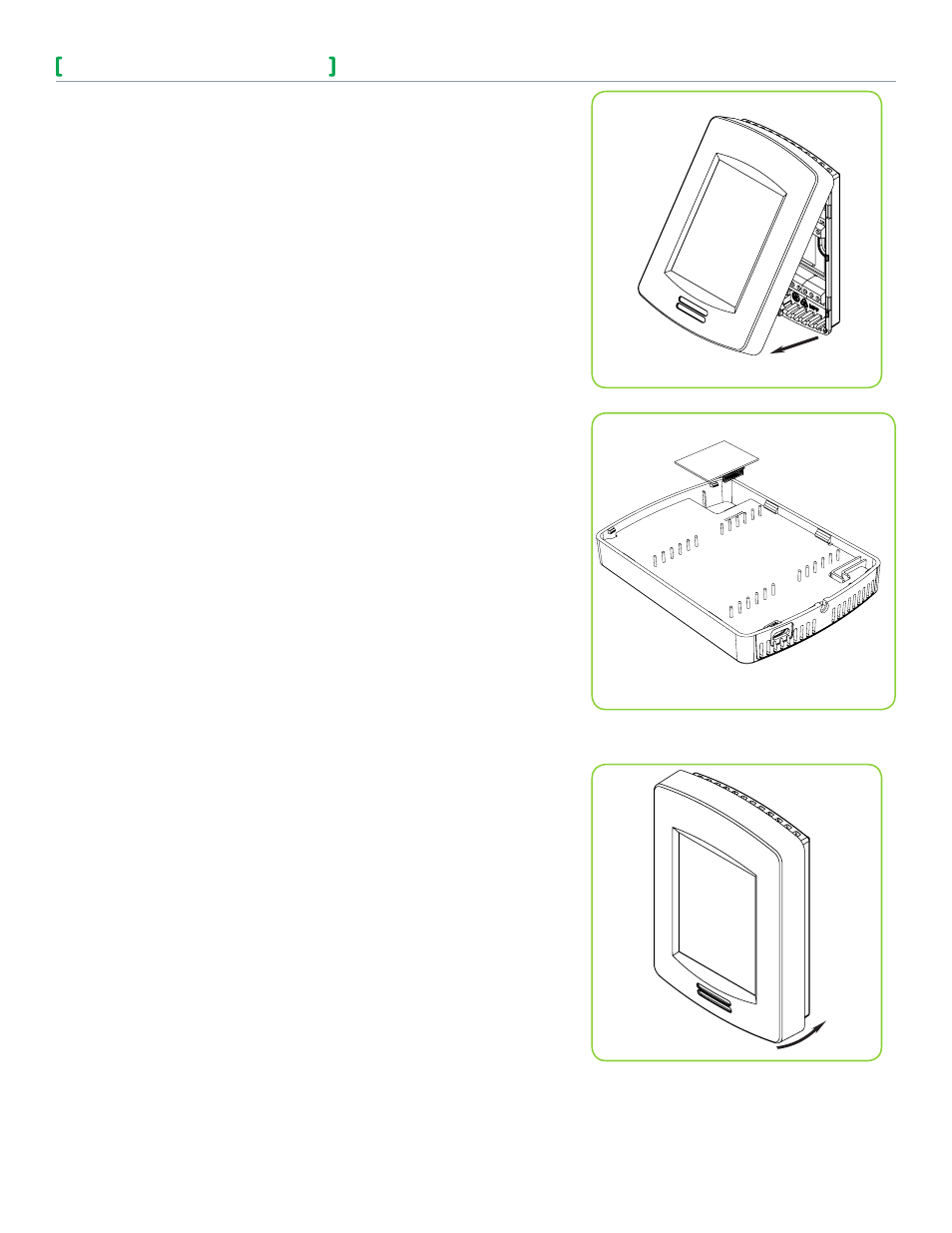

Figure-1

Figure-3

Figure-2
