VTR8300 Series

6

Installation Guide

Viconics Technologies Inc.

|

9245 Langelier Blvd.

|

St.-Leonard

|

Quebec

|

Canada

|

H1P 3K9

|

Tel: (514) 321-5660

|

Fax: (514) 321-4150

028-0414-02

www.viconics.com

|

[email protected]

February 2015

©

2

01

5 V

ic

onic

s T

ec

hno

lo

gi

es

Inc

. A

ll r

ig

ht

s r

ese

rv

ed

.

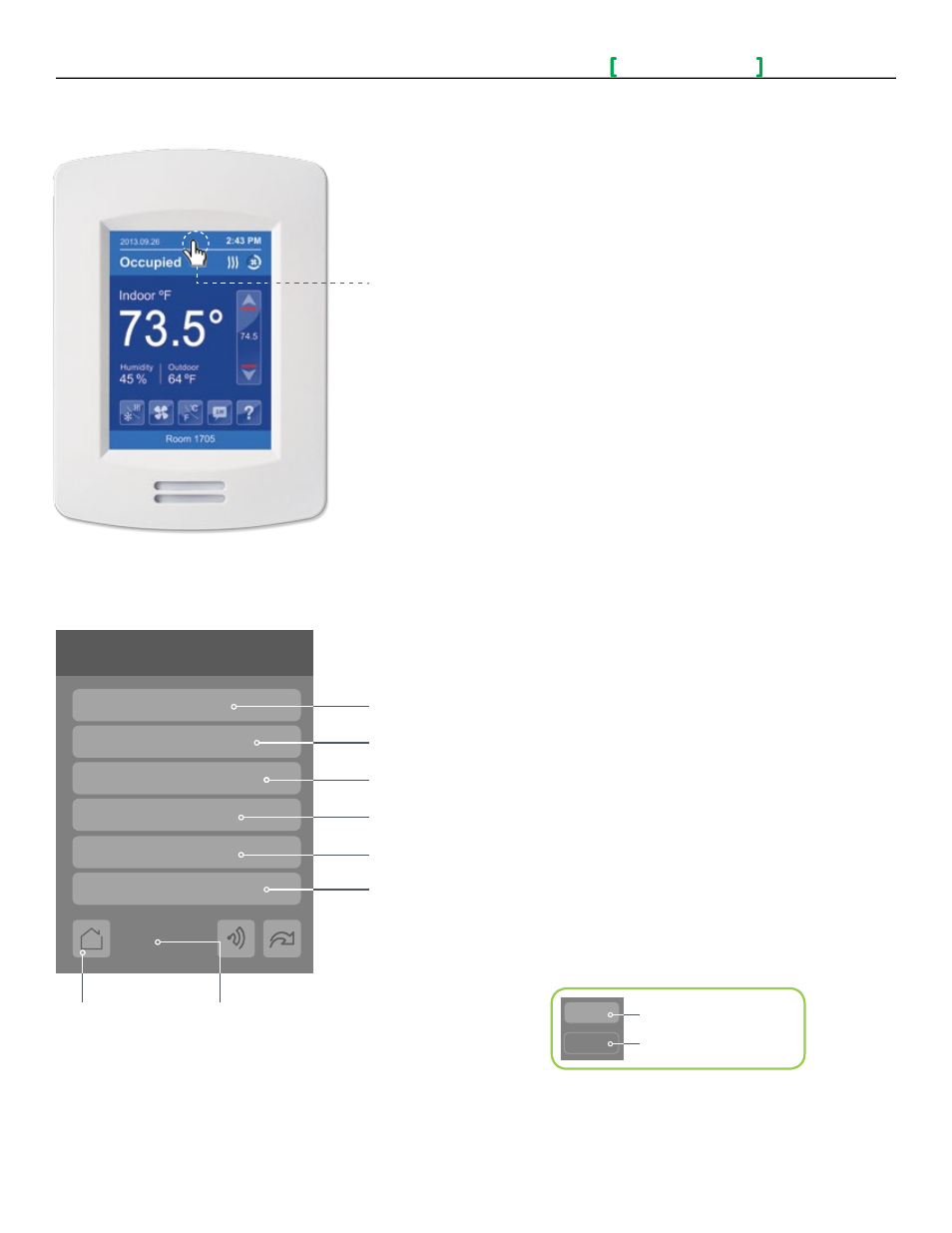

HOW TO ENTER SETUP SCREEN

SETUP SCREEN DISPlay

Return to

home screen

General Note:

1/2 Setup

Network

Configuration

Setpoints - Display

Service view

Test outputs

Language selection

Adjustable parameter

Non-adjustable parameter

Touch and hold this point
for 3 seconds to enter setup mode

Note: If a configuration / installer
password is activated to prevent
unauthorised access to the
configuration menu parameters, a
password entry prompt will appear
to prevent access to the device
configuration components.

Discover Mode

The Controller will

become discoverable on the wireless
ZigBee

®

network for 1 minute (this

button is hidden if ZigBee

®

settings are

not configured)

Enter BACnet

®

& ZigBee

®

network settings

Enter parameter configuration menu

Enter setpoint & display settings

Enter output testing mode

Enter status and service view

Enter setpoint & display settings

Enter language selection settings
