Verity Audio Rocco - Manual (Page 12)

NEUTRIK NEUTRIK
PUSH PUSH
2
3 3
1
NEUTRIK NEUTRIK
PUSH PUSH
2
3 3
1
NEUTRIK NEUTRIK
PUSH PUSH
2
3 3
1
1 2 3 4
5
6
7
8
9
10 11
12
13
14
15

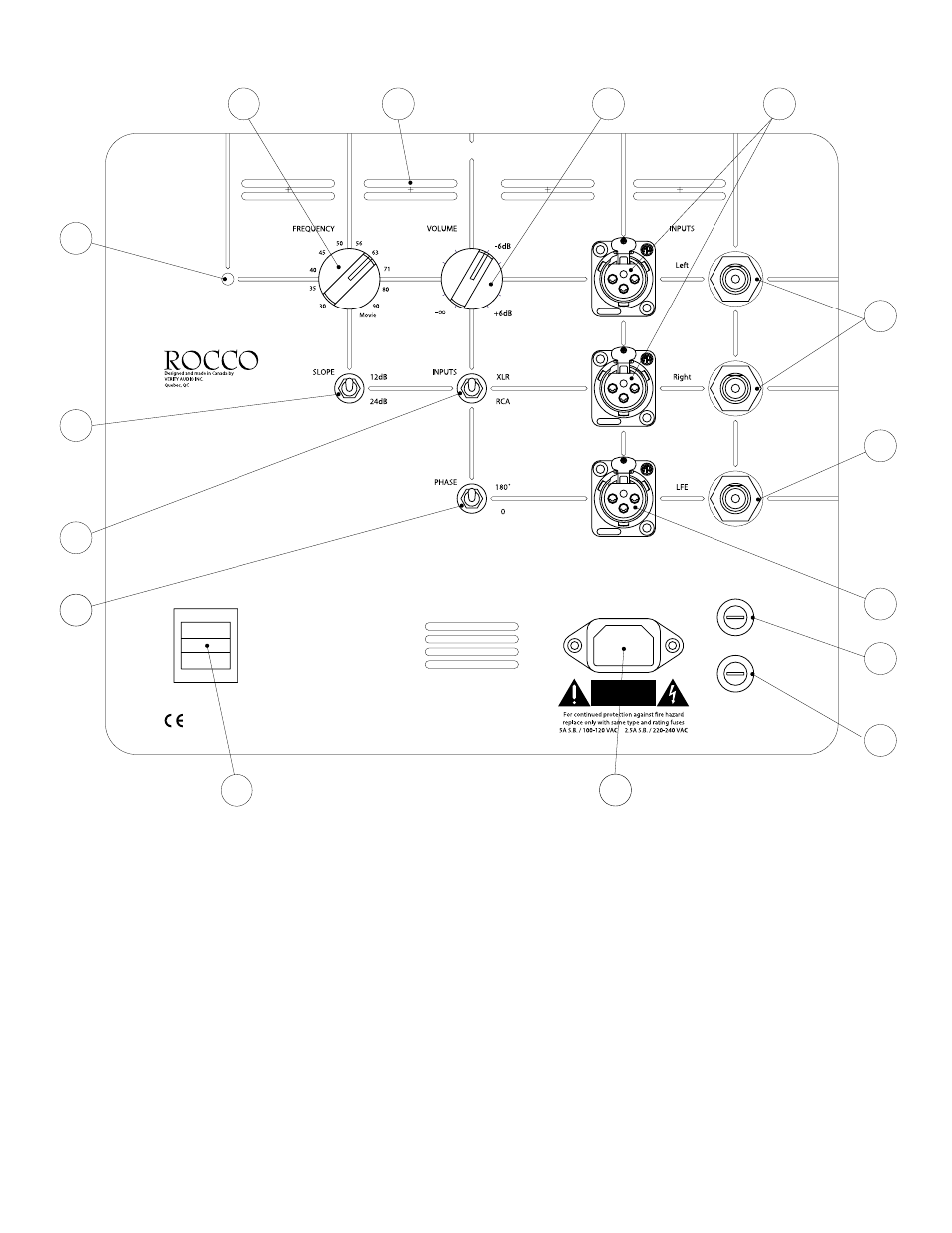

1: Frequency Selector -Scaled from 30, 35, 40, 45, 50, 56, 63, 71, 80, 90 and 250 Hz (Movie)
2: Ventilation Holes - Air traps for ventilation - Do not obstruct
3: Volume Control - Adjust the output level here
4: XLR Right & Left Inputs - For stereo applications
5: RCA Right & Left Inputs - For stereo applications
6: RCA LFE Input - For home-theater or multichannel
7: XLR LFE Input - For home-theater or multichannel
8: Main Fuse Holder - Replace by 5A, Slow Blow at 100-120 VAC or 2.5A, Slow Blow at 210-240 VAC
9: Spare Fuse Holder - Store a spare fuse here - This is not in circuit.
10: AC plug inlet - Plug the power cord here
11: AC switch - Turn power on here
12: Slope Selector - Select the low-pass crossover slope here - 12dB/octave or 24dB/octave
13: RCA/XLR Selector - Select the input type here
14: Phase Selector - Select the phase polarity here
15: Power indicator - Blue LED that indicates if the Rocco is actually on.
