OPERATION

Connections

Read “Safety and Operating Precautions” on page 3, and “Installation” on page 6 of
this manual before making any connections to the

pT2-500.

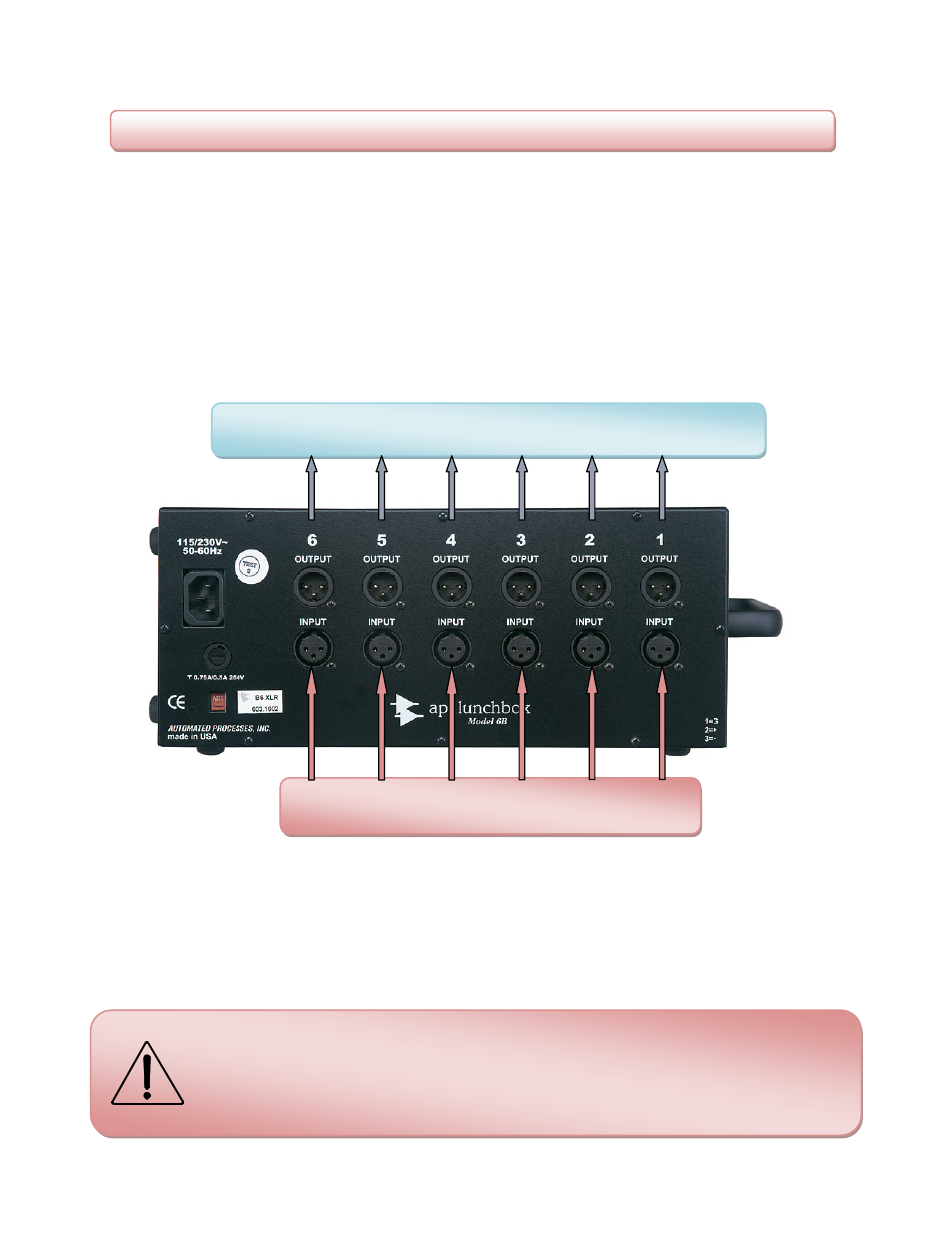

1. Connect output signal cables from the XLR OUTPUT connectors on your 500-series

compatible card rack to the analog line-level inputs of your DAW, recorder, mixer,
A/D converter, signal processor, etc.

 XLR outputs used with unbalanced cable configuration must be wired correctly. 

See page 9 “Output Cable Connection – unbalanced”.

DAW, Recorder, Mixer, A/D Converter, Signal Processor, etc.

Microphones

(for card slots with Mic Preamps installed)

2. Connect microphone cables to the XLR INPUT connectors on card slots that contain

your

pT2-500 or other mic preamp.

 Do not attempt to connect unbalanced microphones to the

pT2-500 

It is not intended to operate with this type of microphone.

NOTE: The input and output connector locations on some 500-series
compatible card racks are different than on API™ units. In order to prevent
time-consuming errors and possible damage to your equipment, please
consult the manufacturer’s documentation for the particular card rack you are
using.
