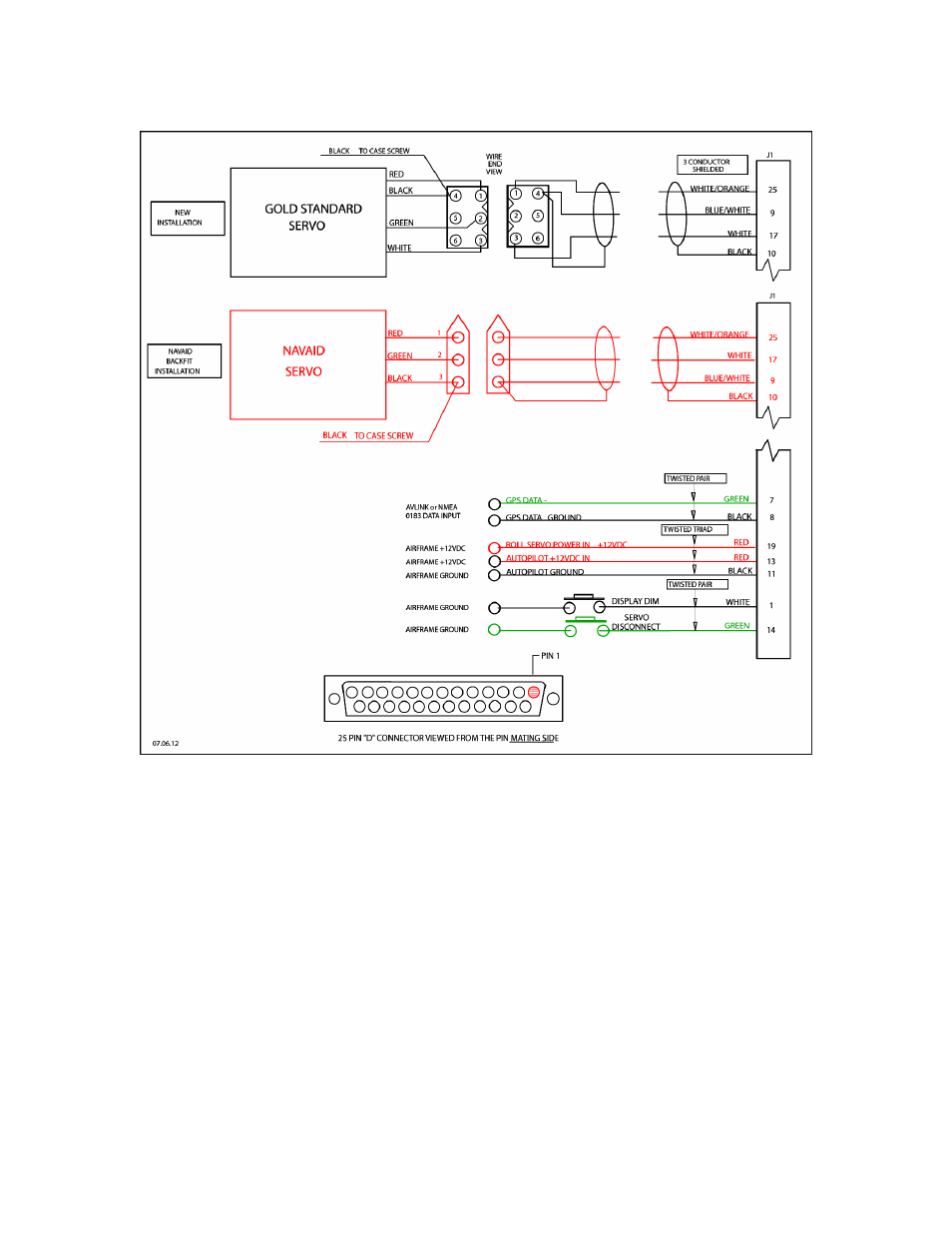

8.6 Wiring Diagram
8.7 J1 Connector Pin Mapping Chart
Pin
Function
Signal
Type
Function
1
Remote Dim / Mode
data
momentary ground
2
Reserved
3
Reserved
4
Reserved
5
Reserved
6
Reserved
7
GPS NMEA 0183 data in
data
GPS RS232 serial data input
8
GPS Data return (ground)
data
GPS data return
9
Ground
power
servo
power
ground
10
Ground
power
shield
ground
11
Main
ground
in
power
airframe
ground
12
Reserved
13
Airframe +12VDC power
power
logic power
14
Autopilot
disconnect
data
momentary
ground
15
Reserved
16
Reserved
17
Roll servo PWM out
data
positioning modulation
18
Reserved
19
Roll servo power input
power
servo Power
20
Reserved
Thru
Reserved
24
Reserved
