Assembling Lift Mounting Supports- cont

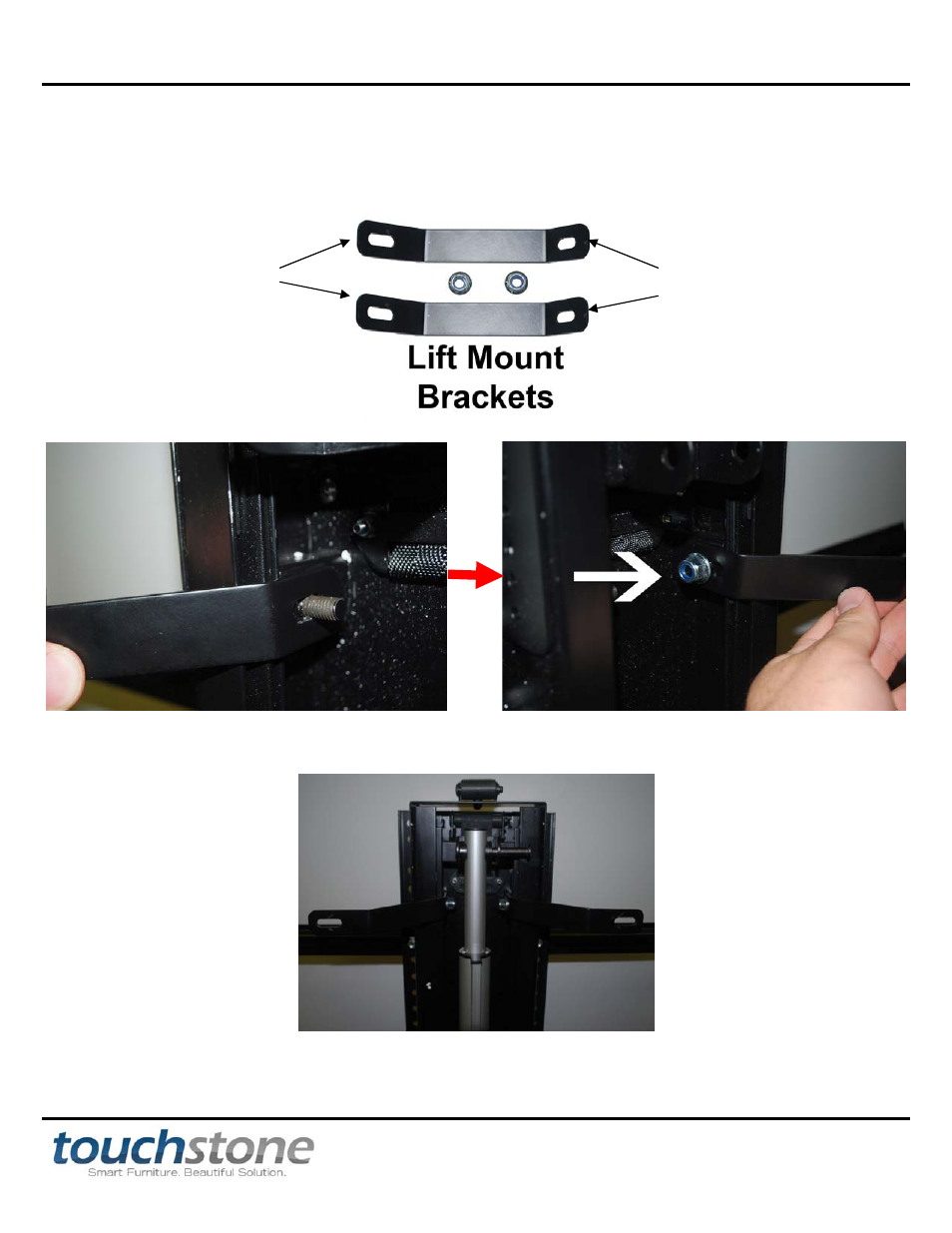

2. Place the long end of the lift mounting brackets over each bolt and fasten bracket to bolt with lock nut with an
adjustable wrench. When complete, the distance between the holes on the mounting bracket should be approx 9”.
3. The picture below shows the lift with both lift mounts attached to the lift.
4. The lift is now ready for installation in the cabinet.
Long Side
Short Side
