Whisper lift ii – Touchstone 23202 Whisper Lift II User Manual
Page 16

Whisper Lift II
www.touchstonehomeproducts.com
800.215.1990
16
Installing Locking Brackets on Whisper Lift II TV Lift – cont.

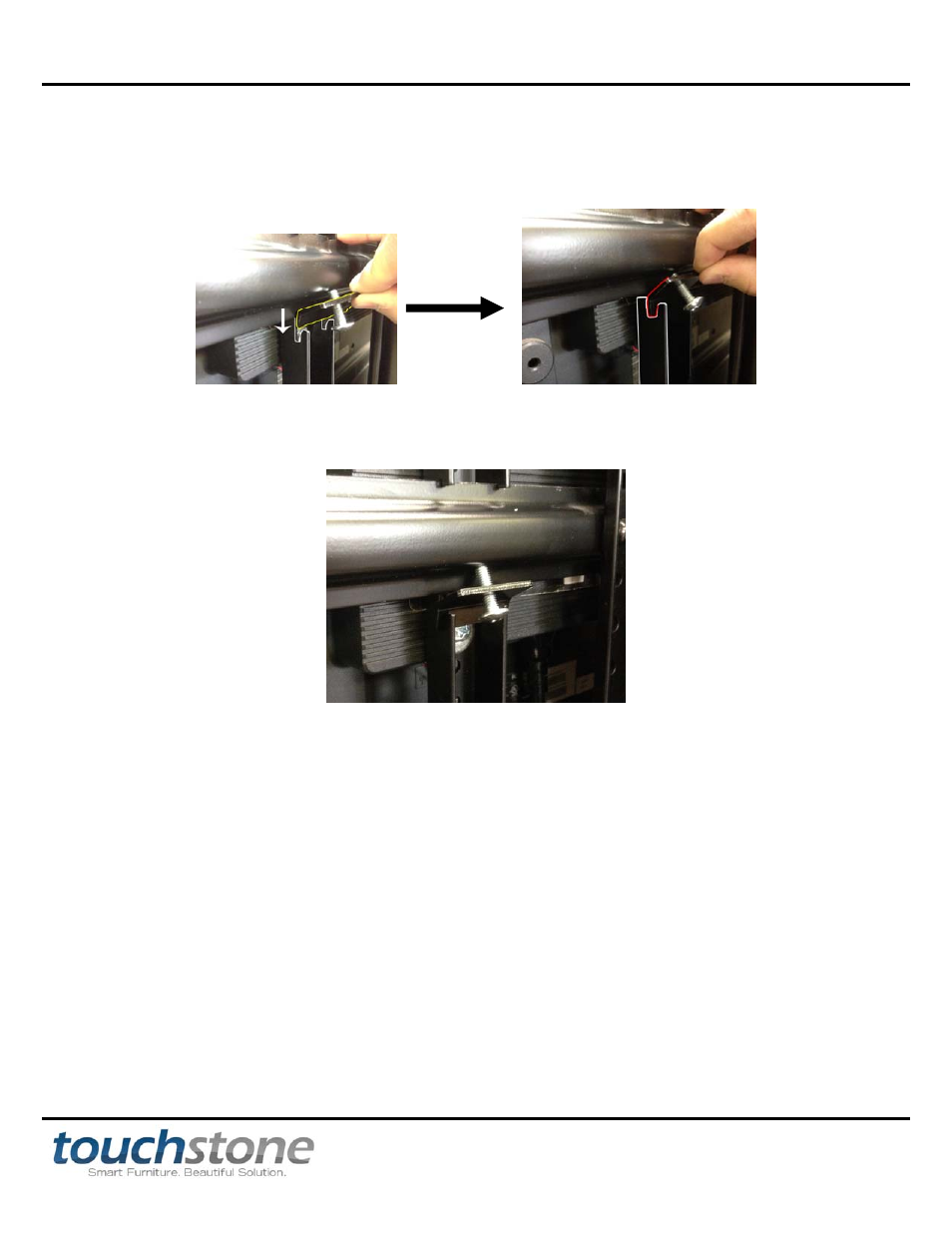

3. Place the angled end of the bracket into the slots in the TV mounting bracket just below the bottom cross bracket
on the lift, as shown in the diagram below.
4. With a Philips-head screwdriver, tighten the screw so that the screw is tight against the cross bracket, as shown in
the picture below.
5. After installing the first locking bracket, install the 2
nd
locking bracket on the other TV bracket in the same
manner. Your TV should now be locked in place and not move from side to side.
