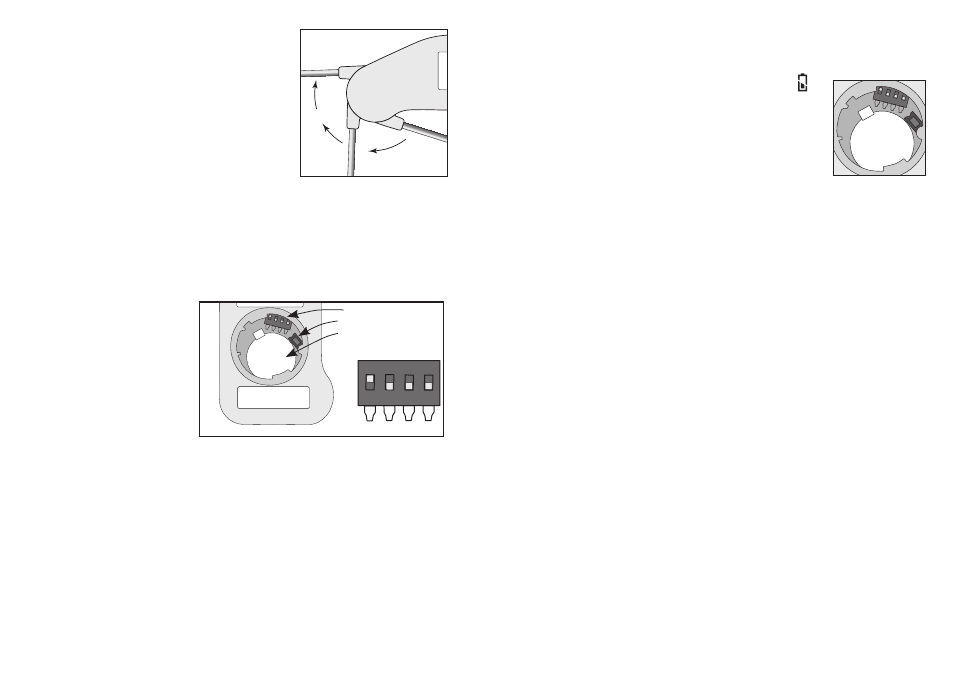

INSTRUMENT OPERATION - The

instrument is switched on by unfolding

the probe until the display shows the

temperature. The unit is turned off by

folding the probe back into the side of the

instrument. The probe should not be rotated

more than 180 degrees as damage will

occur. It is recommended to store the probe,

in the closed position, when not in use.

Apply the probe to the substance to be

measured. For optimum accuracy immerse at least 2.75” (70mm) of

the probe in the substance. DO NOT immerse any of the case parts in

liquid. The probe should be allowed adequate time to stabilize to the

temperature of the item to be measured.

INSTRUMENT

CONFIGURATION - This

instrument has four user

selectable slide switches

(switch bank), adjustable

with a paperclip, and a

single push button ‘Trim

Adjust’ which is located

under the battery cover.

Switch 1 - Display

Units - Changes display units between °F (factory default) and °C. To

change to °C push the switch toward the batteries.

Switch 2 - Resolution - To change the resolution from 0.01°F

(factory default) to 0.1°F push the switch away from the batteries.

Switch 3 - Auto-off - To disable the auto-off (factory default – 10

minutes) push the switch away from the batteries.

Switch 4 - Reading Trim - For normal use, we do not recommend

using the ‘Trim Adjust’. For further details visit www.thermoworks.com.

INSTRUMENT CLEANING - Clean the instrument regularly with an

anti-bacterial probe wipe to avoid potential bacterial growth.

BATTERY REPLACEMENT A battery symbol

indicates that the batteries will need replacing. The

instrument continues to measure accurately but

we recommend that the batteries be changed as

soon as possible. To replace the batteries, remove

the battery cover using a coin (U.S. quarter works

best). Remove the batteries by pulling the battery retaining clip back

while holding the unit upside down. Replace both batteries, positive

side up, replace cover.

ERROR MESSAGES - ‘Err’ will be displayed if the probe develops a

fault. If the error message remains, contact our service department for

further assistance.

EMC/RFI - Instrument performance may be affected if operated

within a high frequency radio field, such as near a mobile phone, or if

subjected to an electrostatic shock.

GUARANTEE - This instrument carries a one-year warranty

against defects in either components or workmanship. During this

period, products that prove to be defective will, at the discretion of

ThermoWorks, be either repaired or replaced without charge. This

warranty does not apply to probes, where a six-month period is offered.

The product warranty does not cover damage caused by fair wear and

tear, abnormal storage conditions, incorrect use, accidental misuse,

abuse, neglect, misapplication or modification. Full details of liability

are available within ThermoWorks’ Terms & Conditions of Sale at www.

thermoworks.com. In line with our policy of continuous development, we

reserve the right to amend our product specification without prior notice.

1 2 3 4

Switch bank

CR2032 battery

Trim adjust

Switch

(factory default shown)

CR2032

1 2

3 4

CR2032

1 2

3 4
