1. The largest log is placed in the front part of the grate with the notches facing upwards (see Figure 1 and Figure 2).
NOTE: The front log should be as far to the front of the grate as possible.
2. The second largest log (Log with Burner Notch) is to be placed on the second tier of the grate (See Figure 1 and Figure 2).
3. The back log is to be placed on the back tier. (See Figure 1 and Figure 2).
4. Place the top logs as shown in Figure 2 and Figure 3. Incorrect log placement can lead to the production of harmful carbon
monoxide while the unit is in operation. Be sure that the logs are correctly placed in the notches provided for them.
There should be no direct impingement of flames on any of the logs.
WARNING: Failure to position the parts specifically approved with this
heater may result in property damage or personal injury.
Models: SCVFR18LP, SCVFR18NG,
SCVFR24LP, SCVFR24NG
The decorative stone from the bag provided should be spread on the bottom tray of the grate. (SeeFigure 3) The stone should
not be placed on or near the burner. Contact with the burner can cause the production of carbon monoxide.
LOG PLACEMENT
DECORATIVE STONE
Page 6

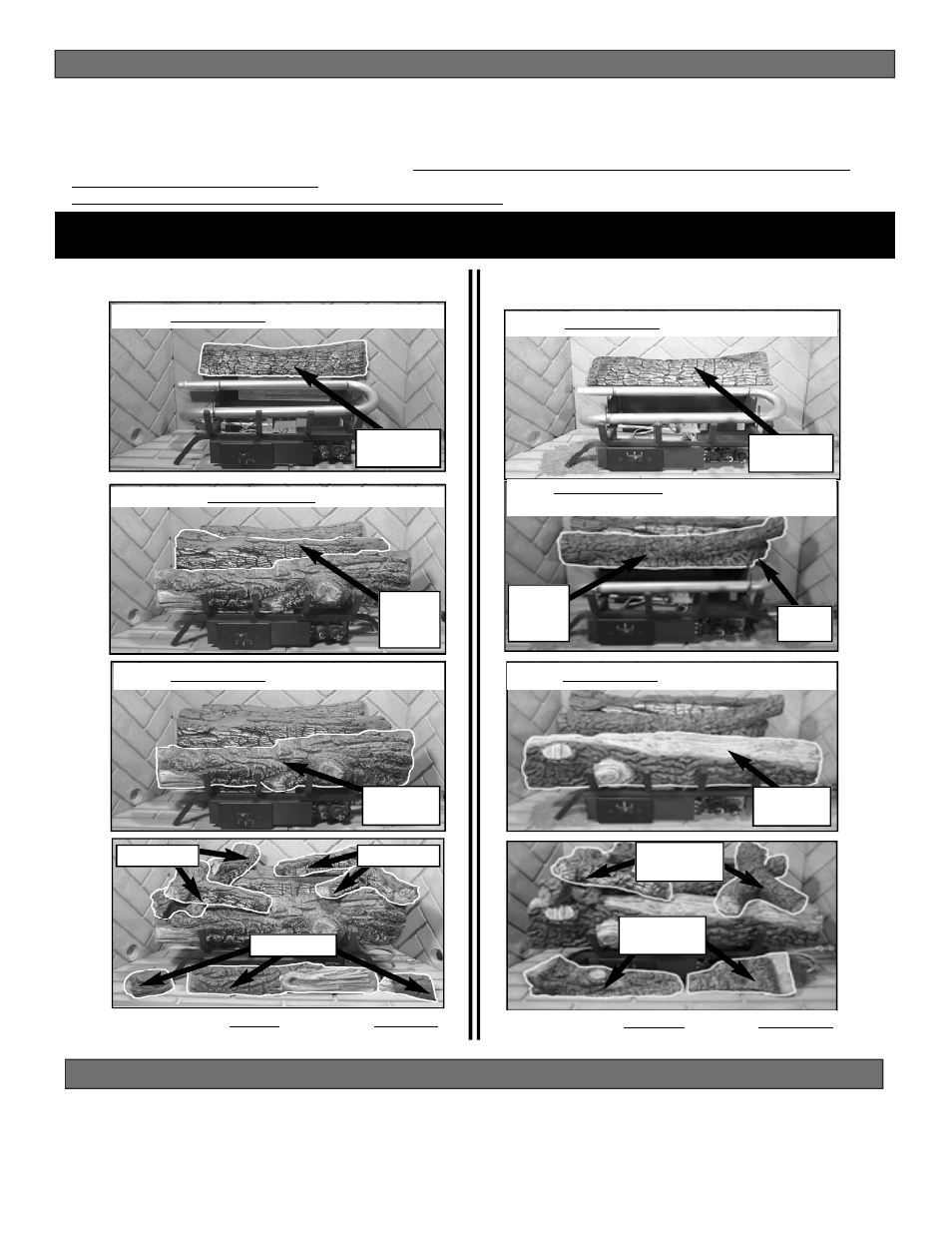

Place middle main log in position. Make sure the
log notch is placed over the burner.
Place middle main log in position.
Place front main log in front of burner system. Place front main log in front of burner system.
Place back main log on back of burner frame.
Place back main log on back of burner frame.
Middle
Main
Log
Middle
Main
Log
Log
Notch
Arrange remaining 2 top logs. Then place 2 cover logs
in front of control valve and remote sen sor.
Arrange remaining top logs. Then place the cover logs
in front of control valve and remote sen sor.
Two (2)
Top Logs
Two (2)
Cover Logs
Top Logs Top Logs
Cover Logs
MODEL:
VFMR24NG
Front Main
Log
Front Main
Log
