Installation, Repeater mode setup – StarTech.com WFREPEAT300N User Manual
Page 6
Instruction Manual
3
Installation
Repeater Mode Setup:
1. Connect the Repeater to an available AC electrical outlet.
2. Wired Setup: Connect an RJ45 Ethernet cable from the Repeater to your computer.
Wireless Setup: Connect to the wireless network ‘WiFi-Repeater’.
3. The default IP address on the Repeater is 192.168.10.1; configure your computer to
a matching network address (192.168.10.x, where ‘x’ is between 2~255) with subnet
set to 255.255.255.0 and gateway to 192.168.10.1.
4. Open a web browser window and enter 192.168.10.1 into the address bar. This will
bring up the login prompt for the Repeater. The default user name and password
are ‘admin’ (without quotes).

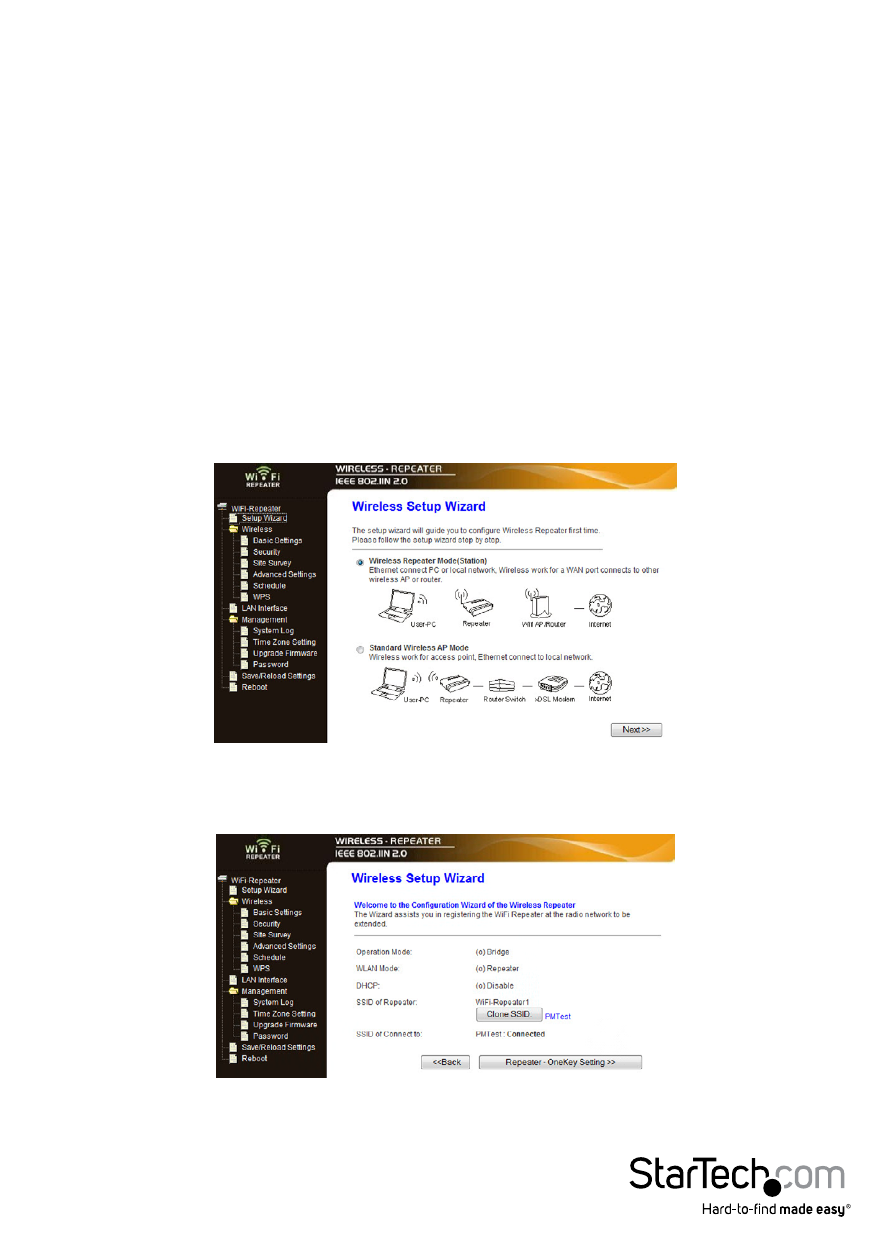

5. From the main menu on the left side of the web interface, click the ‘Setup Wizard’ link
followed by the ‘Wireless Repeater Mode (Station) option. Click ‘Next’ to continue.
6. The next screen will list some basic configuration information, so click the ‘Repeater –
OneKey Setting’ button to continue, followed by the ‘Wireless Network Selection’ button.
