Instruction Manual

4

Installation

Din Rail / Wall Bracket Installation

If you are mounting the POEINJ1GI product onto either a DIN Rail or to a wall, you will

first need to attach the appropriate bracket(s) to the device as shown below.

Hardware Installation

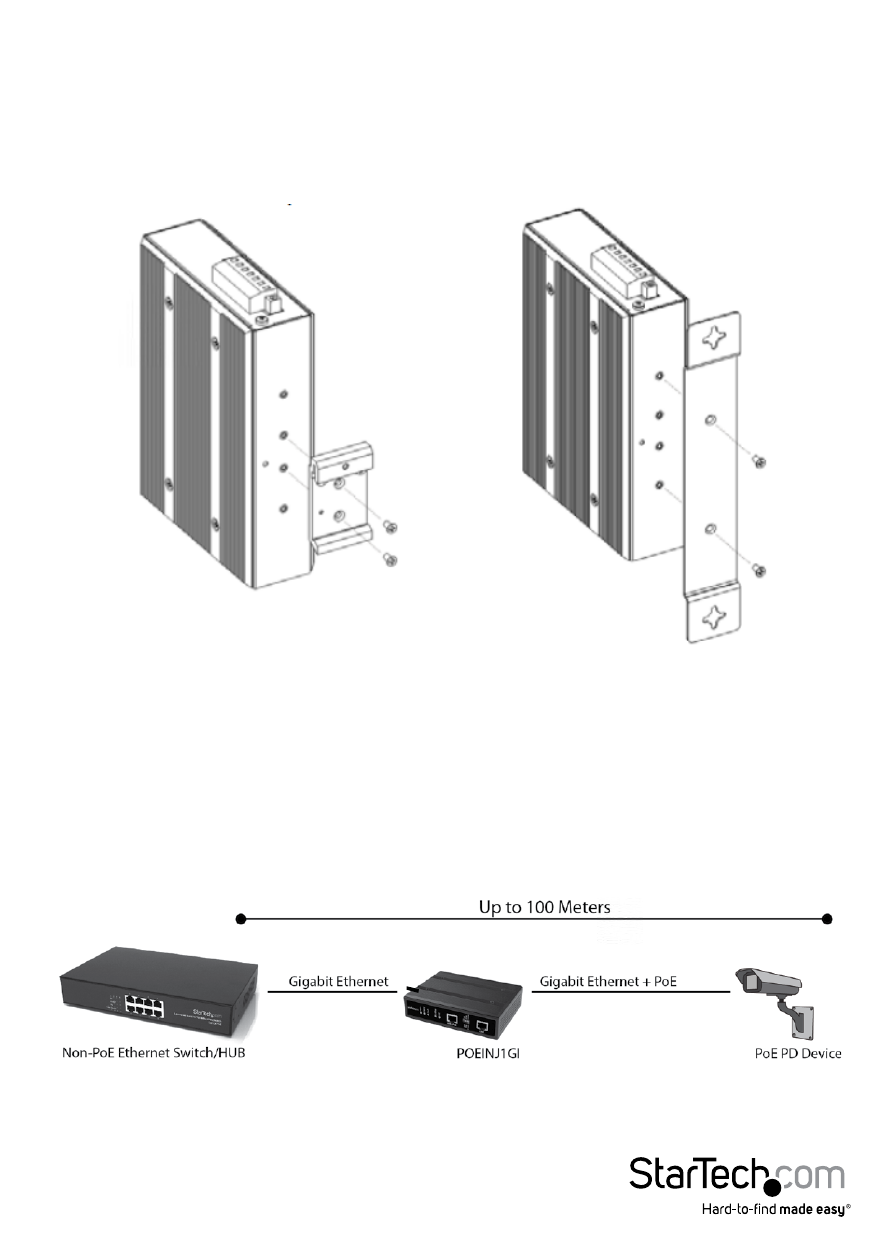

1. Connect an Ethernet cable from the desired source network device (i.e. computer,

router, switch, etc.) to the “GbE” RJ45 connector of the POEINJ1GI unit.

2. Connect the terminal block power source(s) to the POEINJ1GI unit.
3. Connect an RJ45 terminated Ethernet cable to the “GbE+PoE” connector on the

POEINJ1GI unit. The other end of the cable will either connect directly to a PoE+ /

PoE-compliant device, or to a POE Splitter device to separate data and power.

DIN Rail

Wall Mount
