Product diagram, Terminal block power connector – StarTech.com POEINJ1GI User Manual
Page 4
Instruction Manual
1

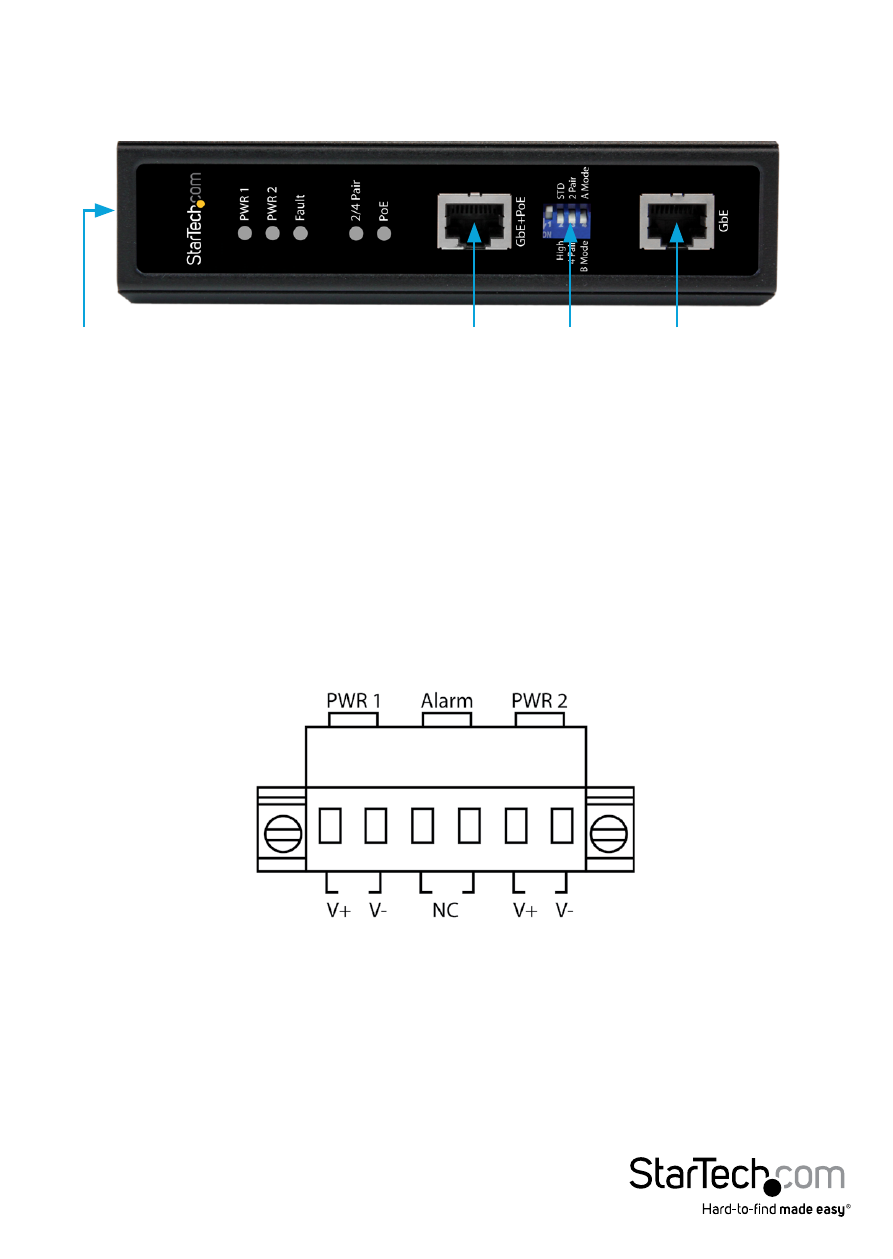

Product Diagram
Terminal Block
Gigabit
PoE Port
Dip
Switch
Gigabit
Data
Port
Terminal Block Power Connector
A removable terminal block provides both power and alarm (Normally Closed)
connections. Power can be provided through the dual inputs from separate sources.
The alarm relay contact can be wired into an alarm circuit which senses an alarm
condition when the contact is broken. The alarm relay is normally closed when there is
no alarm condition (both PWR1 and PWR2 have source power). If either or both PWR
have no power input, the alarm relay will "open".
