Instruction Manual
4

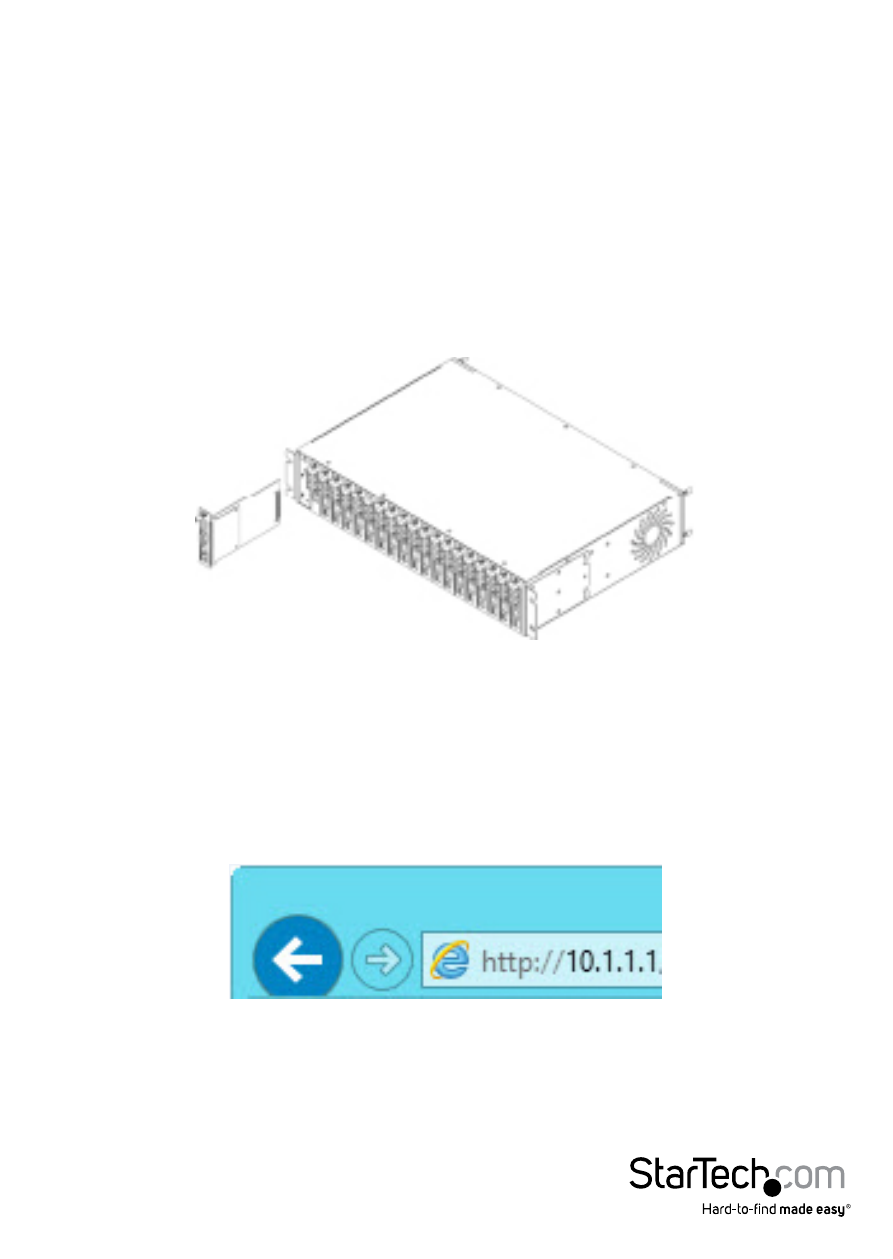

Installation into ETCHS2U Chassis
The ETCHS2U chassis supports the full line of StarTech.com ET series 2 media
converters, which can be installed in a mixed fashion to suit your environment. The
cards are designed to be hot-swappable, meaning the chassis need not be powered off
in order to remove or insert a card.
1. If the chassis slot was previously unused, loosen the screw at the top of the slot to
remove the cover plate
2. Align the card with the desired slot of the chassis and gently slide the card into the
groove to seat the power connection
3. Re-tighten the captive screw to hold the card in place
Operation
The media converter can be configured via a web console, accessible through any web
browser by using its IP address.
1. Open your desired web browser and enter the IP address for the device into the
address bar (Default IP: 10.1.1.1).
2. Enter the username / password (Default: admin / admin) and click Login.
