Installation
1. Connect the fiber optic network cable from a computer/switch/media converter to
the LC connector on the media converter.
NOTE: When connecting the fiber cable, make sure to connect the Tx (transmit)
terminal on one end, with the Rx (receive) terminal on the other end.
2. Connect a UTP Ethernet cable, from a computer/switch to the RJ45 jack on the
media converter.
3. Connect the power adapter to the media converter.

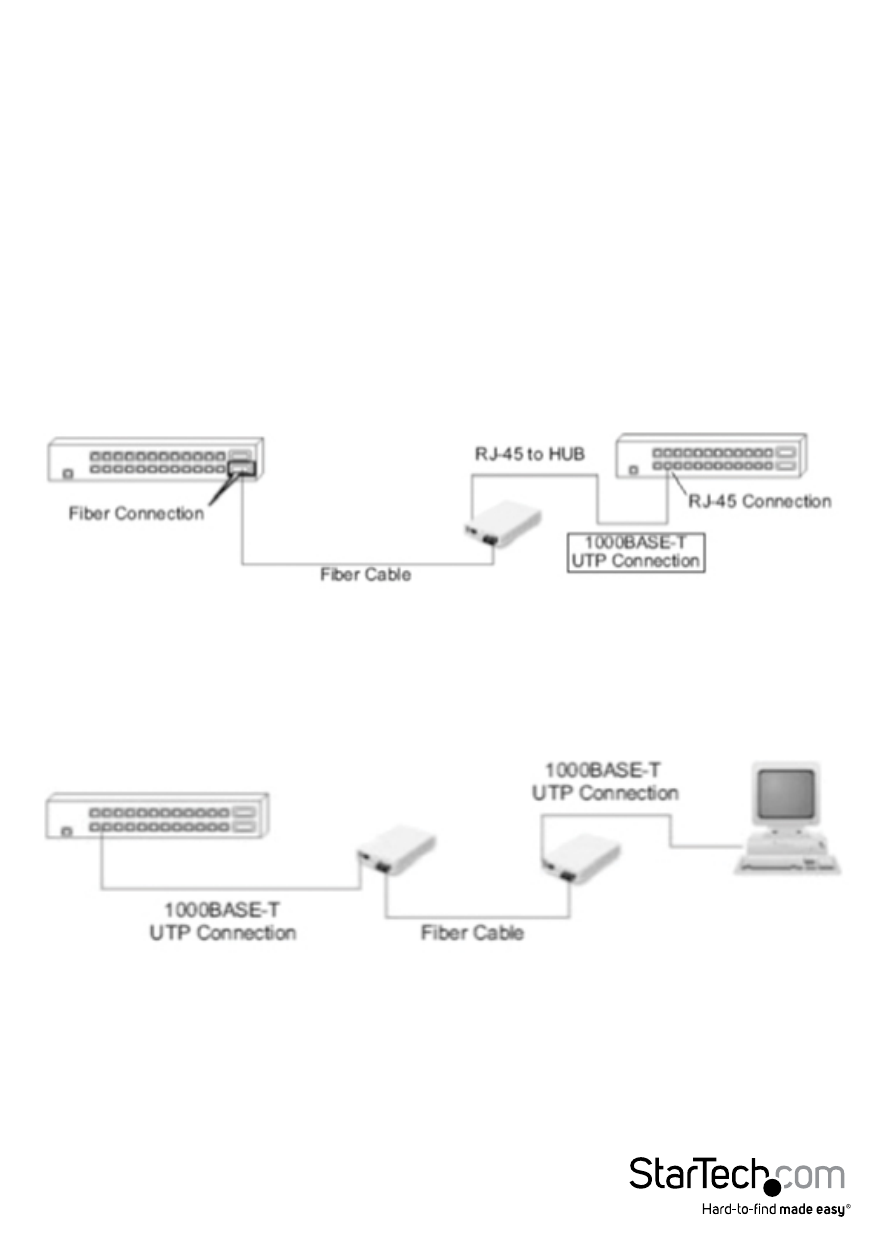

The following example illustrates the connection scheme when connecting from a
1000BASE-T Ethernet port of a hub/switch to a 1000BASE-SX/LX port of another hub/
switch. Through the fiber media converter:
The following example illustrates the connection scheme when connecting from a
1000BASE-T Ethernet port on a hub/switch to a 1000BASE-T Ethernet Network Interface
Card (NIC) in a computer through the fiber media converter:
