Instruction Manual
15
Specifications

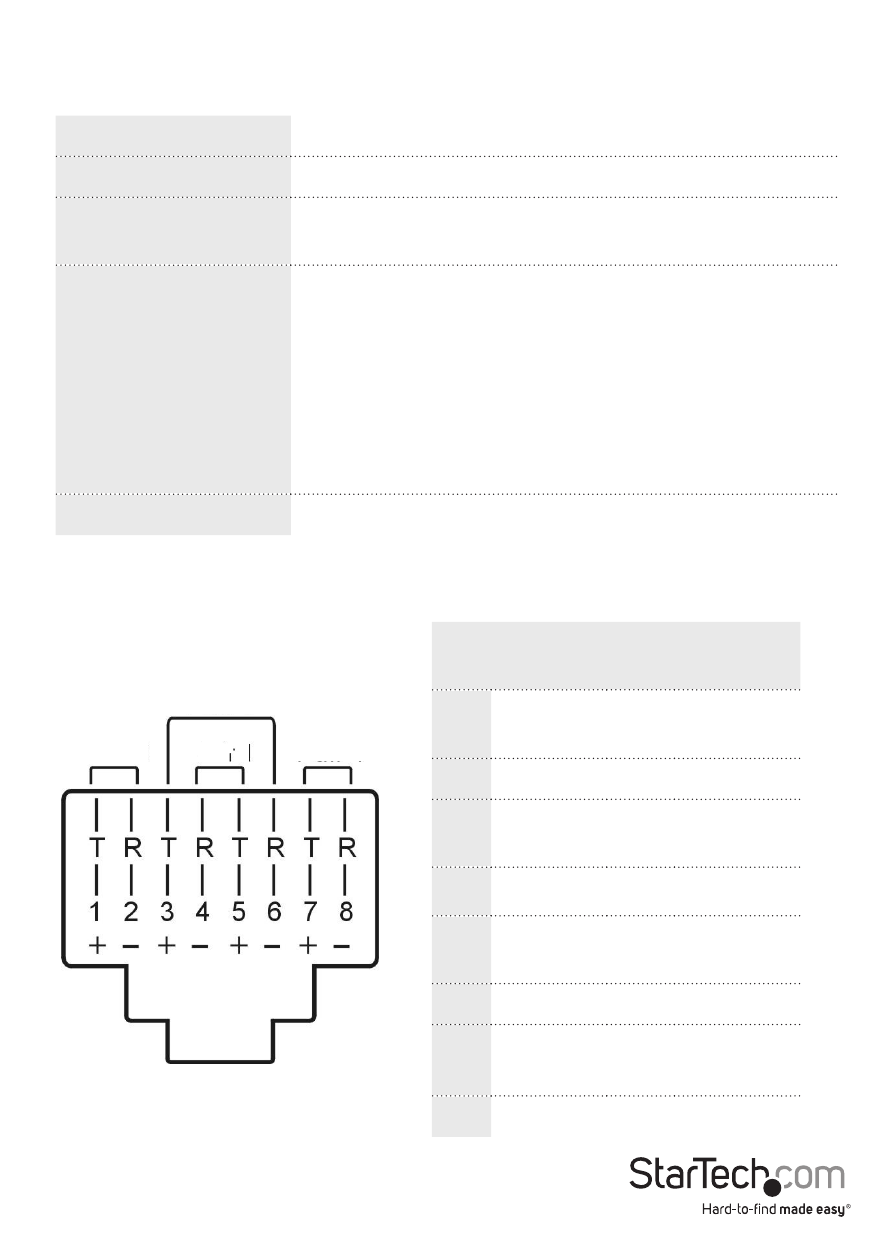

RJ-45 Connector Pinout
Maximum Resolution 1600x1200/1920x1200 (at maximum UTP cable length)
Maximum Range 948 feet (300 meters)
Network Cabling
Type
Straight-through Unshielded Twisted Pair (UTP)
Cat. 5/5e/6
Connectors
Each, Host and Remote Unit
1 x DE-15 VGA female
1 x DE-15 “Computer” female
1 x RJ-45 Ethernet female
2 x USB type A female (for keyboard/mouse only)
1 x DC Power
Power Adapter 9~12VDC, 600mA, center positive
Pin
Wire
Color
Pair Function
1
White/
Orange
2 T
2 Orange 2 R
3
White/
Green
3 T
4 Blue 1 R
5
White/
Blue
1 T
6 Green 3 R
7
White/
Brown
4 T
8 Brown 4 R
Pair 1
Pair 3
Pair 2 Pair 4
