Adhesive Rubber Feet
For desktop operation, you may stick the four round rubber feet (supplied with the unit) to the
bottom of the StarView. Do not use the rubber feet with the rack mount option.
Console Connection
Before installation make sure all devices and computers to be connected to the SV431H have
been turned off.

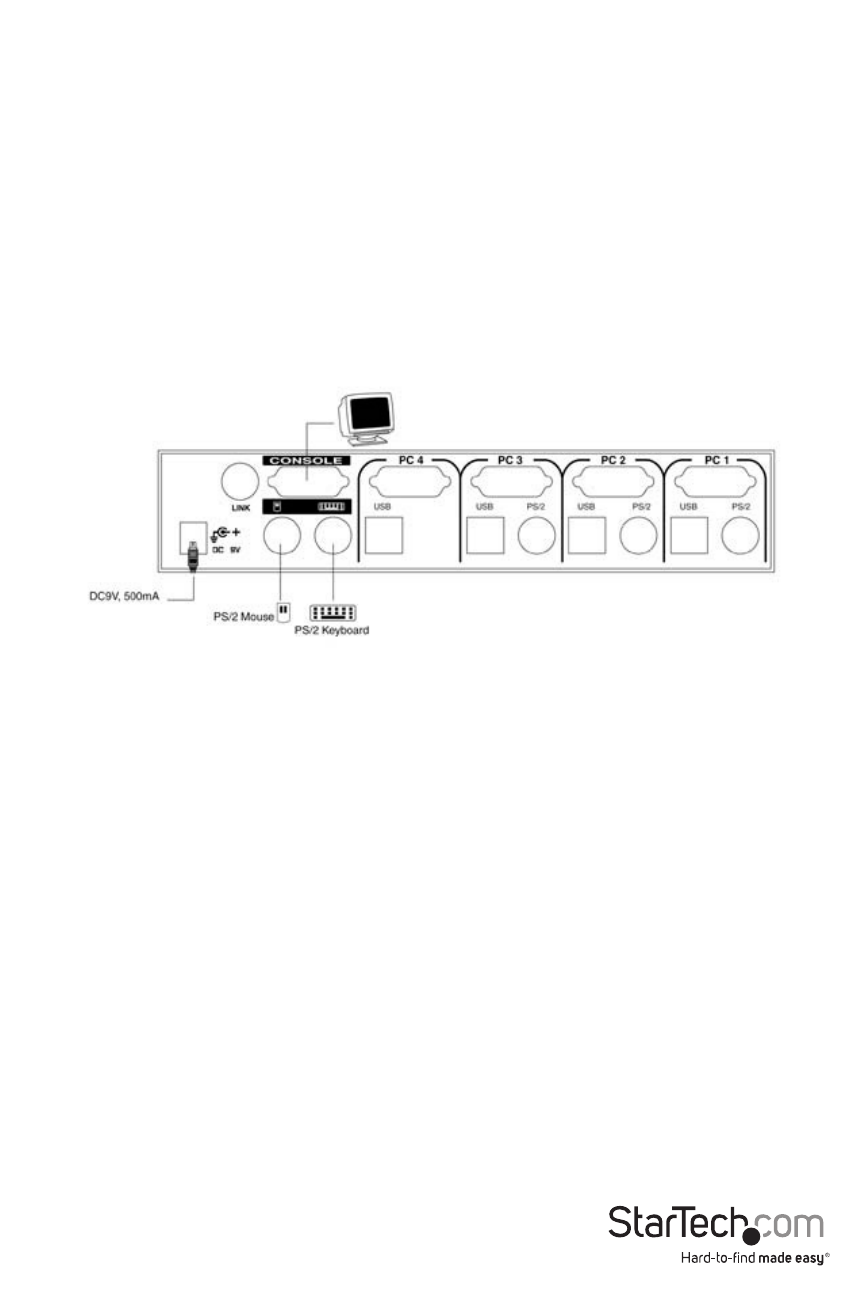

Plug you monitor to the consoles VGA port; connect the PS/2 mouse and keyboard to the
console port marked with a mouse and a keyboard as shown in figure below.
Computer Connection
Use a HDB15 male-to-female cable to connect from your computers VGA port to the SV431H
VGA port as shown on the following page.
For USB computers: Use a USB A-B cable to connect from one of the SV431H PC ports to the USB
port on the corresponding computer (series A connector), as shown on the following page.
