StarTech.com SV431DPUA - Manual (Page 7)

Instruction Manual
4
*installation pictures are representations only

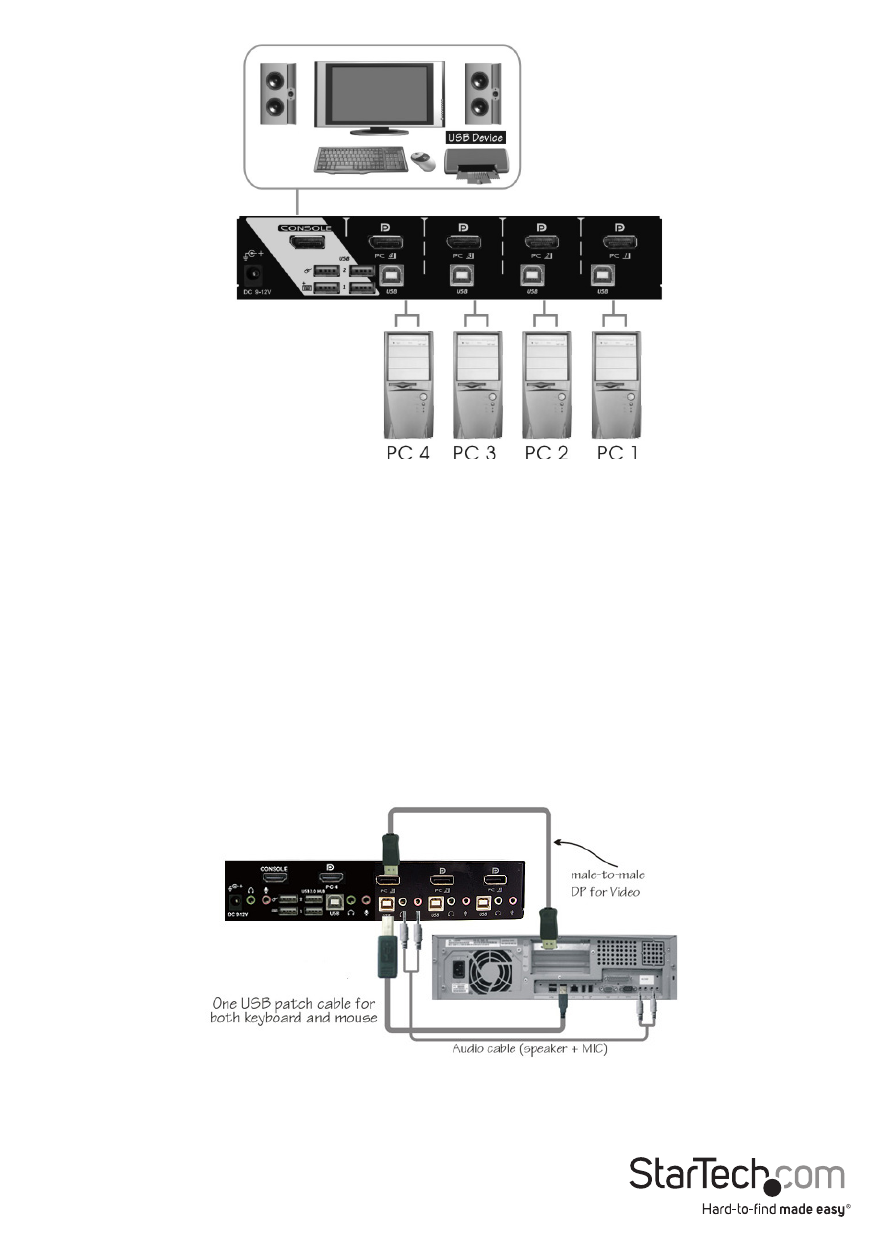

1. Plug a monitor into the Console’s DisplayPort connector; plug a USB keyboard and a
USB mouse into the dedicated USB keyboard and mouse ports on the KVM switch. If
using audio, also connect speakers and/or a microphone with 3.5mm mini-jack plugs.
2. Use a male-to-male DisplayPort video cable to connect the DisplayPort connector
on the computer’s video card, to one of the KVM’s PC ports (i.e. PC1)
3. Use a USB type A-B Cable to connect the KVM’s USB port (type B, square connector)
for the PC port used in Step 2, and the USB port on the computer (type A, flat
connector). If using audio, connect 3.5mm mini-jack cables from the PC port to the
computer sound card.
NOTE: A DisplayPort + USB + Audio KVM combo cable is also available which can be
