Instruction Manual
2
Installation
These instructions assume that the display has at least one available set of inputs that
use Component Video, as well as RCA or Digital Coax audio capability, and that all the
devices have their cables attached. You may need to disconnect an existing device
from the display to make an input available and re-connect that device once the video
switch has been suitably configured.
Connecting Devices to the Switch
NOTE: These instructions assume that all devices connected to the switch use the
same connection that the switch will use to connect to the display (i.e. the switch
connects to the Component Video input on a television, so all devices will be
connected to the switch using Component Video cables).
1. Situate the switch near the display and the devices you wish to use with the switch.
2. Using the color-coding on the jacks, connect one of the designated components to
the corresponding ports marked IN1.
3. Connect up to three additional devices following the instructions in step 2.
4. Connect RCA audio or digital coax cables and a component video cable to the ports
labeled OUTPUT on the video switch. Connect the opposite end of those cables to
the appropriate connectors on the display (normally marked as A/V IN or similar).
5. Connect the power adapter (provided) to the port marked DC 9V on the video
switch. Connect the opposite end to a wall outlet or other suitable power source.
6. The video switch is now ready to use.

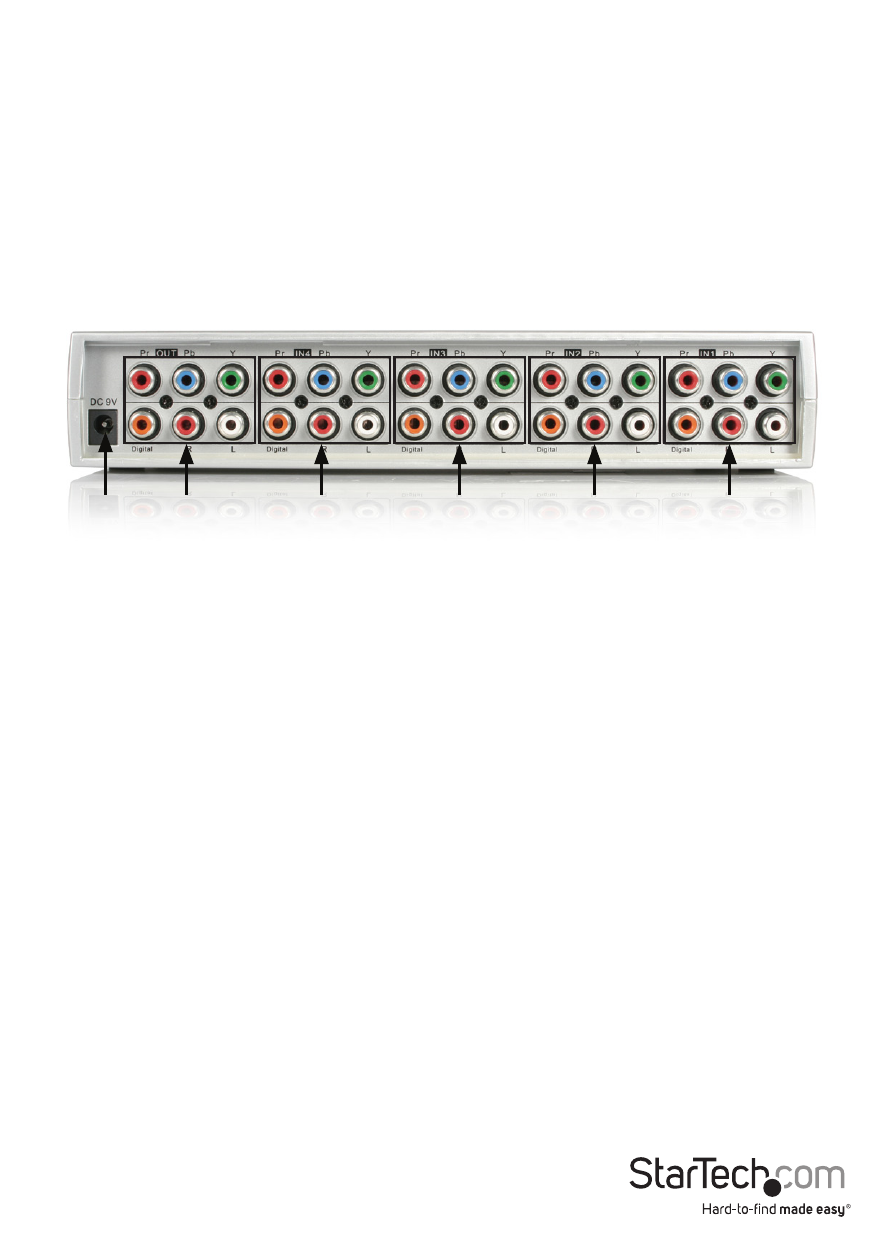

DC 9V Output Input 4 Input 3 Input 2 Input 1
