Instruction Manual
6

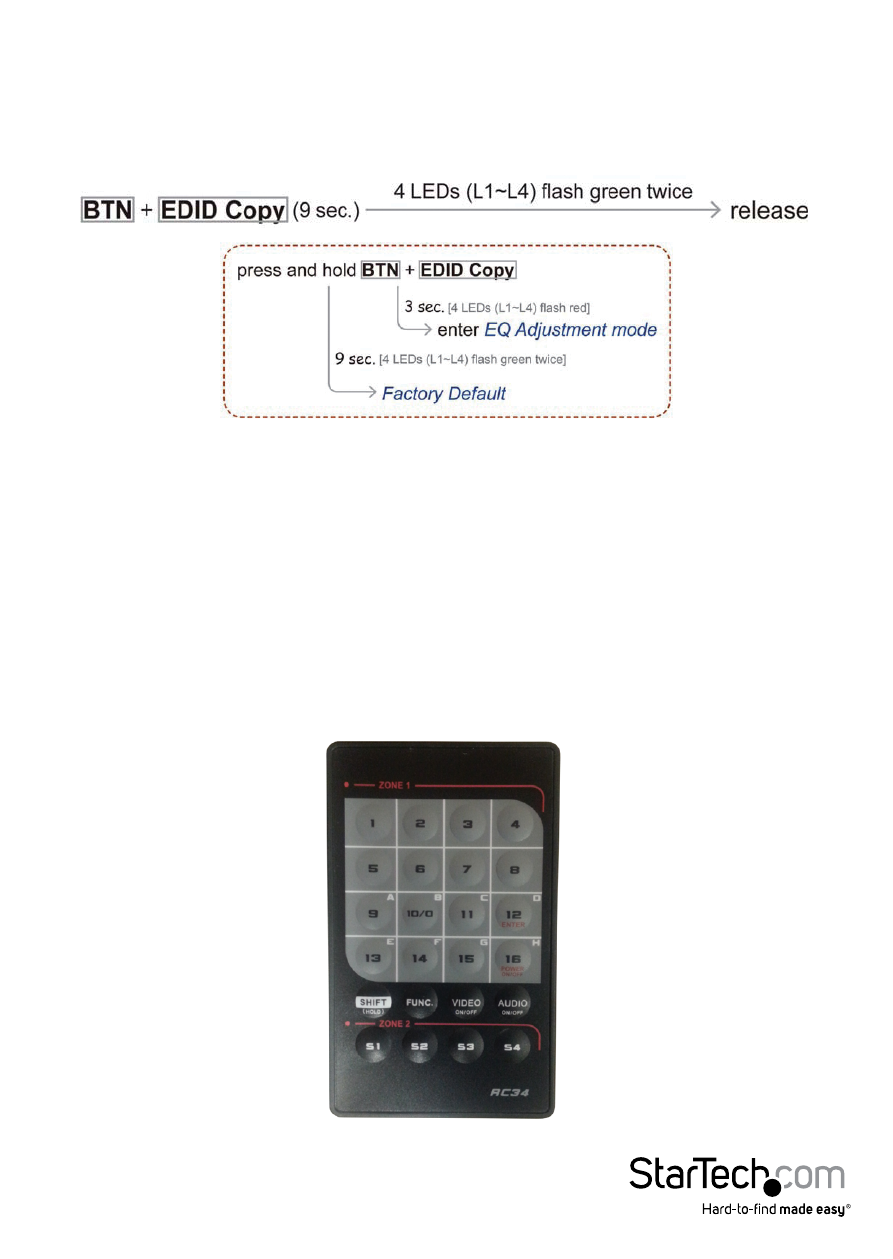

Remote Control
Auto/Priority/Manual Mode
Press 1, or 2 to switch between Input source #1, or Input source #2 respectively.
Matrix Mode
1. Output #1: To switch between video input sources #1 and #2 on video Output #1,
press 1 or 2 respectively on the remote control.
2. Output #2: To switch between video input sources #1 and #2 on video Output #2,
press S1 or S2 respectively on the remote control.
2. Release the buttons when the LED port selection indicators flash green twice.
Note: These same buttons are also used to adjust video equalization, as a result the
LEDs will flash red before they flash green. Be sure to continue to hold the buttons
until the LEDs flash Green twice.
3. The unit has now been restored to factory settings.
