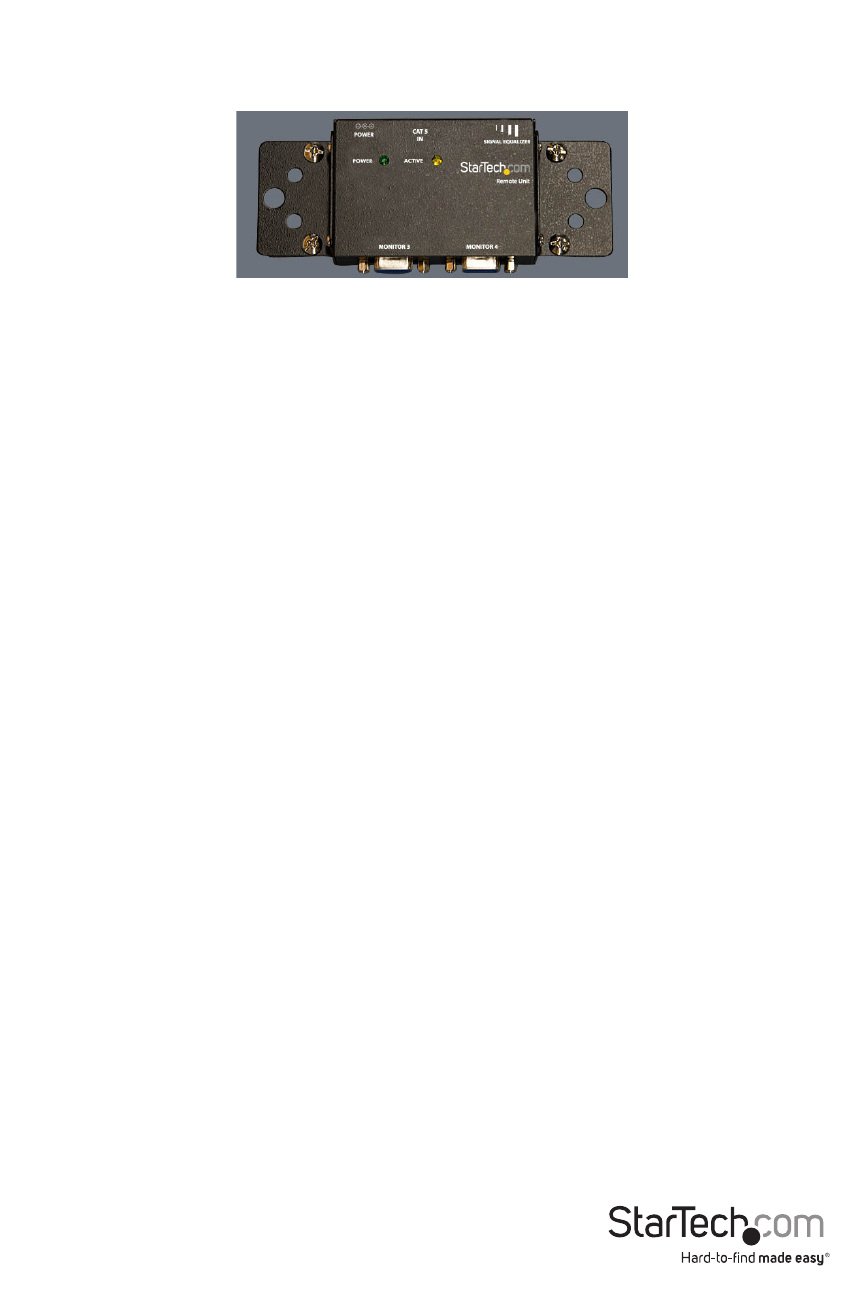

OPTIONAL: with the optional mounting brackets (StarTech.com ID: ST121MOUNT), any
ST121 series receiver can be securely mounted to a wall or other surface.
5. Using a standard UTP cable with RJ45 terminators on each end, connect the Cat5 OUT
port provided by the Transmitter Unit to the Cat5 IN port provided by the Extender
Unit.
6. Connect the Extender Unit to an available power outlet, using the adapter provided.
OPTIONAL: You can connect two monitors directly to the Extender Unit. To do so, simply
connect the monitors to the MONITOR OUT ports on the Extender Unit.
7. Repeat step 4 to 7 for each Receiver Unit that will be used in conjunction with an
Extender (up to 8).
8. Situate the Receiver Unit up to 150m (492ft) away from the Extender Unit, so that it is
near the intended display(s) as well as an available power source.
9. Connect the Receiver Unit to the power source using the power adapter provided.
10. Using a standard UTP cable with RJ45 terminators on each end, connect the Cat5 OUT
port provided by the Extender Unit to the Cat5 IN port provided by Receiver Unit.
NOTE: Each Receiver Unit can be connected to two separate displays simultaneously. To
connect two monitors, simply connect a VGA cable from the second Monitor Out port to
a second display.
