Specifications - Continued
Distance/Resolutions
Please note: It is recommended that CAT5 cable be used, as it offers superior
performance to other standards. For example, CAT6:
Cable Type Supported Distance Supported Resolutions
CAT.5/5E 50M 2048 x 1536
100M 1280 x 1024
180M 1024 x 768
200M 800 x 600
300M 640 x 480
CAT.6 30M 1920 x 1440
50M 1280 x 1024
100M 800 x 600

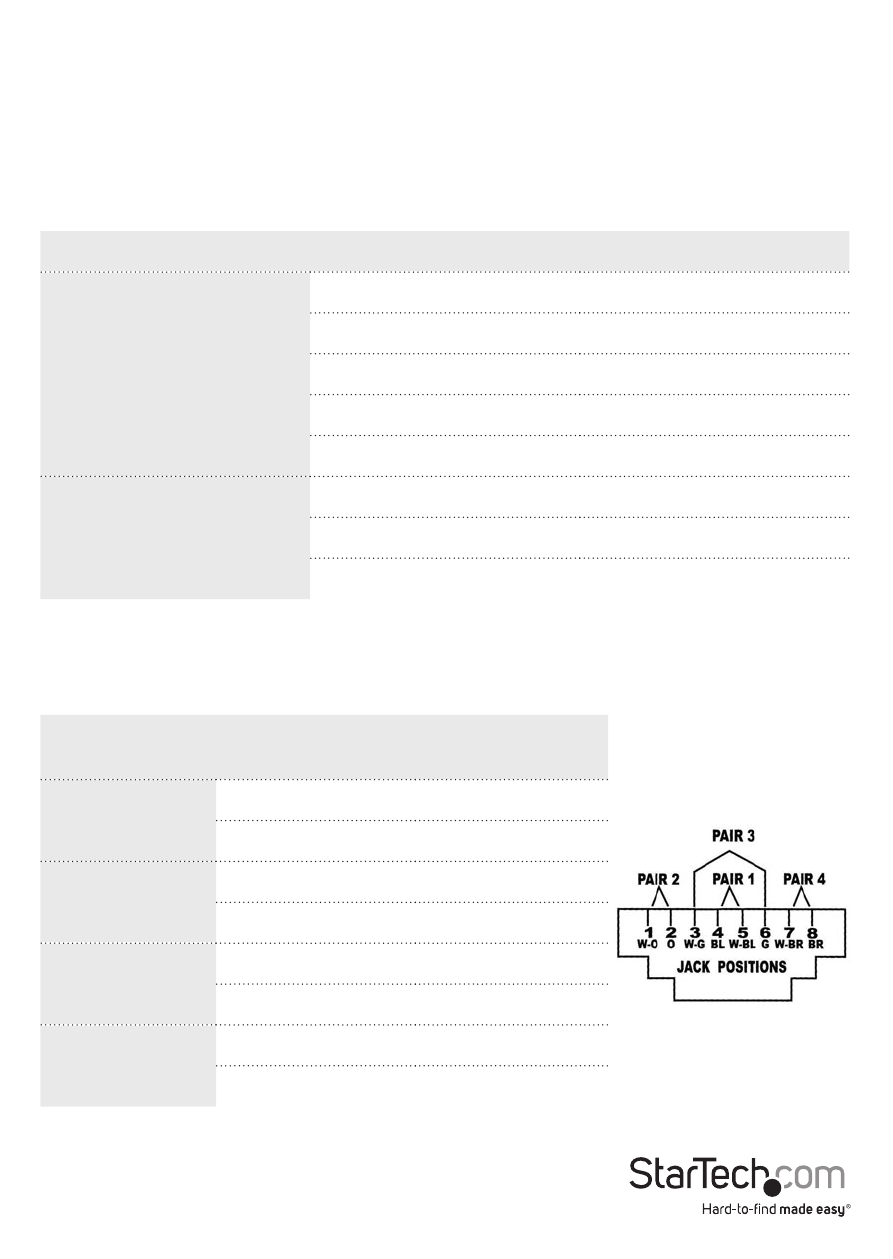

Wiring Information and Coding
Conductor
Indentification
RJ-45 Pin
Assignment
Color Code for
Conductor
Pair 1 5 White-Blue
4 Blue
Pair 2 1 White-Orange
2 Orange
Pair 3 3 White-Green
6 Green
Pair 4 7 White-Brown
8 Brown
