Instruction Manual
6
Hardware Operation
Manual Matrix Operation
1. Press the Output select button (that corresponds with the numbered output
display) you wish to select.
2. Press the output select button repeatedly until your desired input number (that
corresponds with the numbered input device) is illuminated on the LED indicator.

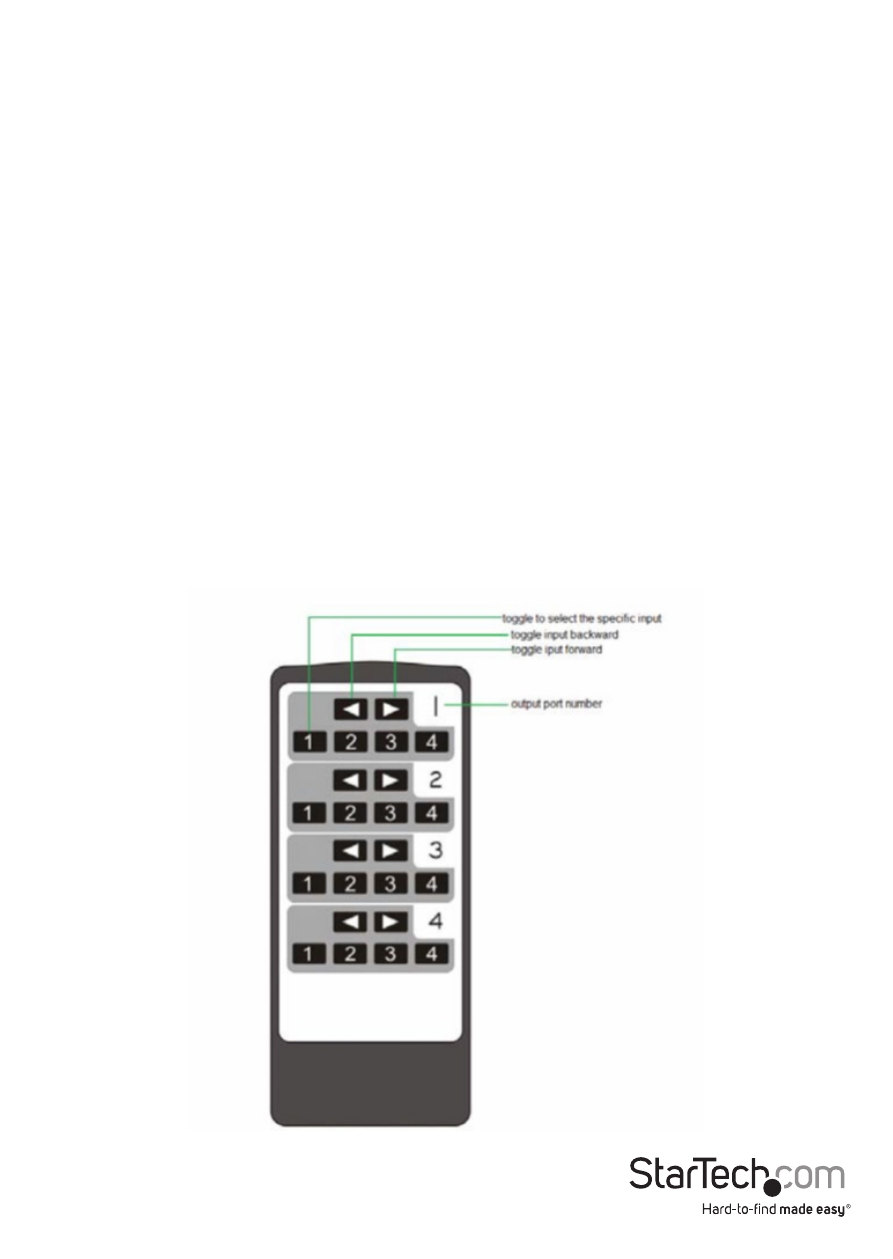

Remote Control Operation
1. Each output port is represented by the number above each of the button groups.
Use the group of buttons that corresponds with the numbered output display you
wish to change.
2. Press the number of the input source number (that corresponds with the numbered
input device) you wish to be displayed on that specific numbered output port.
or
Press the left or right arrow buttons to toggle between input sources numerically,
until the input number (that corresponds that corresponds with your desired input
device) is displayed.
