Specialty Concepts PPC - Manual (Page 2)

NOMINAL
MODEL VOLTAGE OPTIONS
PPC 12 M - Outdoor enclosure -
24 NEMA 4X
36 P - 50 Amp charge current
48 (12 or 24 volt units)
Specifications and product availability subject to change without notice.
PART NUMBERING KEY
EXAMPLE: Model
Nominal Voltage
Options
PPC - 12 - P
PARAMETERS UNITS NOMINAL VOLTAGES
12 v 24 v 36 v 48 v
Charge Current, Continuous (1) (Amps) 30 30 30 30
Charge Current, Max (60 seconds) (2) (Amps) 39 39 39 39
Load Current, Continuous (3) (Amps) 30 20 15 15
Load Current, Max (60 seconds) (4) (Amps) 39 26 20 20
Array Voltage, Max Voc (Volts) 22 44 66 88
Operating Voltage @ Battery, Minimum (Volts) 8.5 17.0 25.5 34.0
Quiescent Current (5) (Milliamps) 10 10 10 10
Current Consumption, Charging (6) (Milliamps) 160 160 80 80
Current Consumption,
Load Disconnected (7) (Milliamps) 140 100 70 70
Voltage Drop, Typ. (Array to Battery) (Volts @ Max rating) .15 .15 .15 .15
Voltage Drop, Typ. (Battery to Load) (Volts @ Max rating) .40 .40 .40 .40
Full Charge Termination (8) (Volts) 14.8 + .2 29.6 + .4 44.4 + .6 59.2 + .8
Full Charge Resumption (Volts) 12.8 + .2 25.6 + .4 38.4 + .6 51.2 + .8
Load Disconnect (9) (Volts) 11.5 + . 2 23.0 + .4 34.5 + .6 46.0 + .8
Load Disconnect Adjustment Range (Volts) 11.0 to 12.0 22.0 to 24.0 33.0 to 36.0 44.0 to 48.0
Load Reconnect (Volts) 13.0 + .3 26.0 + .6 39.0 + .9 52.0 + 1.2
Float Voltage (Volts) 14.1 + .2 28.2 + .4 NA NA
Float Current, Max (Amps) 3 1 NA NA
Meter Accuracy, Voltage 5 % 5 % 5 % 5%
Meter Accuracy, Current 5 % 5 % 5 % 5%
Temp. Compensation coef.(from 25
°
C) (Volts/
°
C) -.03 -.06 -.09 -.12
Operating Temp. Range (
°
C) -20 to 50 -20 to 50 -20 to 50 -20 to 50
Storage Temp. Range (
°
C) -55 to 85 -55 to 85 -55 to 85 -55 to 85
Notes:
(1) 50 amp option available (avail. on 12, 24v units)
(2) With 50 amp option, value is 65 amps
(3) Non-inductive.
(4)
Carry only, Non-switching
(5) Both relays unenergized, red L.E.D.s off, typical value.
(6) Charge relay energized, red L.E.D. on, typical value.
(7) LVD relay energized, red L.E.D. on, typical value.
(8) Set-point adjustable. Refer to table.
Control SWITCH POSITIONS
Voltage A B C D
12 15.3 14.8 14.3 13.8
24 30.6 29.6 28.6 27.6
36 45.9 44.4 42.9 41.4
48 61.2 59.2 57.2 55.2
FULL CHARGE TERMINATION SET-POINTS

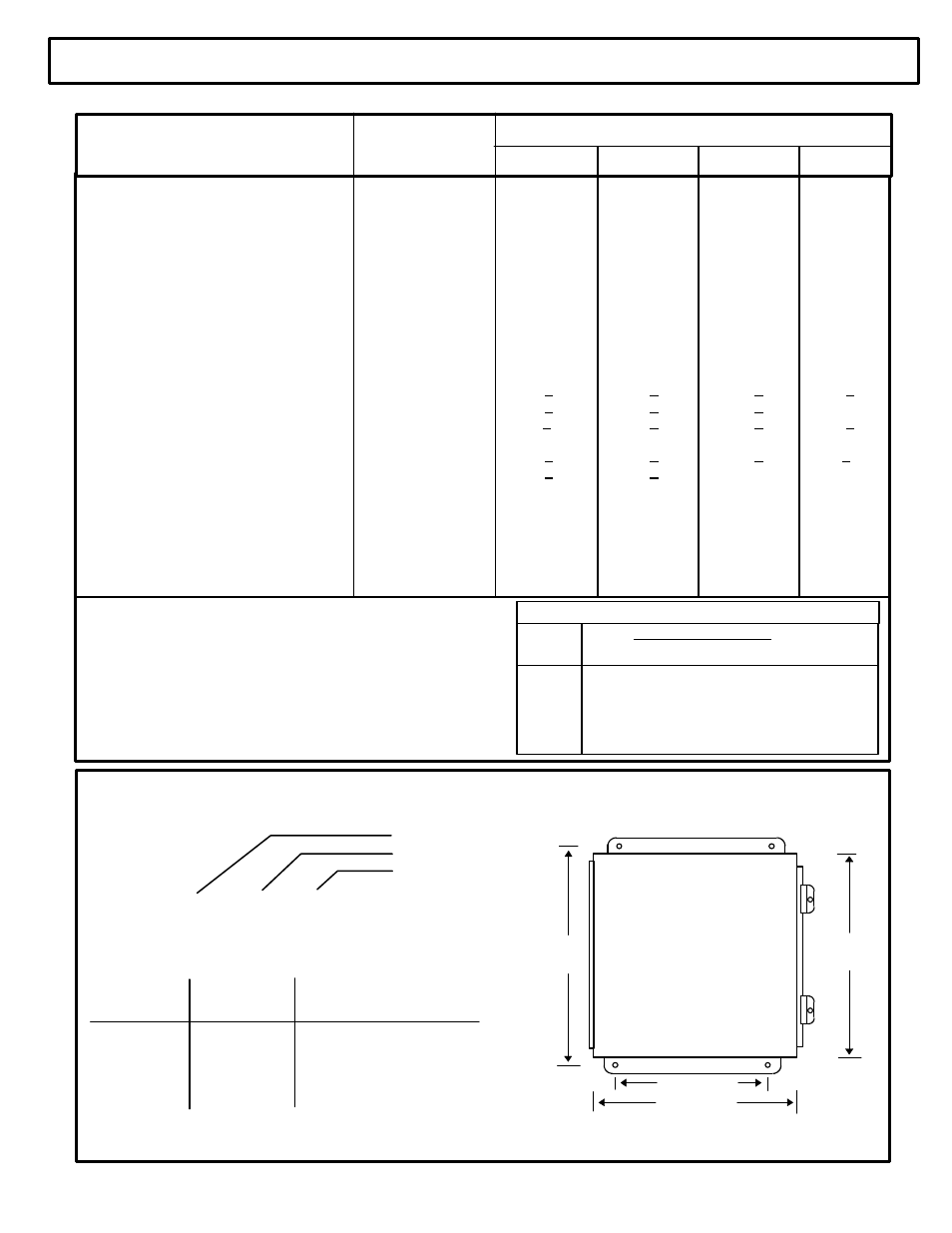

DIMENSIONS
In Inches (cm)
STANDARD ENCLOSURE (NEMA 13)
8.75 8.0
( 22.2 ) ( 20.3 )
6.0 ( 15.2 )
8.0 ( 20.3 )
Depth: 4.5 Inch ( 11.4 cm)
Shipping weight: 10 lbs. (4.5 Kgs.)
S P E C I F I C A T I O N S
