QUICK START

1. POWER
To power the unit, connect the included

DC

adapter power supply to

the

9V DC

jack

(A)

on the back panel. Note: Using a different supply

could damage the unit and void the warranty.

2. GUITAR/AUDIO CONNECTIONS
Next, plug your bass (or other instrument) into the jack labeled

GUITAR

IN (B)

via a standard ¼" cable. Connect your amp (or other audio device)

to the

GUITAR OUT

jack

(C)

, again with a standard ¼" cable. Both input

and output are mono signals.

3. SENSOR IN (optional)
To use your

BEF

Pro with a Hot Hand sensor, connect the sensor to the

SENSOR IN

(D)

jack and follow any instructions given with the sensor

4. BRIEF KNOB AND PEDAL DESCRIPTIONS
See Controls section for more details.

A EffEct:

selects desired filter type

B SwEEp RANgE:

adjusts the direction (up/down) and breadth of the

filter sweep or the depth of the

LFO

and Hot Hand modulation.

c fREquENcy:

adjusts the center frequency of the filter

4 | Quick Start

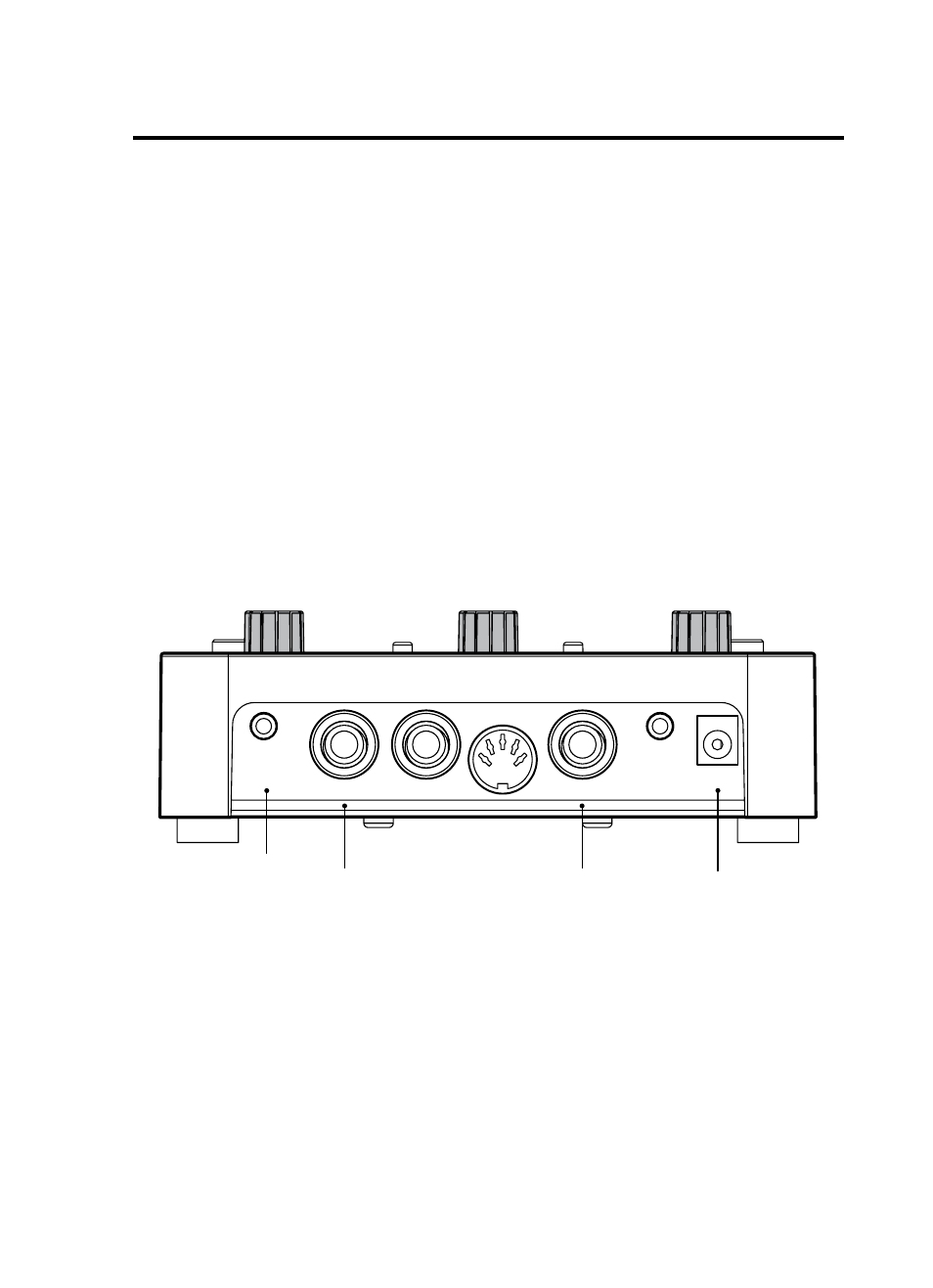

SENSOR

IN

SENSOR

OUT

GUITAR IN

GUITAR OUT

9V DC

EXP IN

MIDI IN

A

c

B

D
