6.3 Using Scope

Scope

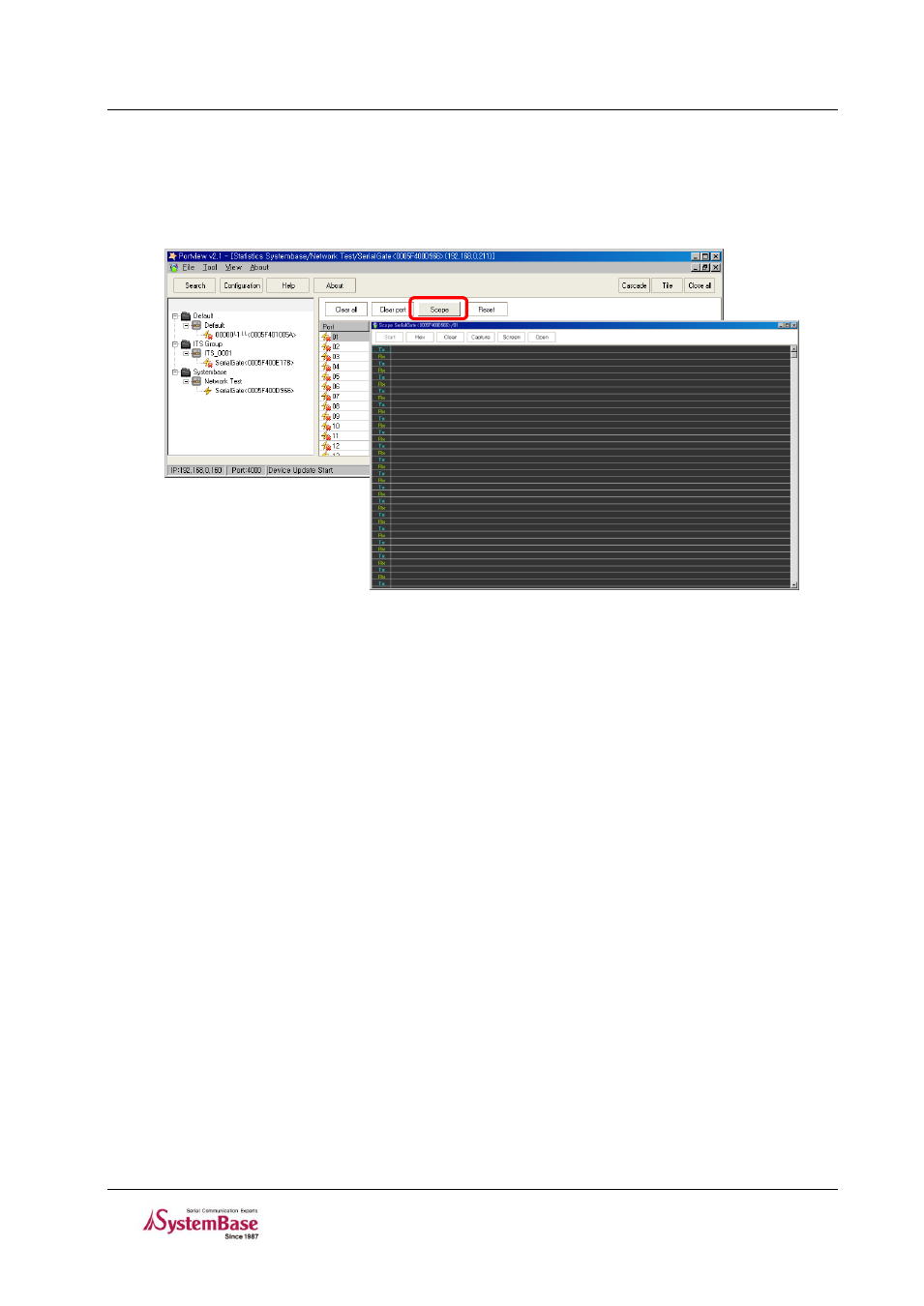

enables data I/O monitoring in both Hex and ASCII mode. Select the port and click ‘Scope’ to

open the scope window.

6.3.1 Scope Menu

 Start/Stop: Start or stop scope action.
 Hex/ASCII: Select the data display type. Hex means hexadecimal format, while ASCII means

ASCII code.

 Clear: Clear all output data displayed so far.
 Capture: Output data can be captured. Saving data is also possible.
 Screen: Background color and font can be changed.
 Open: Open any saved capture file.
