Solvline PortView V2.1a - Manual (Page 15)

PortView Chapter 4. Main menu
3-3

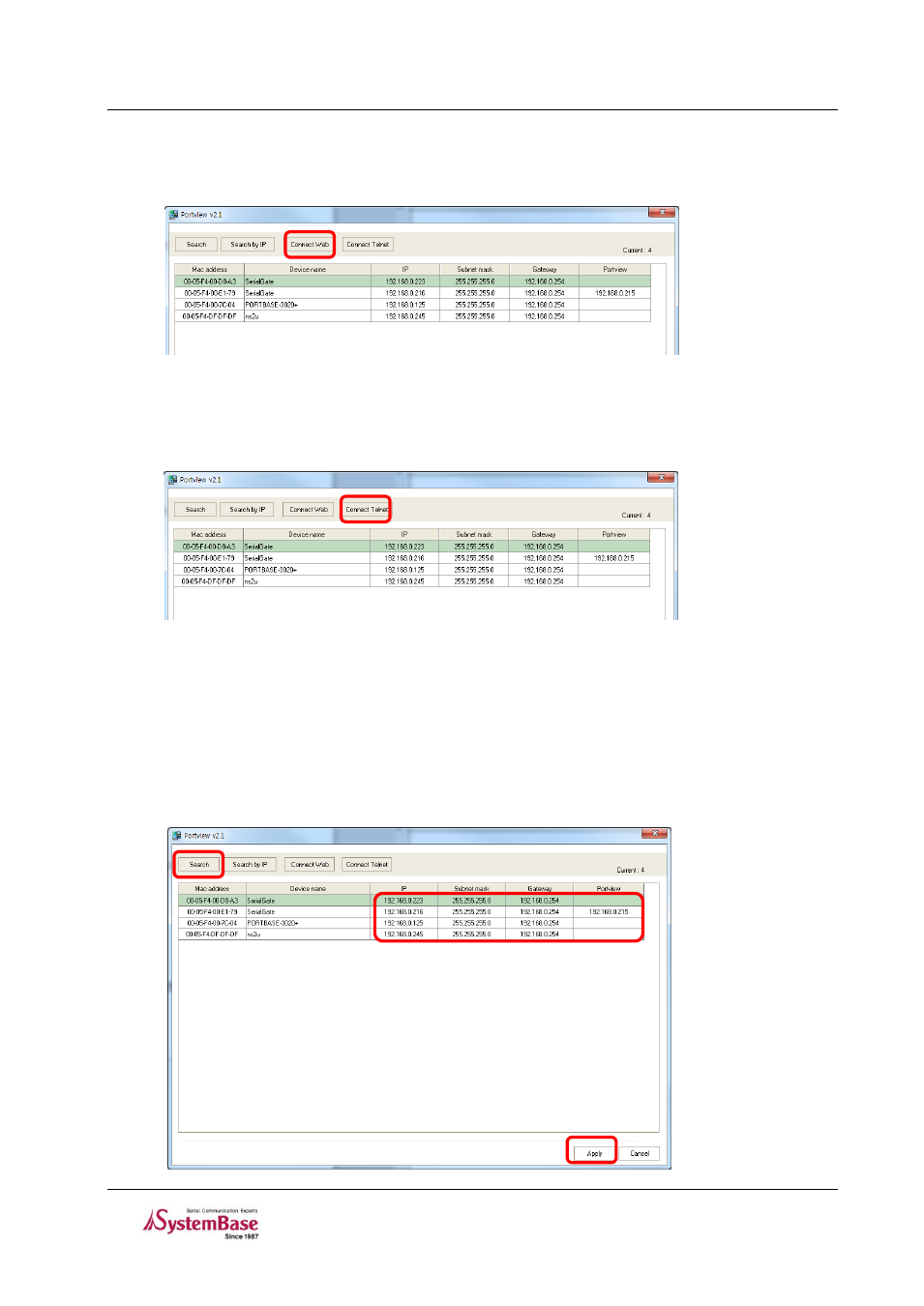

4.1.4 Web Connection
Web browser opens and connects to the selected IP address.
4.1.5 Telnet Connection
Telnet connection is attempted with the selected IP address.
4.1.6 IP Configure & Portview
You can modify the IP and enable the portview function via grid. After editing, Click the “Apply”
A temporary IP can be assigned here. As stated before, permanent changes need to be made through
either Telnet or Web. It is required that device servers be set to the same IP address range with that of
PC, and the IP address of the PC is displayed on the Detector’s upper part. If servers belong to different
network with the PC, use this menu to configure IP addresses to match PC configuration.
