27

Hardware

Multi-4/8 Under V1.5

2. RS422, RS485 Model

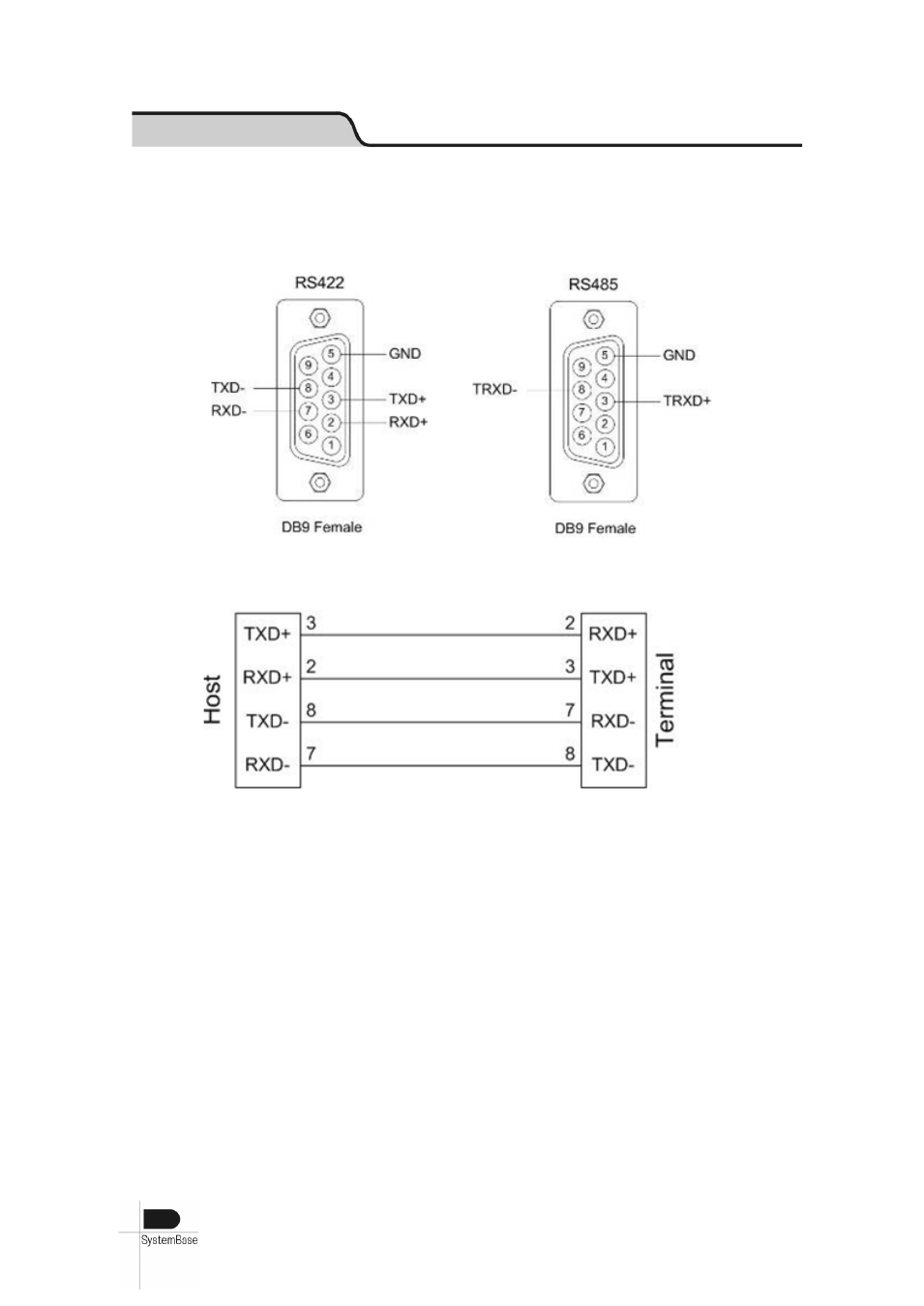

- DB9 Female Pin

- How to connect RS422 Point-to-point signal line
