3
Vermont Castings Madison
Specifications
Madison, Model 1655 Series
Maximum heat output ......................... 39,700 Btu’s/hr. 1
Area heated ...................................... Up to 1600 sq. ft. 2
Fuel size/type ...................................... 18” (46 cm) logs
Loading ..................................................... Front & Side
Chimney connector .................... 6” (150 mm) diameter
Chimney flue size ...................... 6” (150 mm) minimum
Flue exit position ........................................ Top or Rear
Primary air ... Manually set, thermostatically maintained
Ash handling system ..................... Removable ash pan
Glass panel ........................ High-temperature Infra-red
Weight ............................................................... 420lbs.
Width (Left leg - Right leg) ...................... 29” (59.0 cm)
Depth (Front Plate - Flue Collar) ............. 25” (64.0 cm)
Height ...................................................... 28” (79.5 cm)
1 This value can vary depending on how the stove is
operated, the type and moisture content of the fuel
used, as well as the design, construction and climatic
location of your home. Figures shown are based on
maximum fuel consumption obtained under laboratory
conditions and on average efficiencies.
2 These values are based on operation in building code-
conforming homes under typical winter climate condi-
tions in New England. If your home is of nonstandard
construction (e.g., unusually well insulated, not insu-
lated, built under ground, etc.) or if you live in a more
severe or more temperate climate, these figures may
not apply. Since so many variables affect performance,
consult your Vermont Castings Majestic Products
Company authorized dealer to determine realistic
expectations for your home.

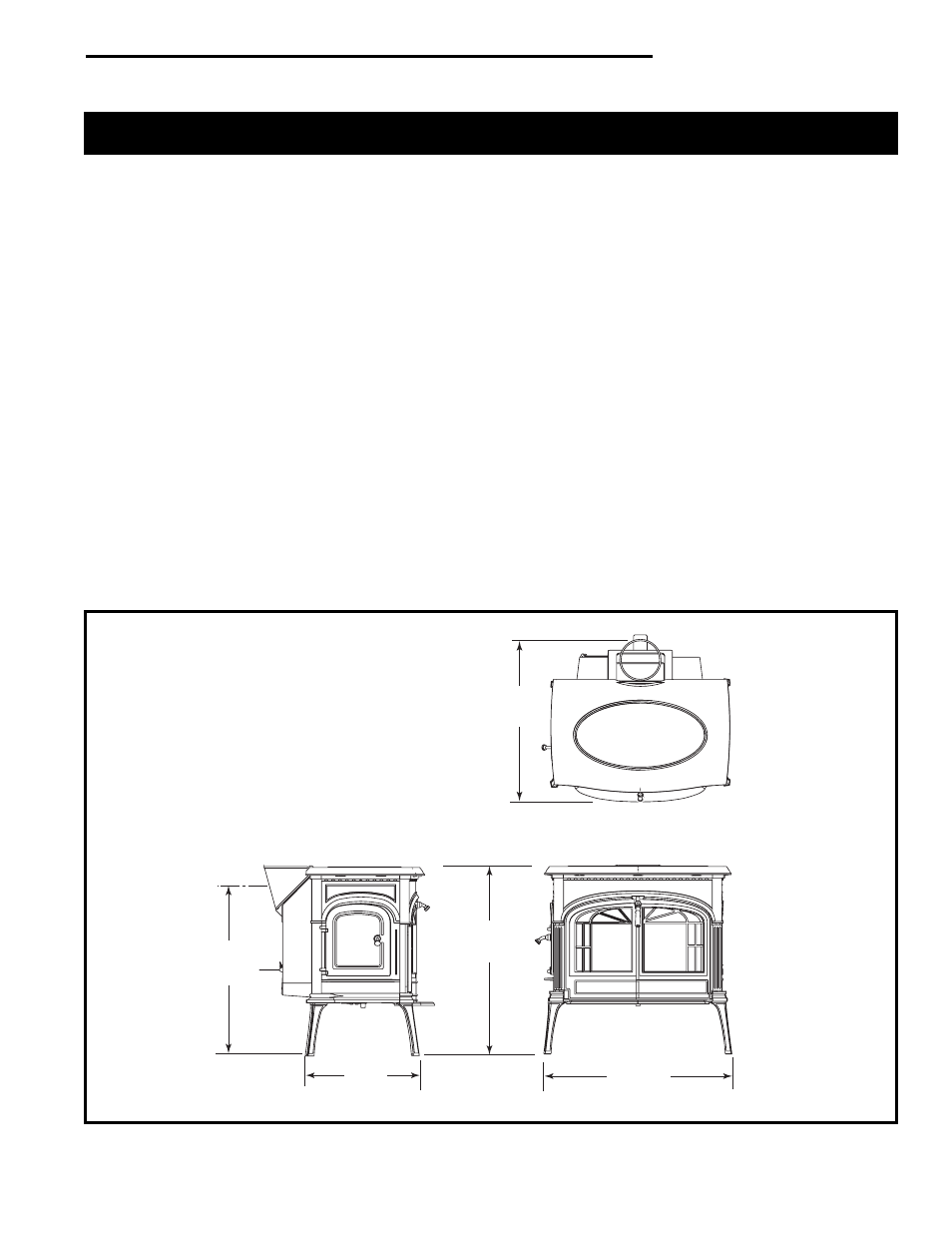

Fig. 1 Madison 1655 dimensions.
Drawings not to scale.
29”
(740mm)
28”
(710mm)
24 ³⁄₄ ”
(630mm)
18”
(470mm)
25"
(635mm)
