24
Vermont Castings Madison
1453
The Vermont Castings Majestic Products Company reserves the right to make changes in design, materials, specifications, prices and discontinue
colors and products at any time, without notice.
45
44
39
37
36
32
28
27
23
15
4
1
35
8
6 2
12
26
42
30
31
20
19
11
22
3
13
9
21
40
29 17 38
14
7
5
18
10
33
16
43
34
24
25
41

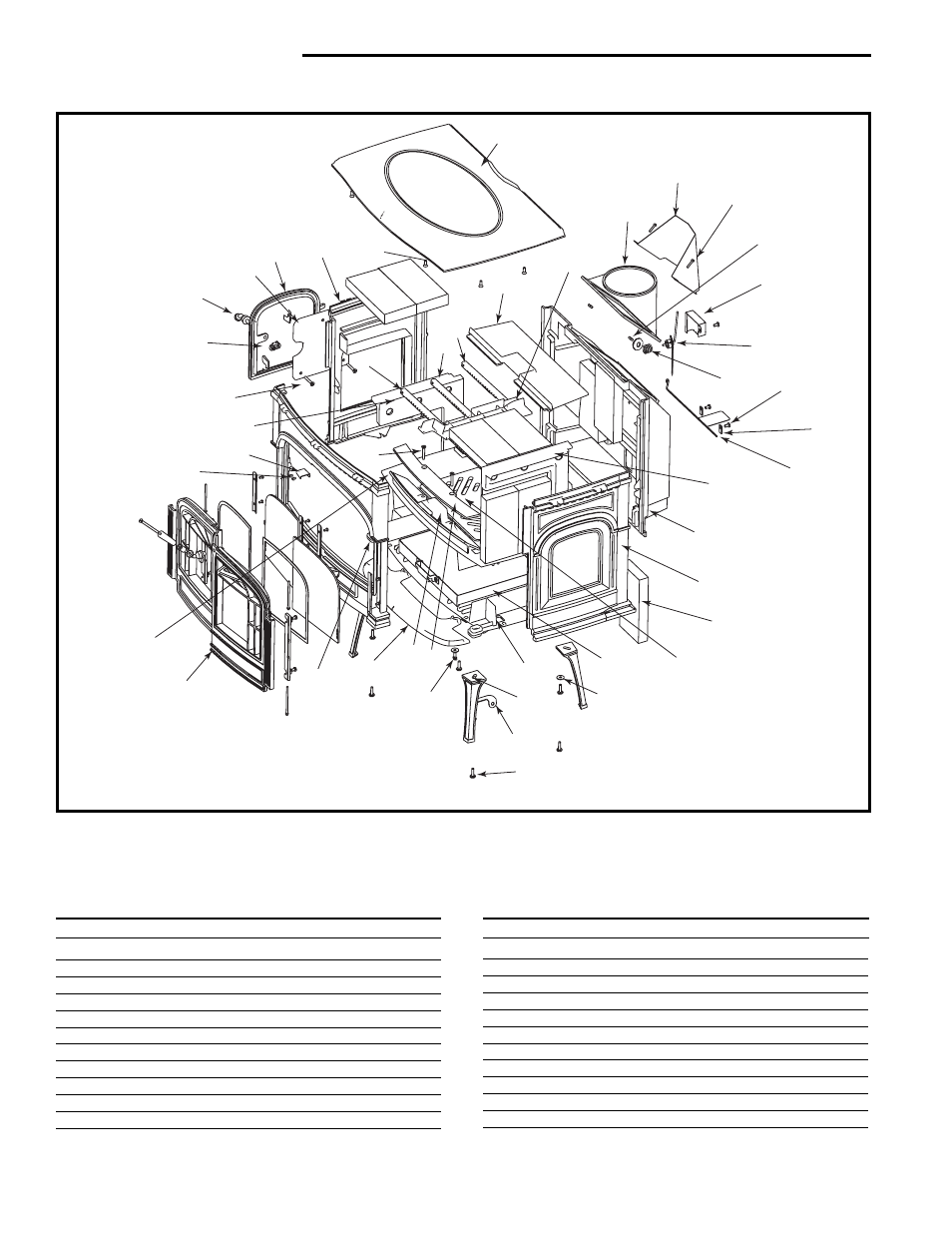

Madison Woodburning Stove
Model 1655
Item Description Part Number Item Description Part Number
1. Bottom, Outer 30000795
2. End, Left See Chart Pg. 25
3. Back 30000798
4. Secondary Manifold, Left 30000802
5. Front See Chart Pg. 25
6. Load Door See Chart Pg. 25
7. Ashlip See Chart Pg. 25
8. Door End Inner Shield 30000812
9. Firebrick (4) 1601103
10. Bottom, Inner 30000799
11. Primary Air Flap 30000778
12. Fireback 30000813
13. End, Right See Chart Pg. 25
14. Primary Air Manifold 30001491
15. Top See Chart Pg. 25
16. Exhaust Flue See Chart Pg. 25
17. Leg See Chart Pg. 25
18. Door Assy. See Page 25
19. Damper Tab 1601488
20. Pan Hd, PH 1/4-20 x 3/8” 1200993
21. Grate 30001445
22. Secondary Manifold, Right 30000801
