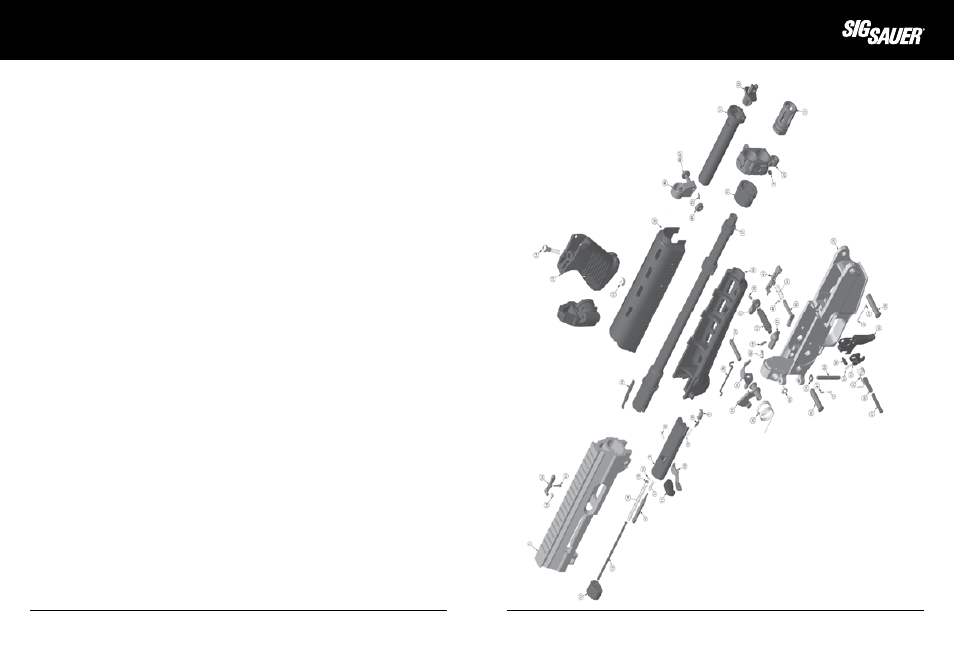

10.1 Parts diagram 10.0 Parts list
item description
1 receiver
2 Set Screw, gas Block
3 Bolt
4 firing Pin
5 firing Pin Spring
6 firing Pin retaining Pin
7 extractor
8 extractor Plunger
9 extractor Spring
10 charging Handle
11 charging Handle cover
12 Buffer
13 recoil Spring guide
14 recoil Spring
15 recoil Spring Washer
16 recoil Spring guide e-clip
17 Barrel
18 ejector
19 Barrel nut
20 gas Block
21 flash Suppressor
23 Trigger casing
24 Hammer Pivot Pin
25 Hammer
26 Hammer Spring
27 Trigger Pivot Pin
28 Trigger Bushing
29 Trigger assembly
30 Trigger Brace
31 Trigger Spring
32 Sear
item description
33 Sear Spring
34 disconnector
35 Safety Shaft
36 Safety detent Spring
37 Safety lever
38 Safety lever Spring Pin
39 front Takedown Pin
40 rear Takedown Pin
41 Takedown Pin Plunger
42 right Magazine catch
43 left Magazine catch
44 Magazine catch Pivot Pin
45 Magazine catch Spring
46 front Sight (optional)
47 front Sight Screw assembly
(optional)
48 front Sight Screw (optional)
49 front Sight nut (optional)
50 front Sight Spring Pin (optional)
51 Storage Tube
52 Storage Plug
53 Pistol grip
54 Pistol grip Screw
55 Pistol grip nut
56 Hand guards
60 Sling Plug
61 Take down Spring
