9.2.3 Function sequence when
shot is discharged
– Hammer 7 is released.
– Mainspring 15 raises hammer 7 via
hammer strut 13.
– Hammer 7 strikes firing pin 51.
– Firing pin 51 strikes the primer of
round P.
Functioning

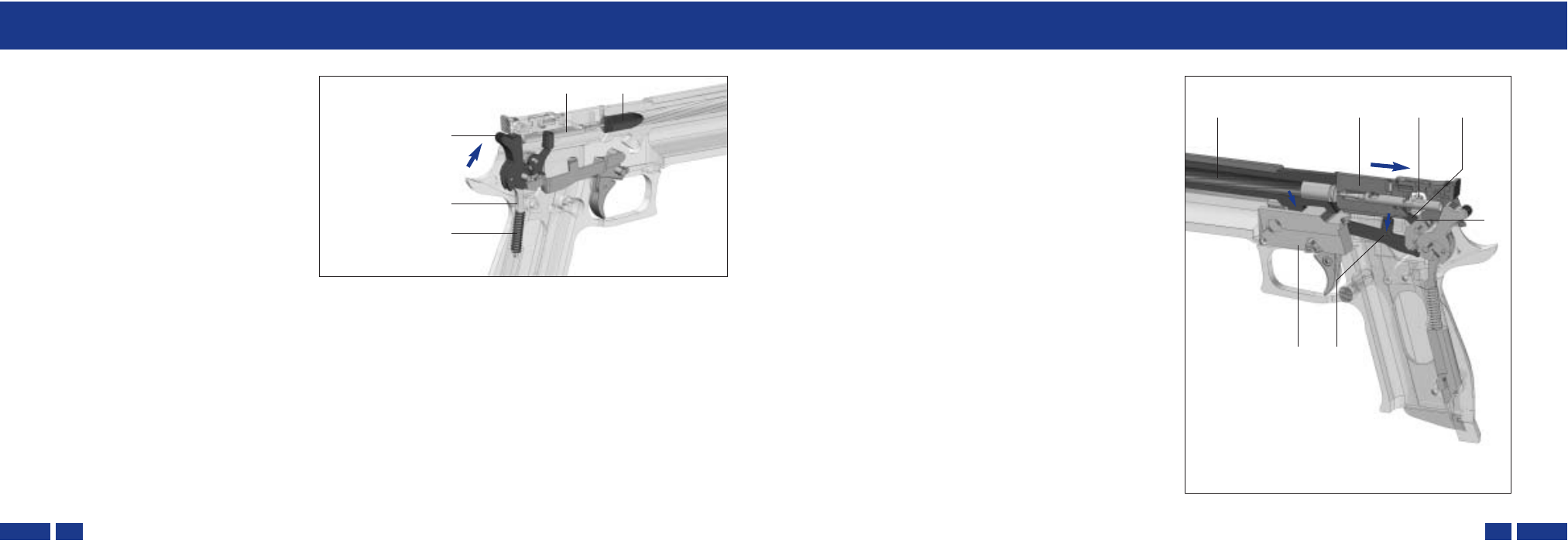

Fig. 18, round is discharged
Functioning
51
7
13
15
P
9.3 Function sequence with ejection of the
case and automatic reloading
9.3.1 Unlocking
– Blowback force generated with the discharge thrusts
the slide 50 to the rear.
– This separates the safety lever 5, the safety lock lever
32 and the safety lock 54. The firing pin lock is effective
again.
– Slide 50 depresses the trigger bar 24, thereby
disconnecting the trigger bar 24 from the safety
lever 5 and the safety lock lever 32.
– Barrel 57 is tilted down and unlocked by locking
insert 39.
Safety with slide position not fully closed:
If the slide 50 is not fully closed, the register between the
safety lever 5, safety lock lever 32 and safety lock 54 is
interrupted. The trigger bar 24 is also depressed by the
slide 50. Further trigger functions are consequently also
interrupted.
Fig. 19, barrel is tilted down and arrested
51 50 54 5
32
39 24
